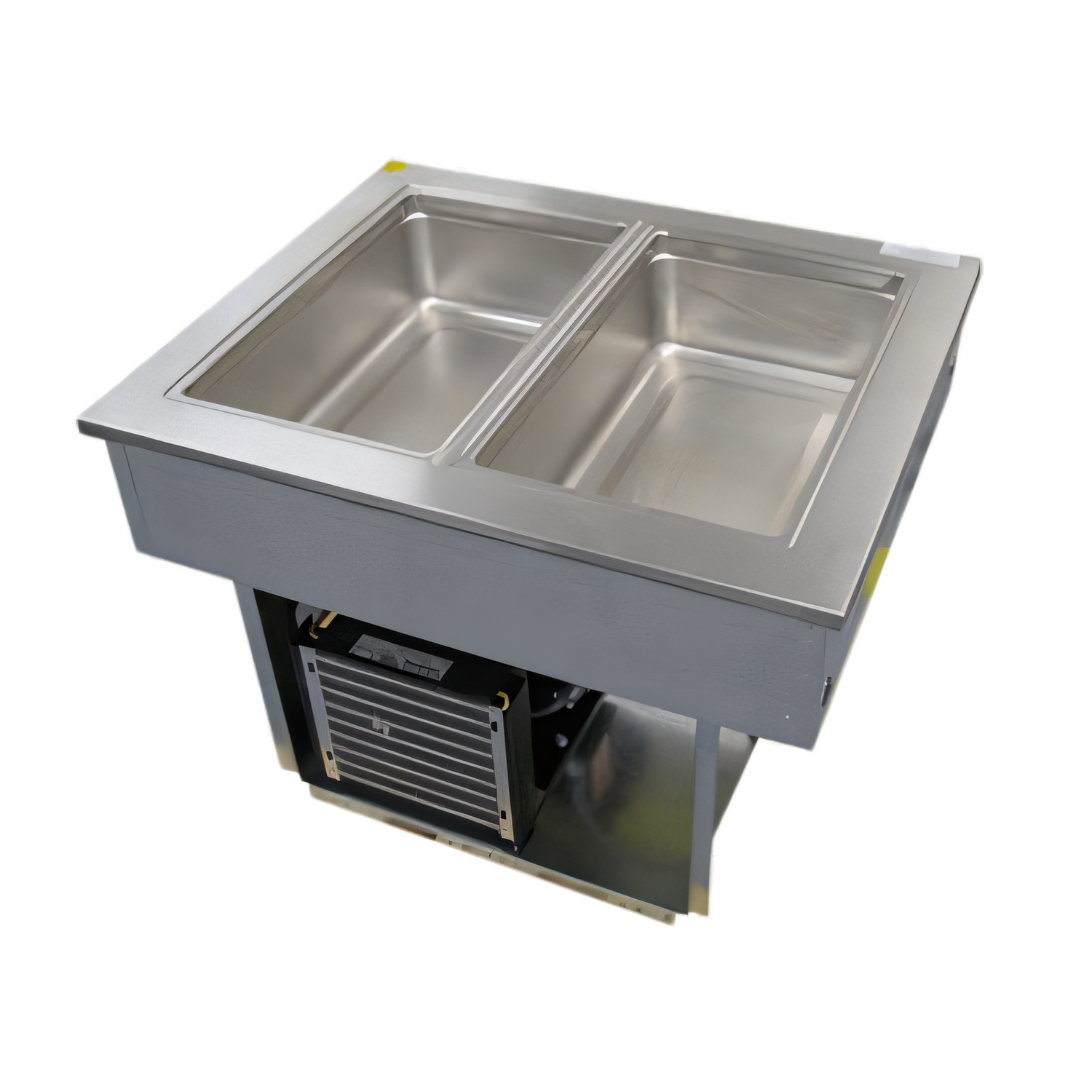

Delfield 8132-EFP LiquiTec Steam Tables & Food Wells
Product Description
The LiquiTec® 8132-EFP provides reliable cold holding performance without the need for bulky rims, ice, or remote refrigeration. This self-contained eutectic system features flush-mount 12" × 20" wells that surround each pan with eutectic fluid, making 100% contact on all five sides of the liner. This ensures products are kept between 33°F and 41°F, even in 86°F kitchens, while presenting pans level with the countertop for faster service and a cleaner look. The system utilizes R290 refrigerant for efficient, environmentally-friendly operation.
Why You'll Love It:
- The flush-mount design can hold two full-size 12" x 20" pans, either 4" or 6" deep (pans not included).
- The LiquiTec® eutectic fluid technology provides even, full-contact cooling on every surface of the well.
- The self-contained GreenGenius™ R290 refrigeration system with a 1/5 HP compressor means no remote system to install.
- The electronic temperature control and expansion valve ensure precise, energy-efficient operation.
- The stainless steel top and inner liner, along with a non-marring press-fit gasket, allow for a "drop-in and go" installation.
- The high-density, polyurethane insulation is Kyoto Protocol compliant, with no Ozone Depletion Potential (ODP) or Global Warming Potential (GWP).
- The 1/2" stainless steel drains with a copper manifold make clean-up and change-overs quick and easy.
- It is UL, cULus, and NSF certified for safety and sanitation.
- The 8' cord and NEMA 5-15P plug mean you can simply drop it in, plug it in, and start chilling.
Popular Options & Accessories:
- Single or double-service flip-up sneeze guards: These are transparent barriers that can be raised or lowered to protect food from contaminants.
- Remote or relocated compressor packages: The compressor, which is the cooling component, can be placed in a separate location away from the main unit.
- Drain shut-off valve: This allows you to easily stop the flow of water from the unit's drainage system.
- 220 V / 50 Hz electrical (special order): This electrical configuration is available for customers who need it, but it requires a special order.
- Additional adapter bars or custom pan sizes: You can get extra support bars or have the unit customized to fit pans of different dimensions.
Product Specs
| Specification | Value |
|---|---|
| Model | 8132-EFP |
| Pan Capacity | (2) full-size 12" × 20" pans, 4" or 6" deep |
| Cut-out Required | 30.75" × 25" (78 cm × 64 cm) |
| Well Depth | 6.25" (16 cm) |
| Product Temperature | 33 °F–41 °F (1 °C–5 °C) at 86 °F ambient |
| Refrigerant | R290 Hydrocarbon (GreenGenius™) |
| Compressor | 1/5 HP | 408 BTU load | 856 BTU system capacity |
| Electrical | 115 V / 60 Hz / 1 Ph, 2.4 A, NEMA 5-15P plug |
| Construction | Stainless steel top & liner, galvanized exterior housing |
| Drain | (2) ½" stainless drains w/ manifold |
| Included | Stainless steel louver, press-fit gasket, 8' cord & plug |
| Certifications | UL, cULus, NSF 7 |
| Warranty | 1-year parts & labor |
| Shipping Weight | 225 lb (103 kg) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Delfield |
| Brand Name | LiquiTec |
| Certifications | NSF, UL |
| Height | 24.24in |
| Width | 31.76in |
| Depth | 26.0in |
| Shipping Weight | 225.0lbs |
| Pan Qty | 2-pan |
| Style | self-contained refrigeration |
| Width (side - side) | 31 - 36 inches |
| Pan Size | full-size (12" x 20") |
| Finish | stainless steel top & inner liner, galvanized outer liner |
| Insulation | insulated |
| Layout | deep |
| Specifications | LiquiTec® Drop-In Cool Food Unit, 2-pan size, 4" or 6" deep pans flush with counter top, insulated pan, stainless steel inner liner & top, galvanized outer liner, self-contained Eutectic fluid refrigerated system, R290 Hydrocarbon refrigerant, 1/5 hp, (30-3/4" x 25" cutout required), cUL, UL, NSF |
