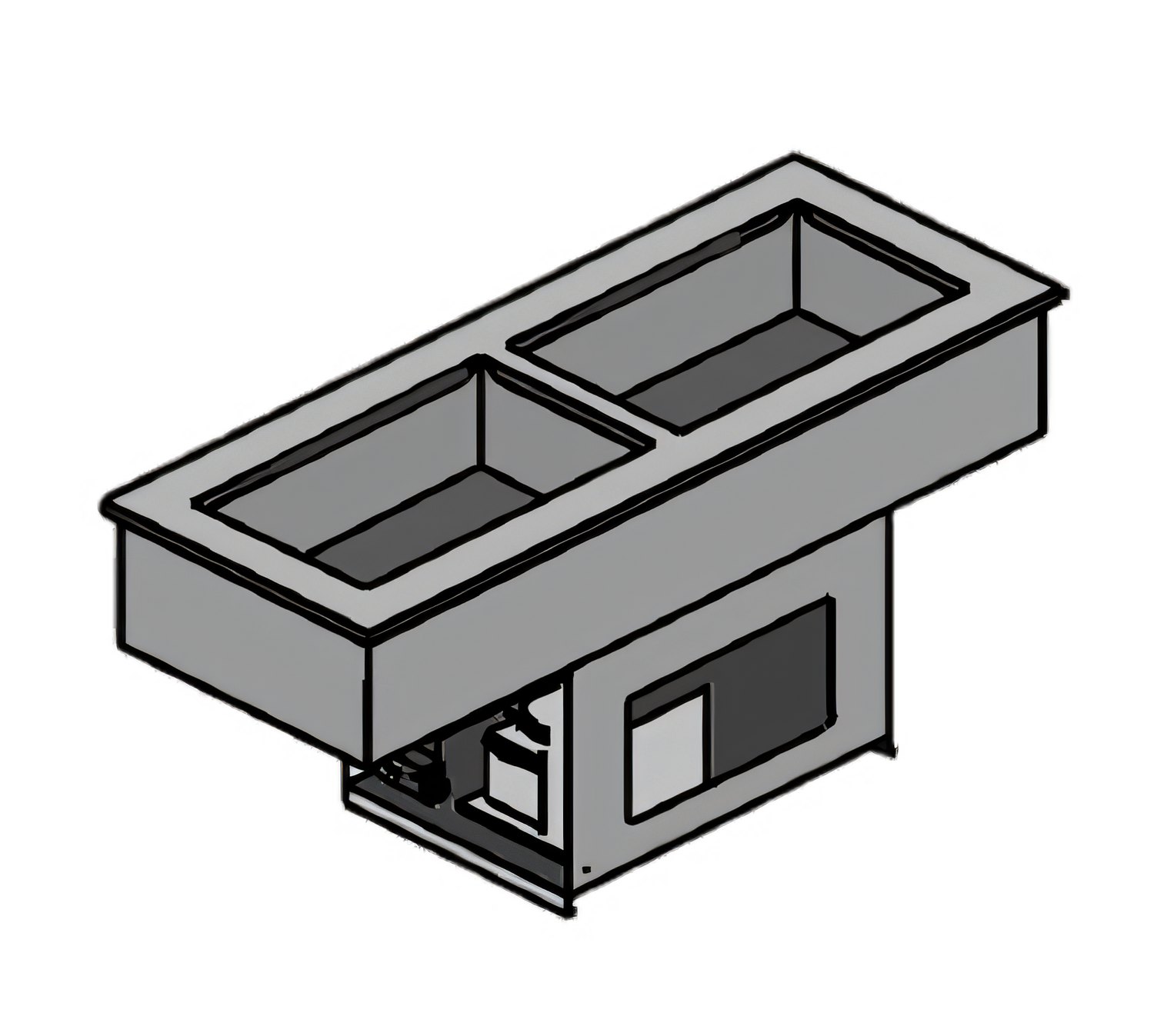

Delfield 8148-EFNP LiquiTec Steam Tables & Food Wells
Product Description
Delfield model 8148-EFNP – Self-contained eutectic fluid refrigeration. Designed for compact serving counters, the LiquiTec® 2-Pan Cold Food Unit keeps ingredients between 33°F and 41°F while displaying them flush with the countertop for eye-catching presentation and effortless service. Simply drop it into the pre-cut opening, plug it in and start chilling—no remote refrigeration or ice required. Verify clearances for ventilation and the cut-out size before cutting counters. Food pans, adapter bars and sneeze guards sold separately.
Features:
- The flush-mount design accepts two standard 12" × 20" pans (4" or 6" deep), creating a seamless and ergonomic work surface.
- The eutectic fluid refrigeration surrounds the well on all five sides, delivering even 360° cooling and faster pull-down compared to traditional wrapped coils.
- The unit is NSF 7 certified to maintain product temperatures between 33-41 °F (1-5 °C) in ambient conditions up to 86 °F (30 °C).
- The GreenGenius™ R290 refrigerant and high-density polyurethane insulation minimize energy use and environmental impact.
- The factory-mounted electronic temperature control eliminates guesswork, allowing you to simply set and serve.
- The one-piece stainless steel top and liner with a press-fit perimeter gasket allows for a true "drop-in and go" installation.
- The 1/2" stainless drain with a manifold simplifies cleaning between menu changes.
- The air-flow louver and 8 ft cord with a NEMA 5-15P plug make field wiring unnecessary.
- The cULus, UL, and NSF listings assure safety and sanitation compliance nationwide.
Product Specs
| Specification | Value |
|---|---|
| Pan capacity | 2 × 12" × 20" full-size food pans (not included) |
| Counter cut-out | 46 7⁄8" W × 17 1⁄4" D (1190 mm × 438 mm) |
| Well depth | 6.25" (159 mm) – pans sit flush with countertop |
| Temperature range | 33 °F – 41 °F (1 °C – 5 °C) |
| Refrigerant | R290 (environmentally friendly hydrocarbon) |
| Compressor | 1/4 HP, self-contained |
| Electrical | 115 V / 60 Hz / 1 Ph, 2.4 A, NEMA 5-15P |
| BTU load / system capacity | 408 BTU / 847 BTU |
| Construction | Stainless steel top & inner liner, galvanized outer liner, CFC-free polyurethane insulation |
| Shipping weight | ≈ 235 lb (107 kg) |
| Certifications | NSF 7, cULus, UL, R290 mark |
| Warranty | 1 year parts & labor (U.S. & Canada) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Delfield |
| Brand Name | LiquiTec |
| Certifications | NSF, UL |
| Height | 23.25in |
| Width | 47.66in |
| Depth | 18.0in |
| Shipping Weight | 235.0lbs |
| Finish | galvanized steel outer liner |
| Width (side - side) | 43 - 48 inches |
| Pan Qty | 2-pan |
| Pan Size | full-size (12" x 20") |
| Layout | narrow |
| Style | self-contained refrigeration |
| Insulation | insulated |
| Specifications | LiquiTec® Narrow Line Drop-In Cool Food Unit, 2-pan size, 4" or 6" deep pans flush with counter top, insulated pan, stainless steel inner liner & top, galvanized outer liner, self-contained Eutectic fluid refrigerated system, R290 refrigerant, 1/4 hp, (46-7/8" x 17-1/4" cutout required), cUL, UL, NSF |
