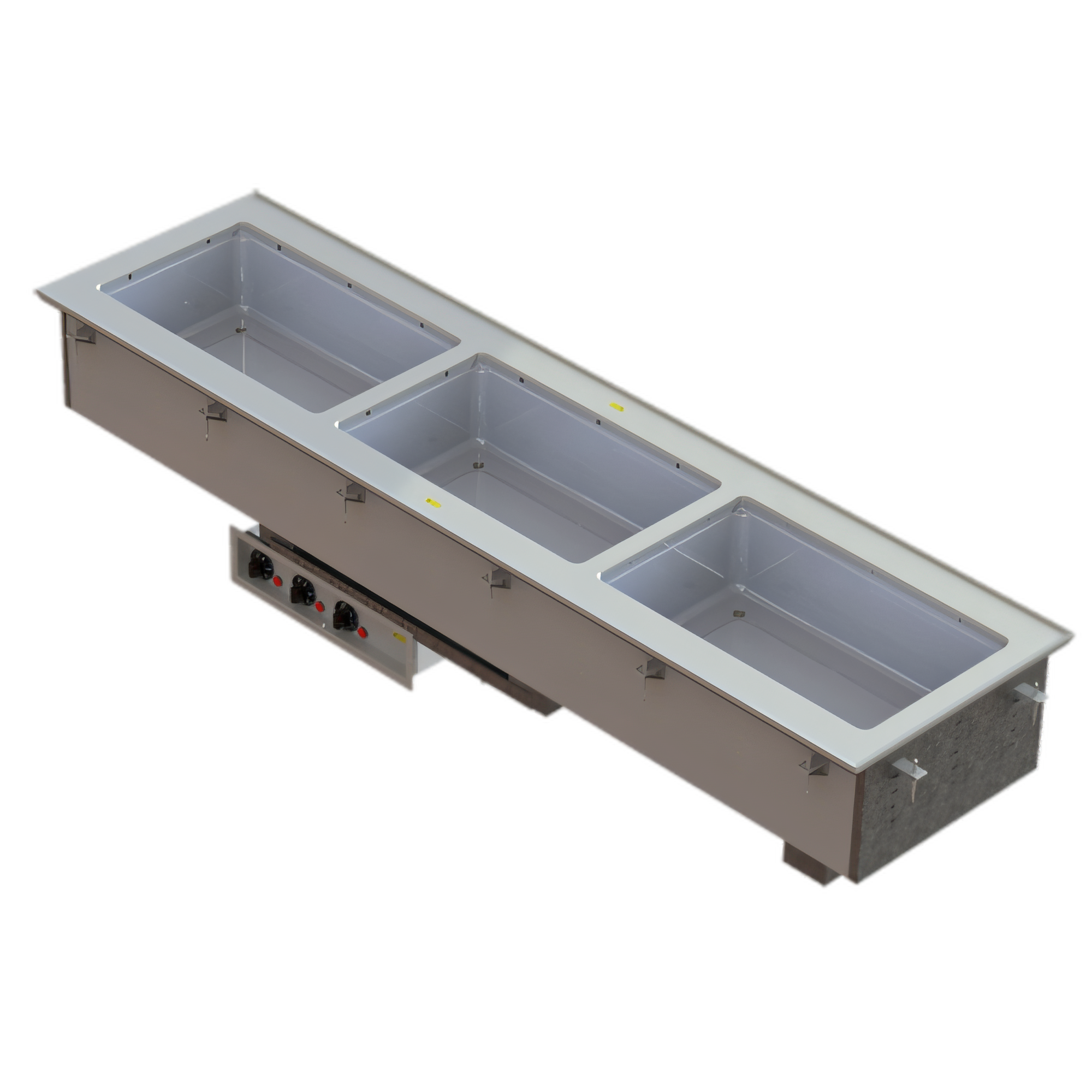

Vollrath 3664830HD Steam Tables & Food Wells

Product Description

Model 3664830HD features a 208-240 V power supply and includes auto-fill and manifold drain capabilities. This high-quality hot drop-in unit is made in the USA. It allows you to provide easy access to hot entrees while saving valuable counter space, thanks to its three-well design that rotates full-size pans sideways for a slim 18-inch presentation without compromising capacity or performance.

Features:

  • The unit has a narrow 18-inch footprint, allowing pans to be placed sideways for easy access during food service.
  • Each well has 1000 watts of power (3000 watts total) with thermostatic controls for precise temperature holding.
  • The integrated auto-fill system maintains the proper water level, and the 1-inch copper manifold drain with master shut-off valve speeds up the clean-up process.
  • The marine-grade 18-gauge 316 stainless steel top resists corrosion from steam, chemicals, and salt.
  • The stainless steel exterior housing and thick polyurethane foam insulation on all sides, including between the wells, ensure energy efficiency.
  • The full-perimeter drip edge keeps condensation off the counter.
  • The 4-foot tethered stainless steel control panel has individual power lights and temperature dials for each well.
  • The unit ships ready to install, with mounting clips, a gasket, and a 6-foot cord with a NEMA 6-20P plug, so no hard-wiring is required.
  • The zero-clearance installation is UL, CUL, and NSF 4 listed.

Features:

  • The sheet pan adapter, item 19186, allows you to convert one well in the unit to fit a standard 18 x 26 inch sheet pan.
  • The unit also includes adapter bars that can be used to accommodate fractional-sized steam pans.

Product Specs

Specification Value
Pan capacity (3) full-size 12 in. × 20 in. pans, up to 6 in. deep
Well size 20 in. × 12 in. opening, 8 in. deep drawn marine-grade well
Heat source / Controls 3000 W (1000 W × 3) – thermostatic, wet operation
Voltage & Amps 208-240 V / 60 Hz / 1-ph • 10.8 – 12.5 A
Electrical connection 6 ft cord with NEMA 6-20P straight-blade plug
Water system Auto-fill (field-connect to potable water) & 1 in. copper manifold drain;½ in. individual ball valves per well
Overall dimensions 66-7/8 in. L × 18 in. W
Counter cut-out 66-1/16 in. L × 17-1/4 in. W · 7/8 in. corner radius
Countertop thickness Up to 3 in. (mounting clips supplied)
Construction 18 ga / 316 stainless steel top · stainless steel housing · polyurethane insulation
Certifications UL, CUL, NSF 4
Country of origin USA
Warranty 2-year limited (see VollrathFoodservice.com for full policy)

Features

Specification Value
Manufacturer Vollrath
Certifications NSF, UL, Made in USA
Height 21.5in
Width 66.88in
Depth 18.0in
Shipping Weight 160.0lbs
Style individual pans
Drain with drain
Controls thermostatic controls
Wet or Dry operation wet
Pan Capacity (3) full size (12" x 20")
Insulated or Non-Insulated insulated
Construction stainless steel construction
Specifications Short Sided Hot Well, Drop-In, (3) pan, thermostatic controls, autofill & manifold drain, 3000 watts, 208-240v/60/1-ph, 10.8-12.5A, NEMA 6-20P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 66-7/8" x 18", cutout dimensions 66-1/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
NSF
NSFNSF Certified – This product meets NSF International food safety and sanitation standards for commercial foodservice equipment.
UL
ULUL Listed – This product has been independently safety tested and certified by Underwriters Laboratories.
Made in USA
Made in USAMade in USA – This product is manufactured in the United States of America.
