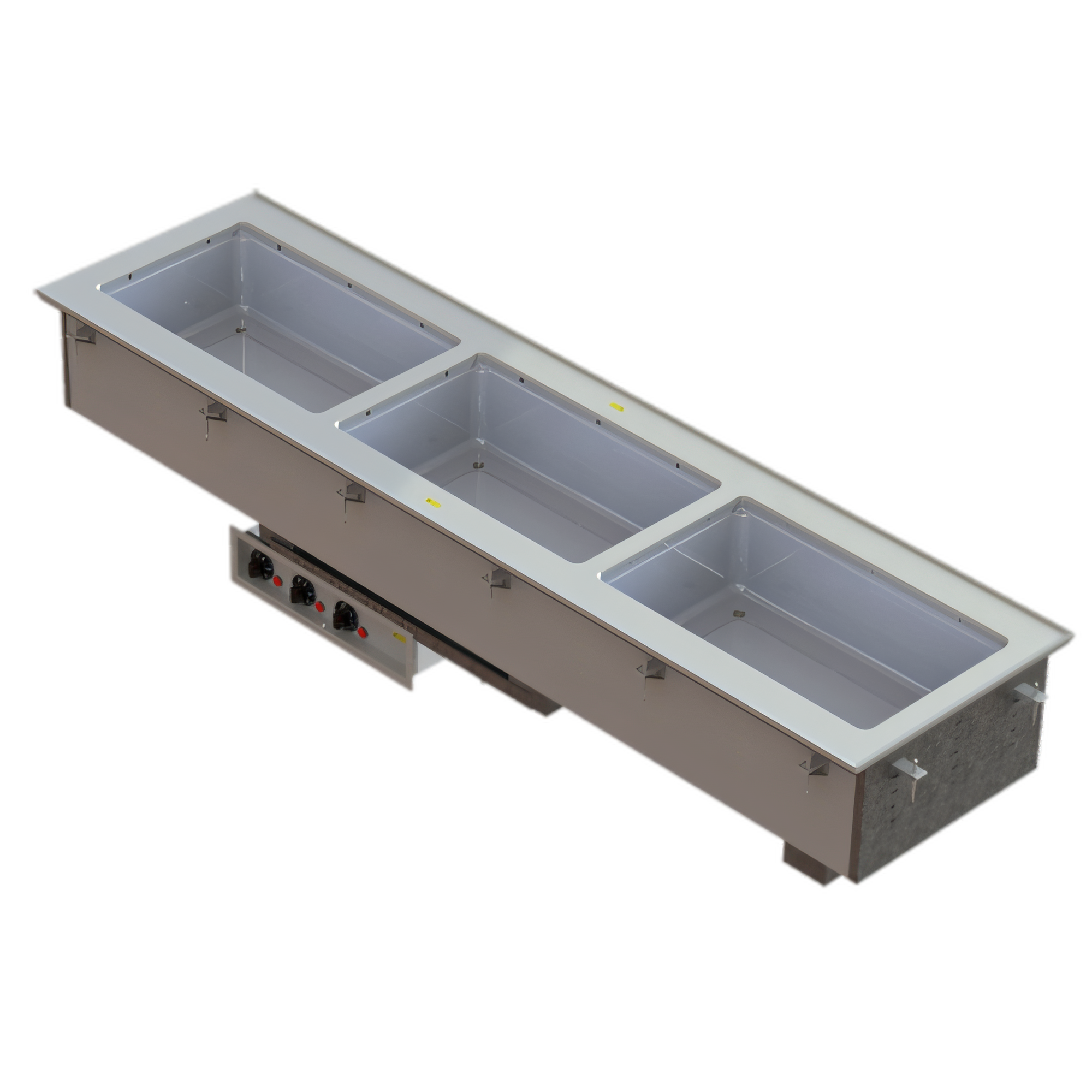

Vollrath 36648HD Steam Tables & Food Wells
Product Description
Bring reliable steam-table performance to your counters with limited front-to-back space. Vollrath's 36648HD rotates three full-size pans sideways, giving your staff a narrower 18-inch reach while still providing the pan capacity needed for high-volume service. Made with marine-grade 316 stainless steel and featuring thermostatic controls, this plug-in unit operates on 208-240 V power.
Why you'll love it:
- The space-saving layout turns the pans sideways for an 18-inch presentation depth, making the best use of your counter space.
- The marine-grade 18-gauge/316 stainless steel wells and top are resistant to harsh cleaning chemicals and salt air, ensuring long-lasting durability.
- Independent thermostatic controls with indicator lights allow for precise temperature holding, keeping your food at the perfect serving temperature.
- The full-perimeter drip edge and included gasket help prevent condensation from dripping onto your countertops, keeping your work area clean and dry.
- Standard 1/2-inch drains with individual ball valves, along with the included drain plug, make cleaning and maintenance a breeze.
- The 6-foot cord with a NEMA 6-20P plug means no hard-wiring is required, making installation simple.
- Thick polyurethane insulation on all sides, including between the wells, helps to minimize energy loss and maintain optimal temperatures.
Pan capacity:
- The oven can accommodate up to 3 full-size pans, each measuring 20 inches by 12 inches and up to 6 inches deep.
- The oven also accepts fractional pans when used with adapter bars, which is the recommended approach for using fractional pans.
- The oven has an 8-inch (20.3 cm) well depth, providing a generous water reservoir to ensure even steam distribution.
Installation & operation:
- The product has a zero-clearance drop-in design, and includes mounting clips that can be used for counters up to 3 inches thick.
- This product is for indoor use only. The room temperature and HVAC system can affect the holding performance of the product.
- To comply with NSF standards and ensure even heating, maintain moist heat by adding water to each well.
Product Specs
| Specification | Value |
|---|---|
| Model | 36648HD |
| Wells / controls | 3 wells | independent thermostatic |
| Total wattage | 3 kW (1000 W per well) |
| Electrical | 208–240 V / 60 Hz / 1-phase | 10.8–12.5 A | NEMA 6-20P |
| Overall dimensions | 66-7/8 in. L × 18 in. W |
| Cutout dimensions | 66-1/16 in. L × 17-1/4 in. W | 7/8 in. corner radius |
| Well interior (each) | 20 × 12 in. | 8 in. deep |
| Construction | 316 marine-grade stainless top & wells, stainless exterior housing, foam-insulated |
| Controls panel | Remote stainless panel on 4 ft (122 cm) tether for flexible mounting |
| Agency approvals | UL, cUL, NSF 4 |
| Origin / warranty | Made in USA | 2-year limited (see vollrathfoodservice.com for details) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, UL, Made in USA |
| Height | 15.0in |
| Width | 66.88in |
| Depth | 18.0in |
| Shipping Weight | 165.0lbs |
| Style | individual pans |
| Pan Capacity | (3) full size (12" x 20") |
| Insulated or Non-Insulated | insulated |
| Controls | thermostatic controls |
| Wet or Dry operation | wet |
| Construction | stainless steel construction |
| Drain | with drain |
| Specifications | Short Sided Hot Well, Drop-In, (3) pan, thermostatic controls, standard drains, 3000 watts, 208-240v/60/1-ph, 10.8-12.5A, NEMA 6-20P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 66-7/8" x 18", cutout dimensions 66-1/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy) |
