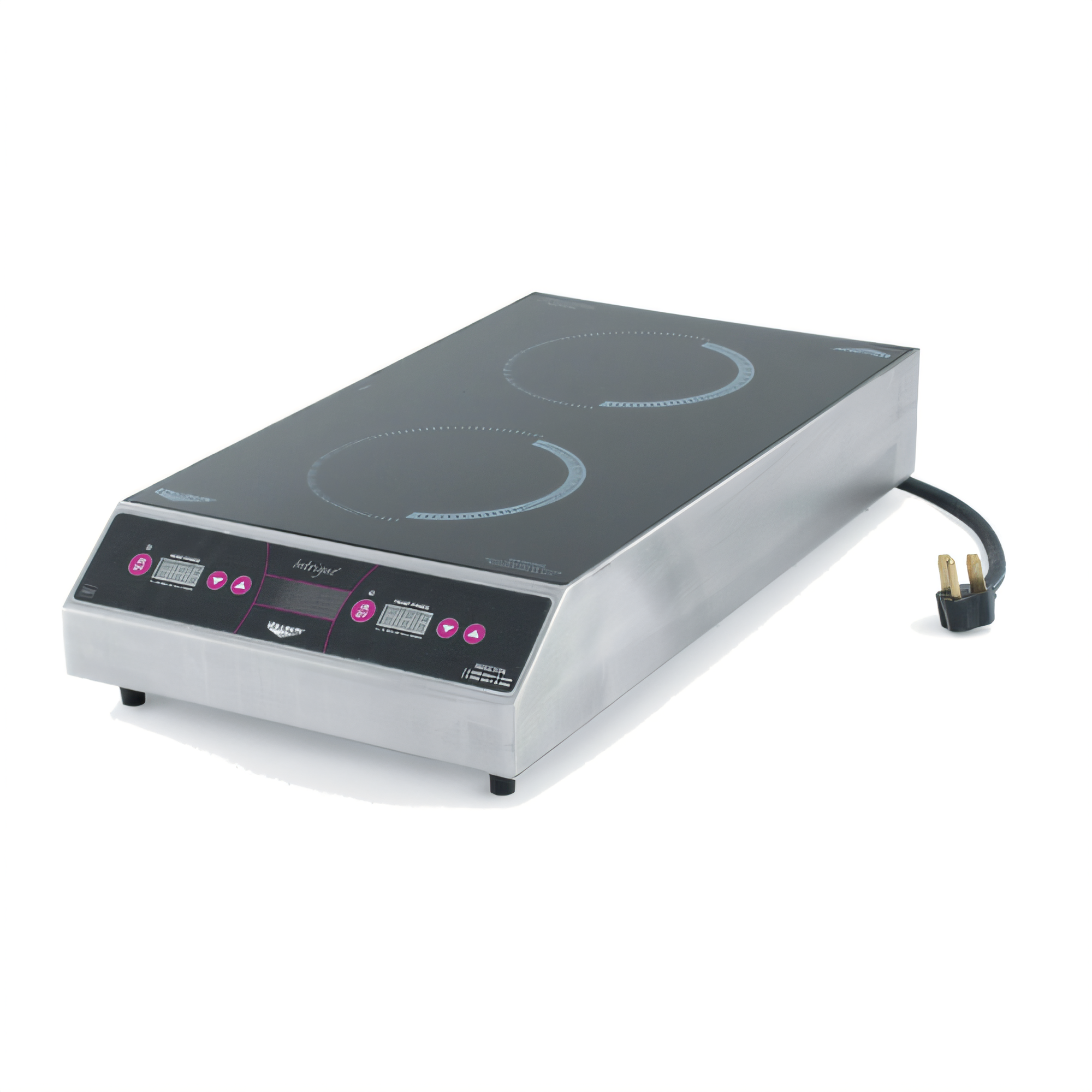

Vollrath 69507 Ultra Induction Ranges
Product Description
The Vollrath Ultra Series 69507 induction range maximizes speed, precision, and kitchen efficiency. This heavy-duty, front-to-back dual-hob unit delivers up to 3.5 kW of instant, flameless power per hob in a compact 15 ⅞″ footprint, making it ideal for sauté pans, saucepots, and small stockpots in high-volume commercial operations.
Why You'll Love It:
- Precise temperature control with 100 power settings for ultra-responsive cooking.
- Continuous-duty induction circuitry designed for nonstop, high-volume cooking.
- Energy-efficient with industry-leading 90% efficiency, saving you money and keeping your kitchen cooler.
- Durable 18-gauge 304 stainless-steel chassis with an easy-to-clean vitro-ceramic top.
- Dual oversized cooling fans that extend the component life, even in demanding environments.
- Intuitive sloped control panel with durable, flat-touch keys and a bright digital display for easy use.
- Comprehensive safety features, including: - Over-heat and empty-pan shut-off - Pan auto-detection and small-article detection - Audible and visual "HOT" surface indicator
Installation & Clearance:
- Make sure there is 4 inches (10 cm) of space behind the appliance and 1 inch (2.5 cm) of space underneath for proper ventilation.
- The ambient (surrounding) air temperature should not exceed 110°F (43°C) while other kitchen equipment is in use.
- Use only flat-bottomed cookware that is compatible with induction cooking, and between 5.75 inches (14.6 cm) and 14 inches (35.5 cm) in diameter.
Product Specs
| Specification | Value |
|---|---|
| Item # / Model | 69507 / Ultra Series Dual-Hob |
| Configuration | Countertop, front-to-back hobs (2) |
| Exterior Material | 18-ga 304 stainless steel |
| Cooktop Surface | Smooth vitro-ceramic glass |
| Max Pan Size | 12″ / 30.5 cm (each hob) |
| Dimensions (W × D × H) | 15.87″ × 29.75″ × 5.81″ (40.3 × 75.6 × 14.8 cm) |
| Voltage / Phase | 208–240 V, 50/60 Hz, single-phase |
| Power Output | 3.0 – 3.5 kW per hob (3500 W max) |
| Current Draw | 29.2 A |
| Plug Type | NEMA 6-50P (6 ft cord included) |
| Efficiency | ≈ 90 % |
| Shipping Weight | 63.9 lb / 29 kg |
| Certifications | UL, NSF, cULus, FCC Part 18 |
| Warranty | 2-year parts & labor (see Warranty tab for details) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Brand Name | Ultra |
| Certifications | NSF, cULus, FCC |
| Height | 5.75in |
| Width | 29.75in |
| Depth | 15.88in |
| Shipping Weight | 45.0lbs |
| Wattage per Burner | 3000 - 5000 watts |
| Number of Burners | 2 burners |
| Specifications | Ultra-Series Induction Ranges, Ultra-Series countertop front-to-back dual-hob induction range, countertop, 15.87"W x 29.75"D x 5.81"H, stainless steel, 208-240 voltage, 3500 watts, 29.2 amps, NEMA 6-50P plug, FCC, UL, NSF, CUL |
