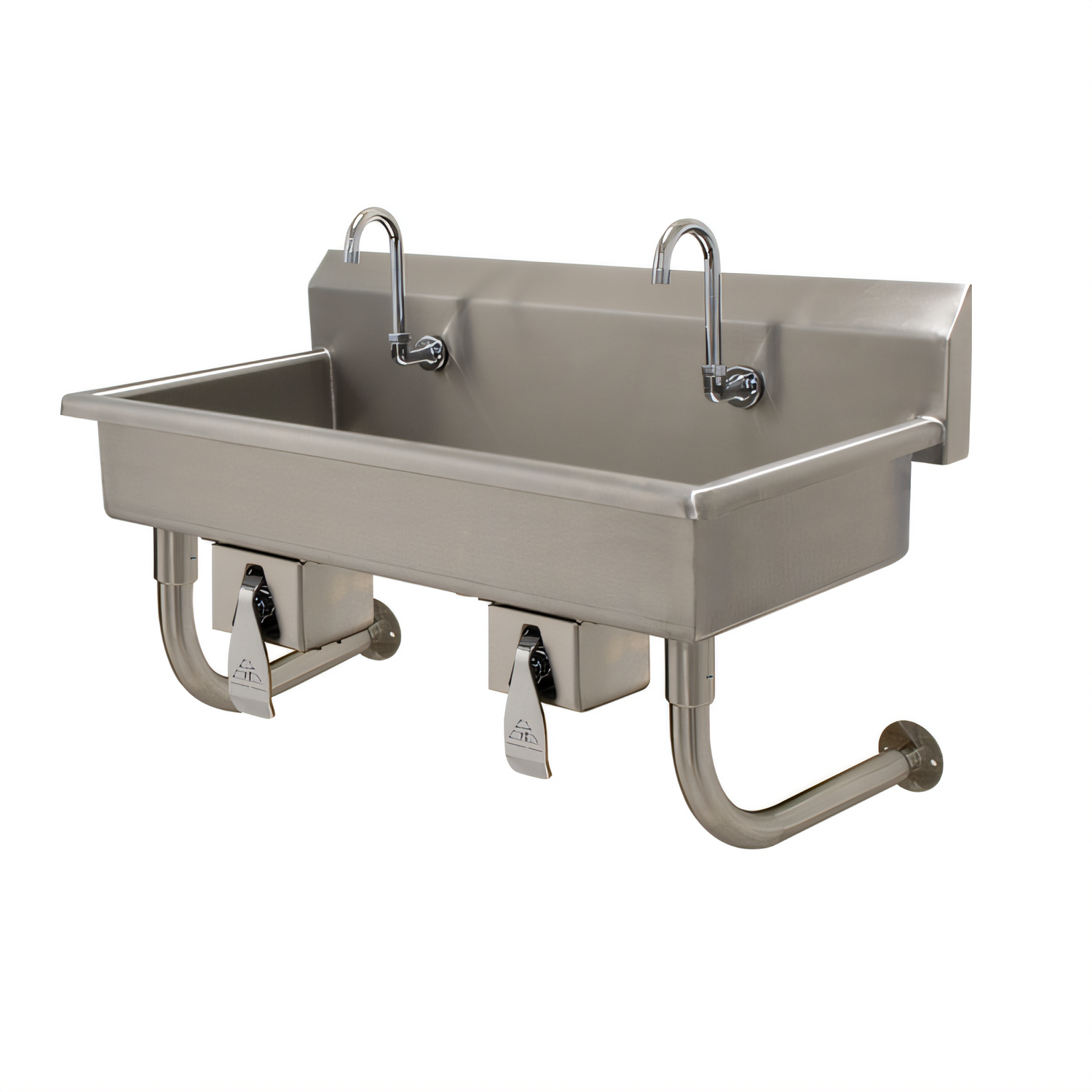

The Advance Tabco Model FC-WM-40KV is a 2-station, wall-mounted sink designed for high-volume hand-washing in commercial kitchens, laboratories, and industrial settings. With a compact 40-inch footprint, it provides hands-free hygiene, heavy-duty durability, and full NSF compliance. The specifications of this product are subject to change without notice as Advance Tabco continually improves their offerings.

Highlights:

• Hands-free knee valve activation lets you operate the sink without touching contaminated surfaces.
• Two gooseneck spouts with a single-hole splash-mount configuration.
• 8-½″ high backsplash to protect walls and contain splashes.
• 16 gauge, type 304 stainless steel sink body with a satin finish.
• TIG-welded seams blended for a smooth, easy-to-clean surface.
• Wall-mount "Z" brackets and tubular stainless steel support braces for unobstructed floor clearance.
• Includes a 3-½″ K-6 rear basket drain and mounting hardware.
• NSF certified for use in foodservice hand-wash stations.

What's Included:

• A 40-inch sink with two stations for washing dishes or hands.
• Two knee valves that mix hot and cold water to provide the desired water temperature.
• Two gooseneck-style faucet spouts for easy access to the sink.
• A 3.5-inch rear basket drain to efficiently remove water from the sink.
• Two stainless steel "Z" brackets to securely mount the sink to the wall.
• Tubular stainless steel wall supports and all necessary installation hardware.

Installation Notes:

• Mount the brackets to a wall with wooden studs or made of masonry at a height of 42-½ inches from the floor to the top of the bracket.
• Connect the hot and cold water supply lines (⅜ inch diameter) to the knee valves, and then run the outlet lines to each spout.
• The installer is responsible for ensuring the installation complies with local plumbing codes.
