Descripción

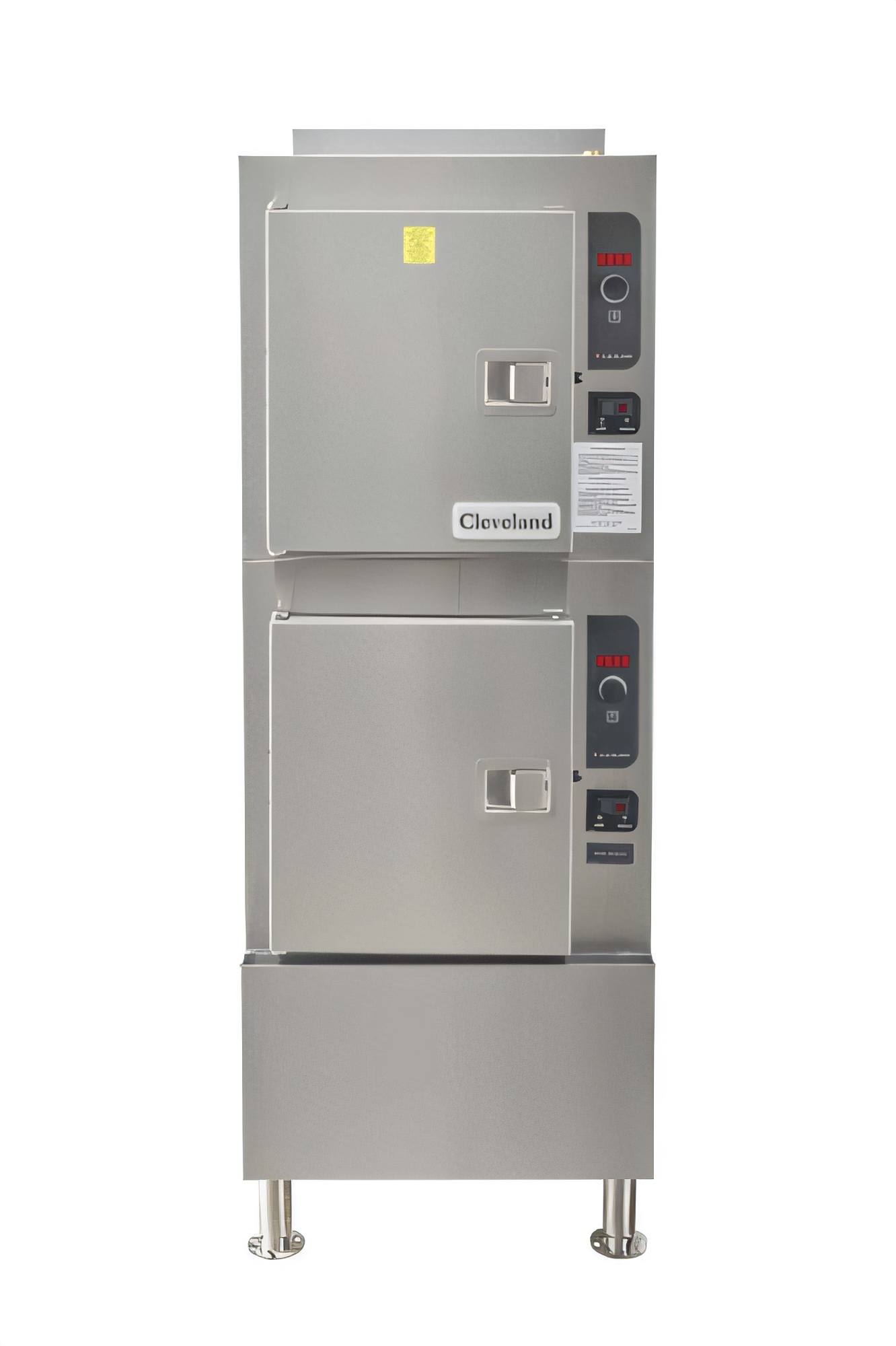

Cleveland Range 24CGA10NEZTQS Quick Ship Steamers (Countertop & Floor)
Product Description
The Quick Ship SteamCraft Ultra 10 is a natural gas, two-compartment pressureless convection steamer that delivers powerful 125,000 BTU performance. It provides high-volume, high-speed steaming without the wait, accommodating up to ten hotel pans while fitting compactly under a standard exhaust hood. The 80% efficient PowerPak steam generator, intuitive Easytimer controls, and "cool-to-the-touch" doors help keep your kitchen productive, safe, and profitable from the start.
Features:
- Instant steam is ready when you need it. The 7.5-gallon generator stays hot in standby mode, so you can start cooking immediately.
- Efficient two-zone design. The unit uses only 75,000 BTU when one compartment is active, saving fuel during slower periods.
- Easy Timer with SureCook™ load compensation. This feature automatically adjusts for cold-food loads and counts down from 0 to 99 minutes in minutes and seconds.
- Pressureless convection system. Exclusive brass steam jets provide high-velocity steam without the need for fans.
- Simple maintenance. The top-mounted cleaning port, automatic blow-down, and water-level probe rinse cycle help fight scale buildup.
- Operator-safe doors. The free-floating inner panel stays cool, and the slam-latch locks tight yet opens easily when the cycle ends.
- Adjustable, sturdy legs. The NSF 6-inch adjustable legs with flanged feet allow you to bolt the unit level on uneven floors.
- Durable, all-stainless construction. The 14-gauge generator shell, type 430 exterior, and coved-corner compartments are built to withstand the toughest kitchen environments.
Features:
- The gas supply should be a ¾ inch NPT connection and operate at 4 to 14 inches of water column for natural gas.
- The water pressure must be between 35 and 80 pounds per square inch, and the water temperature should be between 40 and 104 degrees Fahrenheit. Follow the water quality guidelines set by the city of Cleveland.
- A dedicated 15-amp, non-ground fault circuit interrupter (non-GFCI) circuit is required. Cleveland recommends hard-wiring the unit rather than using a plug.
- The appliance must be installed under a ventilation hood with adequate make-up air to ensure proper operation.
Features:
- You can request a free factory-authorized performance start-up and water quality test when you buy the product.
- You can purchase extended warranty and water-filter packages at the time of purchase.
Product Specs
| Specification | Value |
|---|---|
| Compartments | 2 pressureless |
| Cafeteria pans per compartment | 5 × 12 in × 20 in × 2.5 in deep |
| Total pan capacity | 10 pans (or 26 × 4 in deep with staggered loading) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Brand Name | Quick Ship |
| Height | 65.5in |
| Width | 24.0in |
| Depth | 33.0in |
| Shipping Weight | 565.0lbs |
| Interior Finish | stainless steel |
| Pan Capacity per Compartment | (5) 12"x20"x2-1/2" deep |
| Type | 1 steam generator |
| Width (side - side) | 24" |
| Specifications | (Quickship) Steamcraft® Ultra 10 Convection Steamer, pressureless, natural gas, (2) compartments, (5) 12 x 20 x 2 1/2 pans, , easytimer control, SureCook load compensating thermostat, descale indicator, left-hand hinged door, controls on right, steam shut-off switch, electronic spark ignition, (1) standard treated & tap water connection, stainless steel construction, 6" adjustable legs with flanged feet, 115v/60/1-ph, 125,000 BTU |
