Descripción

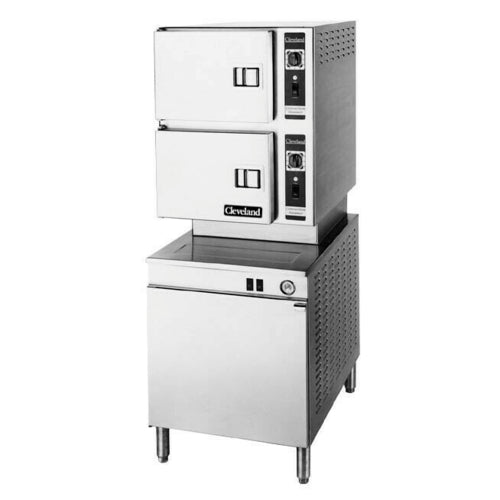

Cleveland Range 24CGM200 Classic Convection Steamers (Countertop & Floor)
Product Description
The Model 24-CGM-220 pressureless steamer from Cleveland delivers fast, even heating for quickly preparing a variety of foods like vegetables, seafood, and rice. With a powerful 220,000 BTU heating capacity, this commercial-grade steamer provides the dependable performance required in busy kitchen environments.
Key benefits:
- The pressureless, forced-convection design allows you to open the door at any time without stopping the cooking cycle.
- Each of the two independent compartments can hold 3 full-size 12 × 20 × 2 ½" pans, for a total of 6 pans.
- The exclusive Convection Jet system produces high-velocity steam without the use of mechanical fans, resulting in quieter operation.
- The Instant Steam Standby feature keeps the boiler at the optimal temperature, so you can load and cook immediately.
- The 60-minute mechanical timer and manual bypass switch provide continuous steaming options.
- The left-hinged "Cool-to-the-Touch" doors have a slam-latch and reversible gasket to ensure a tight, safe seal.
- The NickelGuard™ 15 psi steam boiler with electronic spark ignition, auto-fill, auto-drain, and mineral-purge cycles reduces scale buildup and maintenance requirements.
- The coved-corner type-304 stainless cooking cavity with removable slide racks is easy to clean.
- The cold-water condenser in each compartment keeps the steam dry and helps maintain a comfortable kitchen temperature.
- The front-serviceable solid-state controls monitor water level, low-water cutoff, and safety circuits.
- The heavy-duty FSS stainless steel base frame is built to withstand demanding environments.
Built-in safety & maintenance:
- The boiler has an automatic low-water cutoff feature with a secondary probe, which is compliant with CALG (California Assembly Line Gauge) regulations. This helps prevent the boiler from running without enough water, which could be dangerous.
- The boiler is equipped with a high-limit pressure switch and a 15 psi safety valve. These safety features help prevent the boiler from building up too much pressure, which could lead to a potentially hazardous situation.
- The boiler has an automatic boiler blowdown system with a water-jet rinse. This helps keep the drain clear and prevents buildup of sediment or debris, which can help maintain the boiler's efficiency and lifespan.
- The boiler has a front-mounted steam pressure gauge and a gas pressure regulator. This allows the user to easily monitor and adjust the boiler's pressure and gas supply, which is important for safe and efficient operation.
Perfect for:
- K-12 and university cafeterias, where you need to serve large numbers of students and staff efficiently.
- Healthcare and long-term-care facilities, which require reliable meal service for patients and residents.
- Corporate & government dining, where you need to cater to the dining needs of employees and visitors.
- High-volume restaurants and banquet operations, where you need to handle large orders and events with ease.
Product Specs
| Specification | Value |
|---|---|
| Compartments | 2, independent & pressureless |
| Total pan capacity | (6) 12" × 20" × 2 ½" pans |
| Gas input | 220,000 BTU/hr (natural or LP) |
| Steam boiler | 15 psi NickelGuard™ coated, electronic spark ignition |
| Controls | Solid-state; 60-min timer, manual bypass, main power & steam shut-off |
| Electrical (controls) | 115 V, 60 Hz, 1 ph, 5 A |
| Construction | 14-ga type-304 stainless cavity & exterior, FSS stainless base frame |
| Dimensions (W × D × H) | 24" cabinet (30" overall) × 43" × 78" |
| Shipping weight | Approx. 617 lb / 280 kg |
| Required clearances | 6" sides & rear (12" on control side if adjacent wall/equipment > 30"H) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Brand Name | Classic Convection |
| Height | 62.0in |
| Width | 23.62in |
| Depth | 37.0in |
| Shipping Weight | 617.0lbs |
| Width (side - side) | 24" |
| Pan Capacity per Compartment | (3) 12"x20"x2-1/2" deep |
| Type | 1 steam generator |
| Interior Finish | stainless steel |
| Specifications | Pressureless Convection Steamer, gas, 24", (2) compartment, (3) 12 x 20 x 2-1/2" pans/per compartment capacity, solid state controls, 60-minute mechanical timer & manual (continuous steaming) bypass switch, left-hand hinged door, controls on right, instant steam standby mode, auto drain, steam shut-off switch, stainless steel construction, FSS stainless steel base frame, 220,000 BTU |
Documents
CAD Files
Purchase Notice
Pricing, availability, and product details are subject to change without notice. 24/7 Restaurant Equipment is not responsible for typographical errors or omissions. Freight charges may apply where applicable.
