Descripción

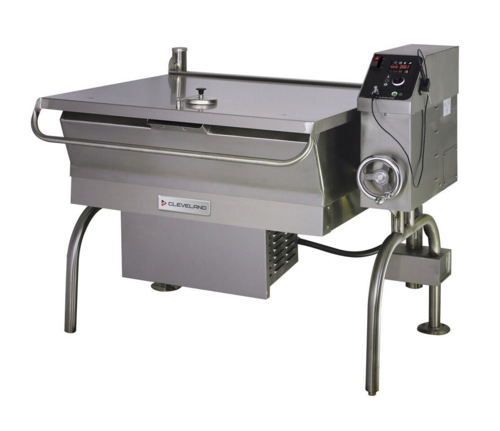

Cleveland Range SGL40T1 PowerPan Braising Pans & Tilt Skillets
Product Description
The Cleveland PowerPan™ is a versatile and efficient cooking appliance that can handle a wide range of culinary tasks, from batch-cooking chili and soups to searing, braising, and shallow-frying. Its open-frame design, bead-blasted 5/8" stainless cooking surface, and smooth hand-tilt gearbox make high-volume production a breeze, even for a single user. For added digital precision, the optional easyDial control features a core-temperature probe, time/temperature display, and built-in diagnostics. For more information on warranty and coverage, please contact the manufacturer.
Top Features:
- Large 40-gallon (150 L) capacity, enough for up to 1,280 four-ounce servings per batch.
- Dual power settings: 160,000 BTU (Standard) or 200,000 BTU (High) for quick heat-up and recovery.
- Forced-air gas burner with electronic spark ignition for reliable starts.
- Stainless steel clad bottom with bead-blasted finish that resists warping and sticking.
- 10-degree "cook-in-tilt" lets you sauté, reduce, or drain while the heat stays on.
- Manual hand-crank tilt with sealed, permanently-lubricated gearbox (full 90-degree pour).
- Spring-assisted stainless steel cover with adjustable vent and full-width handle.
- Laser-etched gallon and liter markings for precise portion control.
- Low 35-inch rim height for ergonomic loading, stirring, and cleaning.
- Splash-proof console with solid-state thermostat (140 °F – 425 °F) and LED "Heat On" indicator.
- Open leg frame for easy floor access and hose-down wash-downs.
- Plug-and-play 115 V controls, no need for a dedicated electrician.
Durability You Can Trust:
- The product has 12-gauge, 304 stainless steel pan walls and chassis, providing strong and long-lasting construction.
- The product has been certified for gas safety by CE, NSF, and CSA, ensuring it meets industry safety standards.
Popular Factory Options:
- Power tilt with manual override feature allows you to easily adjust the angle of the equipment.
- 2-inch tangent draw-off valve located on the left side provides a convenient way to access and control the flow of liquids.
- Choose from single or double pantry faucet packages to suit your specific needs.
- Vegetable steamer baskets and poaching pans provide versatile cooking options.
Product Specs
| Specification | Value |
|---|---|
| Capacity | 40 gal / 150 L |
| Heating Source | Natural or LP gas, forced-air Power Burner |
| Input Rate | 200,000 BTU (h) • 160,000 BTU (l) |
| Temperature Range | 140 °F – 425 °F (60 °C – 218 °C) |
| Controls Power | 120 V, 1 ph, 60 Hz, 1.4 A (cord & plug supplied) |
| Exterior Dimensions | 49 ⅞" W × 36 ½" D × 35" rim H (1267 × 928 × 889 mm) |
| Tilt Mechanism | Manual hand-crank, 90° discharge |
| Pan Construction | 5/8" bead-blasted stainless/steel clad bottom; 12-ga 304 SS walls |
| Certifications | CE, NSF, CSA, AGA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Brand Name | PowerPan |
| Certifications | NSF, CE |
| Height | 39.0in |
| Width | 49.88in |
| Depth | 41.0in |
| Shipping Weight | 610.0lbs |
| Capacity | 40 - 49 gal |
| Tilt | manual tilt |
| Base | modular open |
| Specifications | PowerPan™ Tilting Skillet, gas, 40-gallon capacity, bead blasted cooking surface, 10° tilt cooking feature, with easy manual hand tilt, spring-assisted cover with vent, gallon & liter markings, stainless steel construction with open leg frame, 200,000 BTU, CE, NSF |
Documents
CAD Files
Certifications
Purchase Notice
Pricing, availability, and product details are subject to change without notice. 24/7 Restaurant Equipment is not responsible for typographical errors or omissions. Freight charges may apply where applicable.
