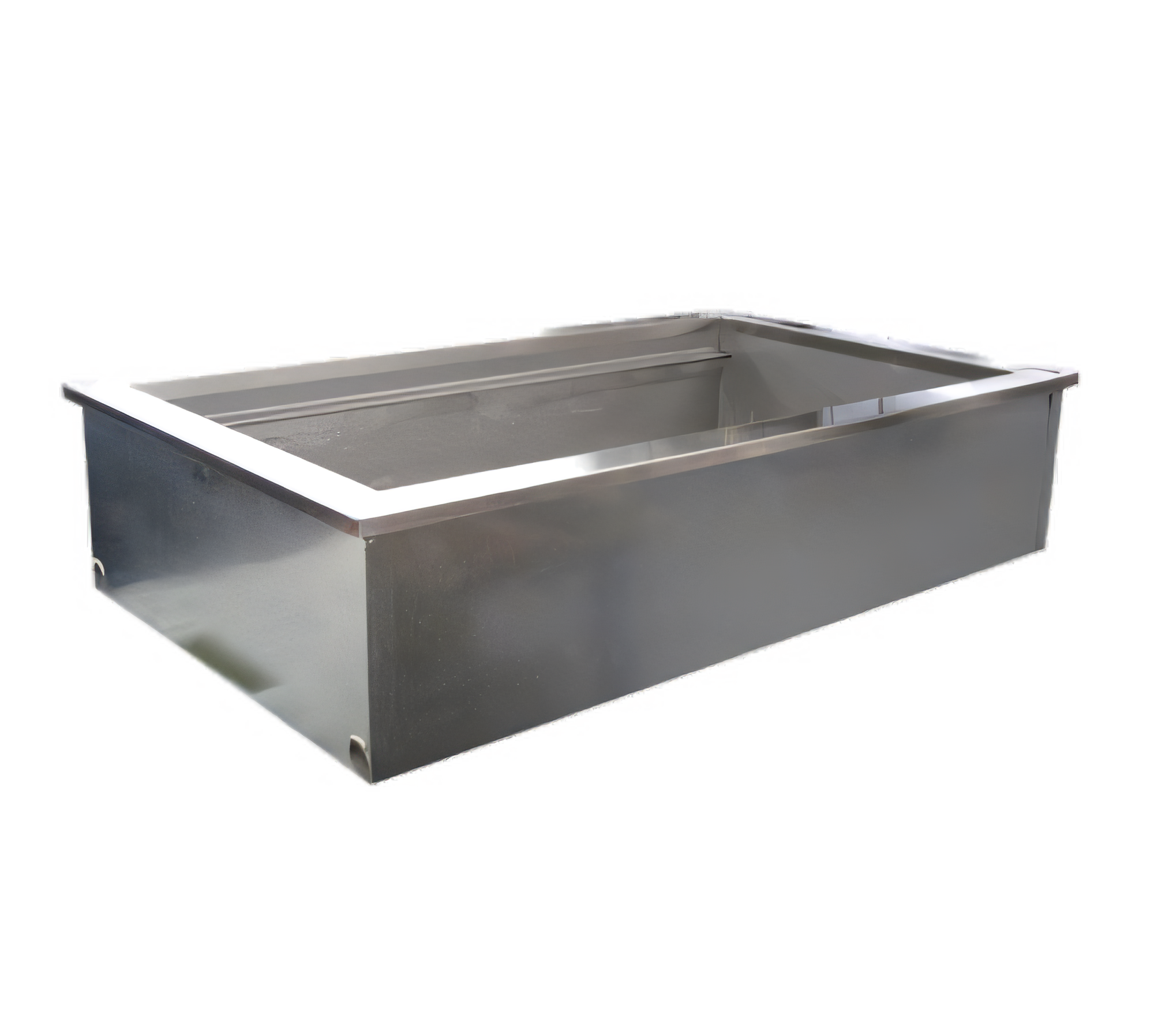

Delfield N8030 Steam Tables & Food Wells
Product Description
The Delfield N8030 drop-in ice-cooled cold pan provides reliable cold holding for two full-size food pans, keeping salads, toppings, and chilled sides crisp and appetizing without the noise, heat, or energy draw of mechanical refrigeration. Designed to nest neatly into a 29 3/4" x 25" counter cut-out, this stainless steel, NSF-2 listed unit is an ideal solution for buffets, prep lines, and grab-and-go service. Delfield also offers custom sizes and accessories, including matching sneeze guards, to meet your specific needs.
Key Features:
- Holds two standard 12" x 20" pans, with adapter bars included for a secure, level fit.
- 20-gauge stainless steel top with a non-marring press-fit gasket to protect counters and create a flush, built-in look.
- 22-gauge stainless steel interior with a V-stamped pan rest for efficient ice melt drainage.
- Sectional, removable perforated false bottom to keep products above melt-water for maximum freshness.
- High-density, Kyoto Protocol compliant polyurethane insulation that is non-ODP and non-GWP.
- 1-inch plastic drain (field installed) for quick and hassle-free clean-up.
- Durable 24-gauge galvanized exterior to withstand busy commercial kitchen environments.
- NSF-2 certified for safe and sanitary cold holding.
Ideal For:
- Preparing salads or sandwiches
- Setting up self-service buffets and cafeterias
- Displaying grab-and-go food items
- Catering events or action stations
Product Specs
| Specification | Value |
|---|---|
| Model | Delfield N8030 |
| Pan Capacity | (2) 12″ x 20″ full-size pans (pans not included) |
| Overall Dimensions | 30.75″ W x 26″ D |
| Required Cut-Out | 29.75″ W x 25″ D |
| Interior Depth | ≈ 9.35″ |
| Drain Size | 1″ diameter (plastic, supplied) |
| Construction | 20-ga SS top / 22-ga SS liner / 24-ga galvanized exterior |
| Insulation | CFC-free, high-density polyurethane foam |
| Shipping Weight | 100 lb / 45 kg (approx.) |
| Certifications | NSF-2 |
| Warranty | 1 year parts & 90 days labor |
Features
| Specification | Value |
|---|---|
| Manufacturer | Delfield |
| Certifications | NSF |
| Height | 10.75in |
| Width | 30.75in |
| Depth | 26.0in |
| Shipping Weight | 100.0lbs |
| Depth (front-to-back) OA | 25 - 30 inches |
| Pan Qty | 2-pan |
| Layout | straight |
| Interior Liner | stainless steel |
| Exterior Liner | galvanized steel |
| Width (side - side) OA | 25 - 30 inches |
| Specifications | Drop-In Ice Cooled Cold Pan, 30-3/4" W x 26" D, (2) 12" x 20" pan size, fit top gasket, removable perforated false bottom, insulated, 1" drain, stainless steel top & interior, galvanized exterior, (29-3/4" x 25" cutout required), NSF |
