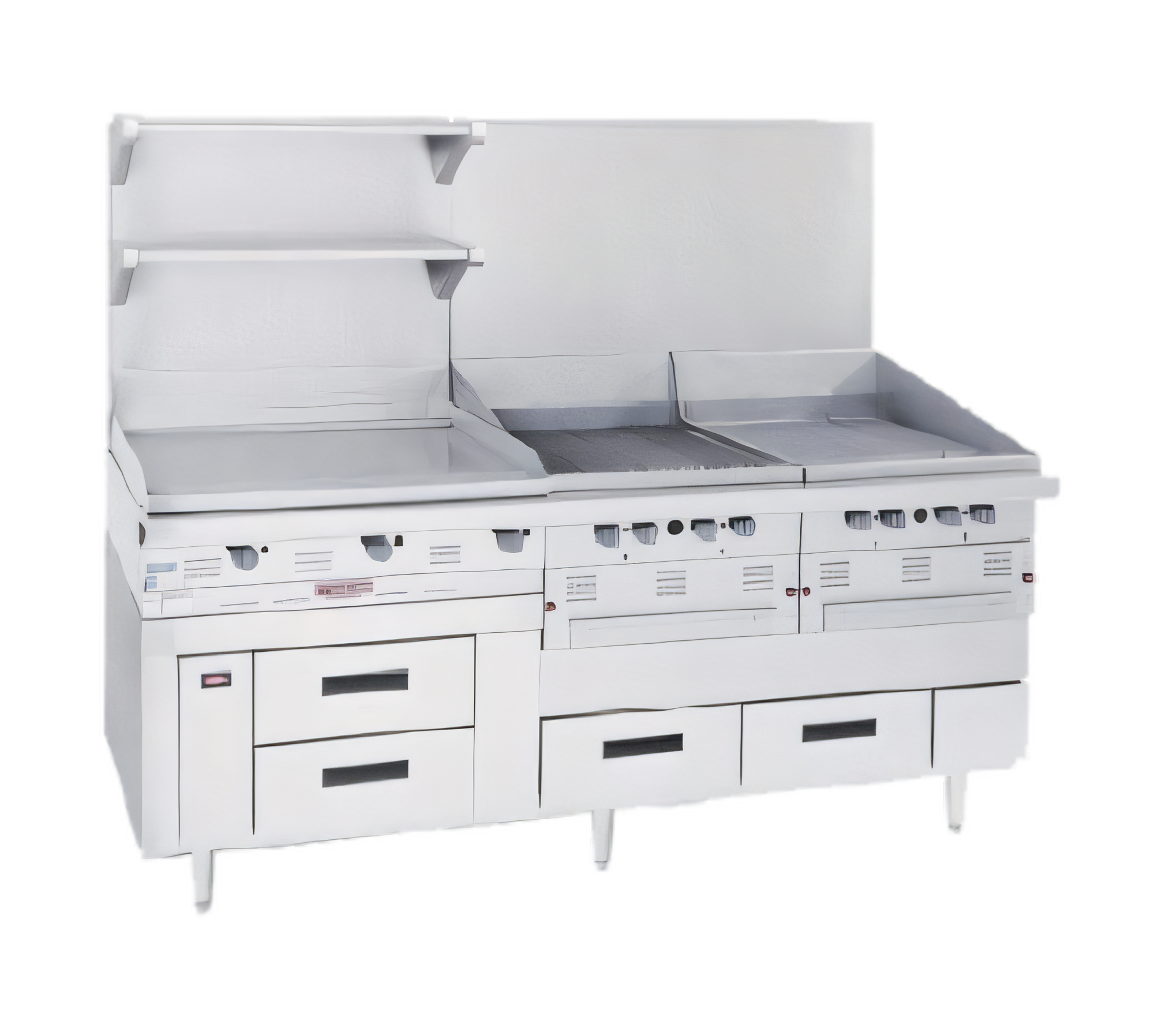

Garland GN17FC63 Arctic Fire Undercounter & Worktop Refrigeration
Product Description
The Arctic Fire freezer base is designed specifically for Garland Heavy-Duty Master Series modular cooktops. Its low-profile, self-contained design slides beneath your cooking suite, freeing up valuable floor space while providing reliable, high-capacity cold storage for your frozen ingredients. With a two-section, four-drawer configuration, this purpose-built freezer base keeps your essential components close at hand for streamlined culinary operations.
Key features:
- The cabinet is 63 inches wide and has two sections, each with two self-closing drawers.
- Each drawer bank is 19 inches wide and can hold one full-size 12-inch by 20-inch by 4-inch hotel pan, for a total capacity of four GN 1/1 pans.
- The exterior is made of durable stainless steel, with 6-inch adjustable legs.
- The self-contained refrigeration system is charged with the eco-friendly refrigerant HFC-404A.
- The vertically mounted blower coil ensures quick temperature recovery after each drawer is opened.
- The electric condensate evaporator eliminates the need for a separate drain line.
- The compressor is rated for ambient temperatures up to 100°F (38°C).
- The center-mounted, flush pull handles and Santoprene magnetic gaskets provide a tight seal.
- The front-mounted analog scroll thermometer allows for easy monitoring of the temperature.
Product Specs
| Specification | Value |
|---|---|
| Model | GN17FC63 |
| Overall width | 63 in / 1600 mm |
| Depth | 34 in / 864 mm |
| Cabinet height | 27 in / 686 mm |
| Height with legs | ≈ 33 in (adjustable) |
| Sections | 2 |
| Total drawers | 4 self-closing, 19" wide |
| Pan capacity | (4) 12" × 20" × 4" hotel pans (GN 1/1) |
| Refrigerant | R-404A (HFC-404A) |
| Compressor location | Right-hand side |
| Electrical | 115 V / 60 Hz / 1-Ph, 8.9 A, NEMA 5-15P cord & plug |
| Leg material | 6" stainless steel, adjustable |
| Interior construction | Stainless steel top/rear/bottom; ABS liner sides |
| Certifications | cULus, NSF |
| Approx. ship weight | 434 lb / 197 kg |
Features
| Specification | Value |
|---|---|
| Manufacturer | Garland |
| Brand Name | Arctic Fire |
| Height | 27.0in |
| Width | 61" - 66" wide |
| Depth | 32.75in |
| Shipping Weight | 434.0lbs |
| Exterior Finish | all stainless steel exterior |
| Drawer Qty | 4 drawers |
| Refrigeration | self-contained, side mounted |
| Specifications | Arctic Fire Freezer Base, self-contained refrigeration, 63" W, two-section, (4) self-closing drawers with center pull handles, stainless steel exterior, 6" stainless steel legs (available only when ordered with Master Series modular cook tops) 115v/60/1-ph, 8.9 amps (Garland) |
