Descripción

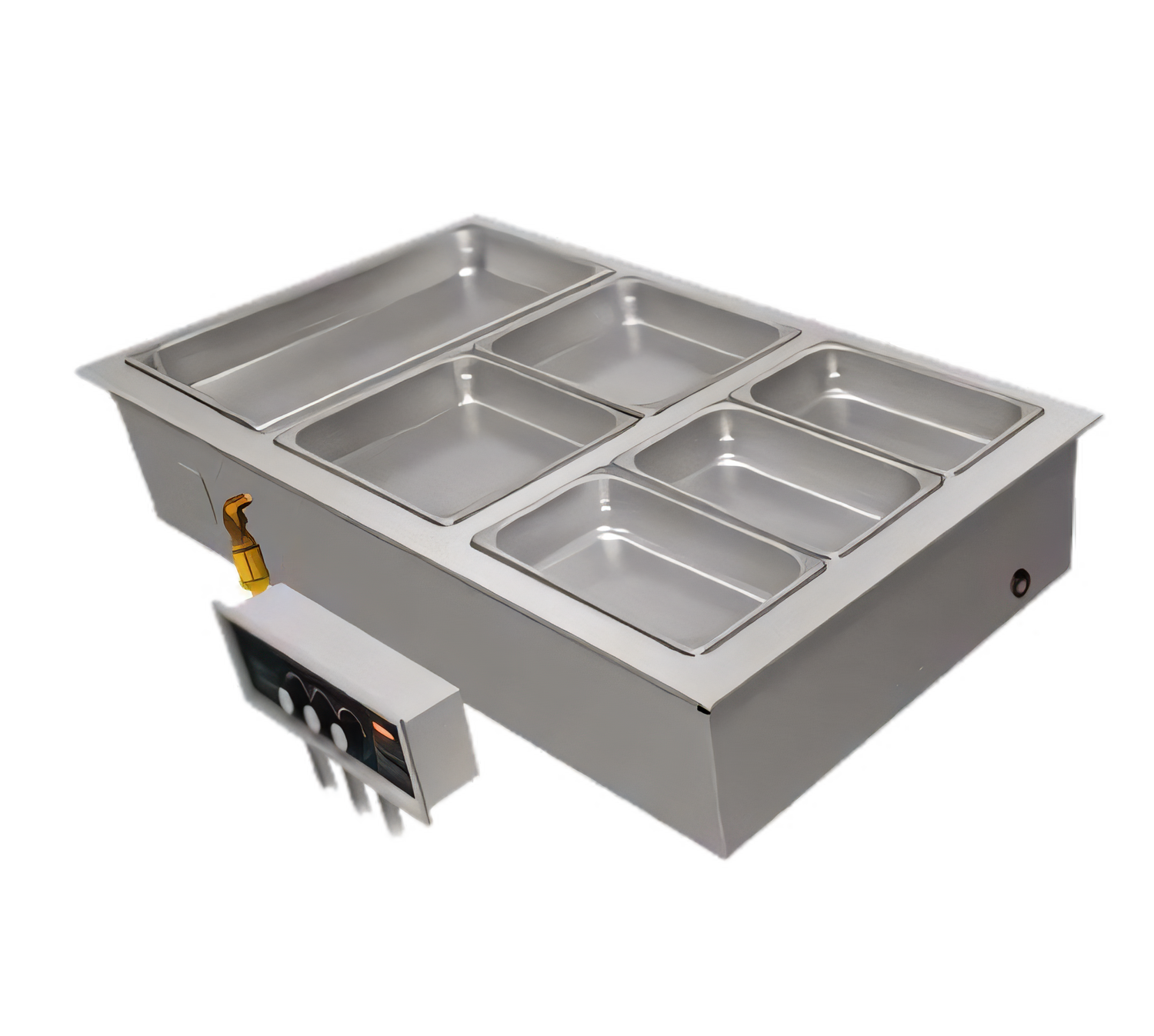

Hatco HWBLI-3MA Steam Tables & Food Wells
Product Description
The Hatco HWBI-3MA is a fully-insulated, top-mounted heated well that maintains precise serving temperatures for entrees, sides, and sauces without high-voltage power. Featuring a 3-pan capacity, automatic fill, and manifold drain, this low-watt 120V model is certified for use worldwide. Before installation, verify cut-out dimensions, plumbing connections, and electrical requirements against the installation manual.
Why You'll Love It:
- The steam table has three independent wells that can hold full-size 12" × 20" pans or fractional/round pans with adapters, keeping the food at safe temperatures.
- The low-watt design of only 2,250 W (18.8 A) allows you to plug the steam table into a single 120 V circuit while still maintaining full holding power.
- The auto-fill system automatically monitors the water level and refills as needed, so you don't have to constantly check and refill it.
- The integrated manifold drain empties all three wells through a single connection, making the clean-up process fast and splash-free.
- The remote mechanical thermostat with a lighted rocker switch for each well can be mounted up to 6 feet away, giving you a sleek, clutter-free counter line.
- The EZ-Lock™ tabs snap the unit firmly into the cut-out, so no silicone, studs, or extra hardware is required for installation.
- The 50% larger flat-screen drains resist clogging and keep the pans perfectly level, ensuring even heating.
- The durable stainless steel top and aluminized steel body with solid-brazed joints are built and tested in the USA.
- The field-serviceable design allows for quick swap-out of elements or thermostats, minimizing downtime.
- The steam table is certified safe and sanitary, meeting CE, cULus, and UL EPH Classified standards.
Popular Accessories (sold separately):
- Swanstone® well covers made to look like stone can turn the well into a heated shelf when the grill is not in use.
- Stainless steel food pans come in full, half, and one-third sizes, along with wire trivets to hold them.
- Round insets with lids (4-quart and 7-quart sizes) can be used with Hatco adapters.
- A remote handle kit allows you to empty the ¾-inch drains from below the deck.
Product Specs
| Specification | Value |
|---|---|
| Model | HWBI-3MA (Low Watt) |
| Pan Capacity | 3 full-size (12" × 20") GN 1/1 pans |
| Total Wattage | 2,250 W (3 × 750 W) |
| Electrical | 120 V / 60 Hz / 1-phase | 18.8 A | NEMA 5-20P (optional plug) |
| Controls | Remote mechanical thermostats with separate lighted On/Off switches (one per well) |
| Water Management | Auto-fill with low-water sensor & solenoid valve |
| Drainage | 1" manifold drain with single outlet (shut-off valves per well) |
| Mounting | Top-mount, insulated, EZ-Lock installation |
| Overall Dimensions | 43.5" W × 23.63" D × 9.56" H (1105 × 600 × 243 mm) |
| Approx. Ship Weight | 103 lb (47 kg) |
| Construction | Stainless steel top, aluminized steel body, 6' (1829 mm) control-box conduit |
| Certifications | CE • cULus • UL EPH Classified • Made in USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Hatco |
| Certifications | cULus, UL EPH Classified, Made in USA |
| Height | 9.63in |
| Width | 43.5in |
| Depth | 23.63in |
| Shipping Weight | 124.0lbs |
| Wet or Dry operation | wet or dry |
| Construction | stainless steel top, corrosion resistant steel exterior |
| Drain | with drain |
| Style | individual pans |
| Controls | thermostatic controls |
| Insulated or Non-Insulated | insulated |
| Pan Capacity | (3) full size (12" x 20") |
| Specifications | Drop-In Modular/Ganged Heated Well, with manifold drains & auto-fill, (3) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & Aluminized construction, 2250 watts, 120v/60/1-ph (low wattage), CE, cULus, UL EPH Classified, Made in USA |
