Vollrath 3640561HD Steam Tables & Food Wells

Product Description

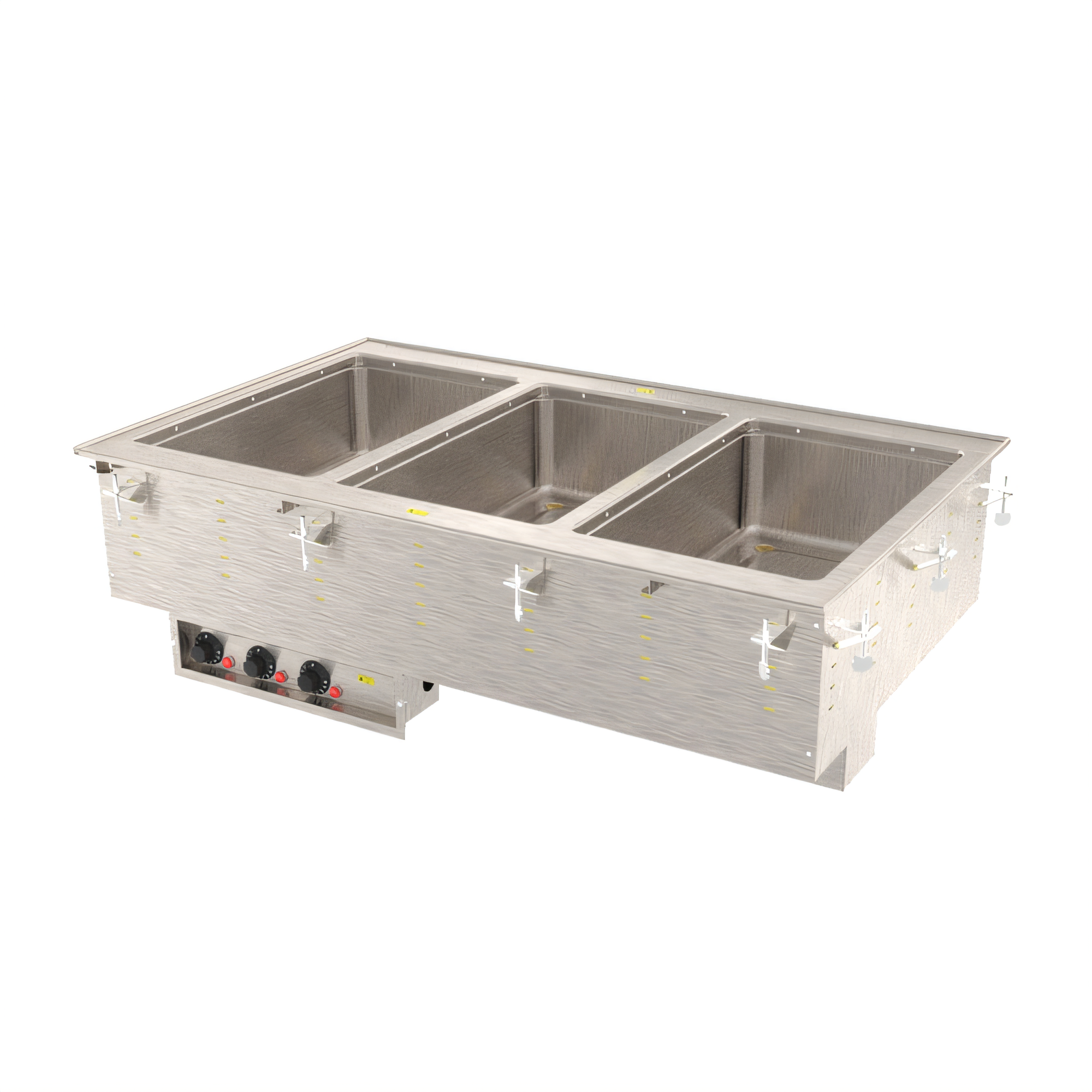

This powerful marine-grade drop-in food warmer from Vollrath is built to perform in demanding commercial and coastal environments. Capable of keeping three full-size pans piping hot all day long, its 1000W per well and 208-240V NEMA 6-20P power supply ensure consistent, reliable heating. The auto-fill system and individual infinite controls provide easy, convenient operation, making this the ideal choice to upgrade your buffet line or serving station.

Key benefits:

  • The 20 gauge 316 marine-grade stainless steel wells are highly resistant to corrosion from salt, chlorine, and acidic foods.
  • The auto-fill feature automatically maintains the correct water level, eliminating the need for constant refilling.
  • The three independent 1000 W wells have infinite controls and power lights, allowing for precise temperature holding of multiple menu items.
  • The energy-efficient insulation on every side and between the wells reduces heat loss and lowers operating costs.
  • The drip-free 18 gauge stainless steel top with a factory-installed gasket provides a clean, finished appearance.
  • The 1-inch copper manifold drain with a master shut-off valve and individual ball valves enables fast and controlled draining.
  • It ships with a 6-foot cord and a NEMA 6-20P plug, eliminating the need for hard-wiring.

Perfect for:

  • Buffets, cafeterias, and self-serve dining areas where food needs to be kept hot and ready to serve.
  • Resorts, cruise ships, and coastal operations that require a low-maintenance solution to keep food warm and appetizing.
  • Commissaries and catering kitchens that need a reliable hot holding system that requires minimal upkeep.

What's included:

  • A high-quality Vollrath 3-well marine-grade drop-in hot well unit for your kitchen or catering setup.
  • A remote control panel with a 4-foot cord, allowing you to easily adjust the temperature and settings.
  • A factory-installed 6-foot power cord with a NEMA 6-20P plug, ready to be plugged in.
  • A mounting gasket and positioning clips to secure the unit on counters up to 3 inches thick.
  • A 1-inch copper drain manifold assembly for easy cleanup and drainage.
  • A comprehensive installation and operation manual to guide you through the setup process.

Installation notes:

  • The cut-out for the installation must have a corner radius of ⅞ inch (2.2 cm) and no extra space around the sides.
  • This product can only be used with water - you must keep water in each well during operation.
  • Make sure there is at least 6 ½ inches of clearance below the counter for the drain manifold and plumbing connections.
  • Connect the product to a 208-240 volt, single-phase electrical outlet (NEMA 6-20R) and a cold water supply.

Product Specs

Specification Value
Overall dimensions (W × D × H) 41 ½" × 26" × 21 ½" (105.4 × 66 × 54.6 cm)
Counter cut-out 40 ¾" × 25 ¼" (103.5 × 64.1 cm) • ⅞" corner radius
Well size (3) 12" × 20" full-size pans • up to 6" deep • wet operation only
Construction 20 ga 316 SS wells • 18 ga SS top • SS exterior housing
Heat output 1000 W per well • 3000 W total
Controls Remote stainless panel (4' tether) with individual infinite knobs & indicator lights
Electrical 208-240 V / 60 Hz / 1-ph • 10.8-12.5 A • NEMA 6-20P plug
Drain 1" copper manifold, master shut-off + individual well shut-offs • ½" MPT outlet
Water supply Auto-fill requires ⅜" NPT cold-water line (15-80 psi)
Certifications NSF/ANSI 4, cULus
Origin / Warranty Made in Sheboygan, WI • 2-year limited parts & labor

Features

Specification Value
Manufacturer Vollrath
Certifications NSF, cULus, Made in USA
Height 21.5in
Width 41.5in
Depth 26.0in
Shipping Weight 143.0lbs
Controls infinite controls
Wet or Dry operation wet
Style individual pans
Construction stainless steel construction
Insulated or Non-Insulated insulated
Pan Capacity (3) full size (12" x 20")
Drain with drain
Specifications Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3000 watts, 208-240v/60/1-ph, 10.8-12.5 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
NSF
NSFNSF Certified – This product meets NSF International food safety and sanitation standards for commercial foodservice equipment.
cULus
cULuscULus Certified – This product has been tested and meets the requirements for this certification.
Made in USA
Made in USAMade in USA – This product is manufactured in the United States of America.
