Descripción

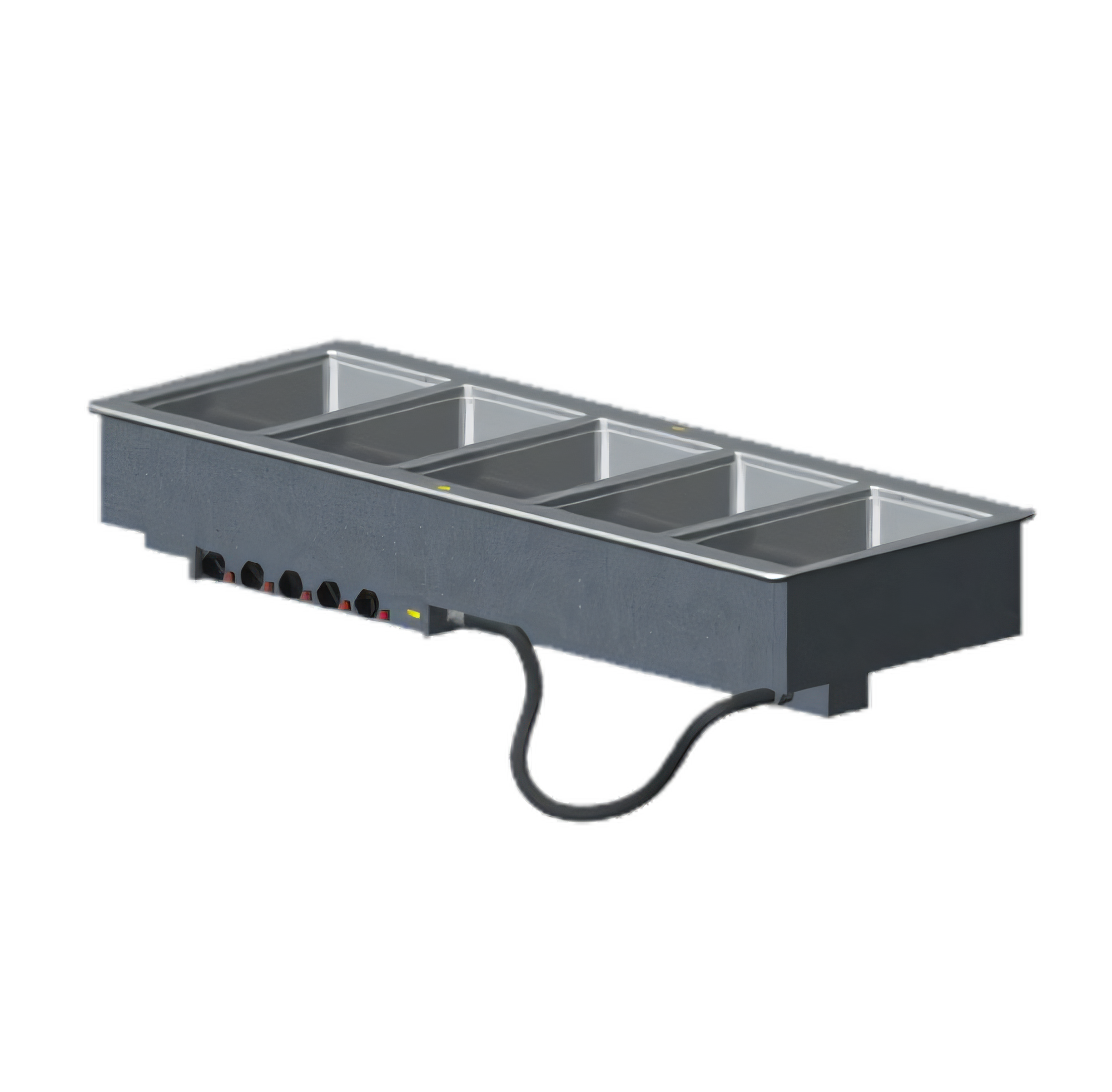

Vollrath 36408 Steam Tables & Food Wells
Product Description
Vollrath's modular drop-in hot well system keeps up to five menu items hot, fresh, and ready for service. Engineered for wet operation, this self-contained unit installs easily in your counter cut-out and plugs into a single 6-20P receptacle, eliminating the need for hard-wiring. Made in the USA, the standard drains of Model 36408 provide a reliable, convenient solution for maintaining the temperature of your prepared dishes.
Why you'll love it:
- The unit has five individual 12" × 20" wells, each providing 625 W of power for consistent holding temperatures, totaling 3,125 W.
- The 20-gauge stainless-steel, deep-drawn wells are corrosion-resistant and easy to clean.
- The 18-gauge stainless-steel top has a drip-free full-perimeter flange to contain spills and add strength.
- High-density glass-fiber insulation on all sides allows for zero-clearance installation.
- Each well has its own individual infinite control with power indicator lights, allowing you to adjust the temperature independently.
- Each well has a ½" stainless-steel drain with a ball-valve shut-off for quick water changes.
- Supplied positioning clips center the unit perfectly in a 67 ¼" × 25 ¼" cutout (7⁄8" corner radius).
- The unit comes with a 6 ft factory-installed cord and NEMA 6-20P plug, so you can simply drop it in, plug it in, and it's ready to use.
- The unit is NSF & cULus listed for food-service safety and sanitation.
Product Specs
| Specification | Value |
|---|---|
| Wells / Pan Size | (5) 12" × 20" full-size (accepts fractional pans up to 6" deep) |
| Operation | Wet heat only – water required for even heat distribution |
| Controls | Individual infinite switches, panel-mounted, with power indicators |
| Total Wattage | 3,125 W (625 W per well) |
| Electrical | 208 V / 60 Hz / 1 ph, 15 A, NEMA 6-20P cord & plug |
| Exterior Construction | 18-gauge stainless top, 18-gauge galvanized steel housing |
| Overall Dimensions | 68" W × 26" D × 15" H |
| Cut-out Required | 67 ¼" W × 25 ¼" D, 7⁄8" corner radius |
| Drain Fittings | ½" MPT per well with individual ball valves |
| Accessories | Sheet-pan adapter bar (Item 19186) – sold separately |
| Agency Listings | NSF, cULus |
| Origin | Made in USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 15.0in |
| Width | 68.0in |
| Depth | 26.0in |
| Shipping Weight | 150.0lbs |
| Controls | infinite controls |
| Pan Capacity | (5) full size (12" x 20") |
| Insulated or Non-Insulated | insulated |
| Construction | stainless steel top, corrosion resistant steel exterior |
| Wet or Dry operation | wet |
| Style | individual pans |
| Drain | with drain |
| Specifications | Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge stainless steel insulated wells, 68"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3125 watts, 208v/60/1-ph, 15.0 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
