Descripción

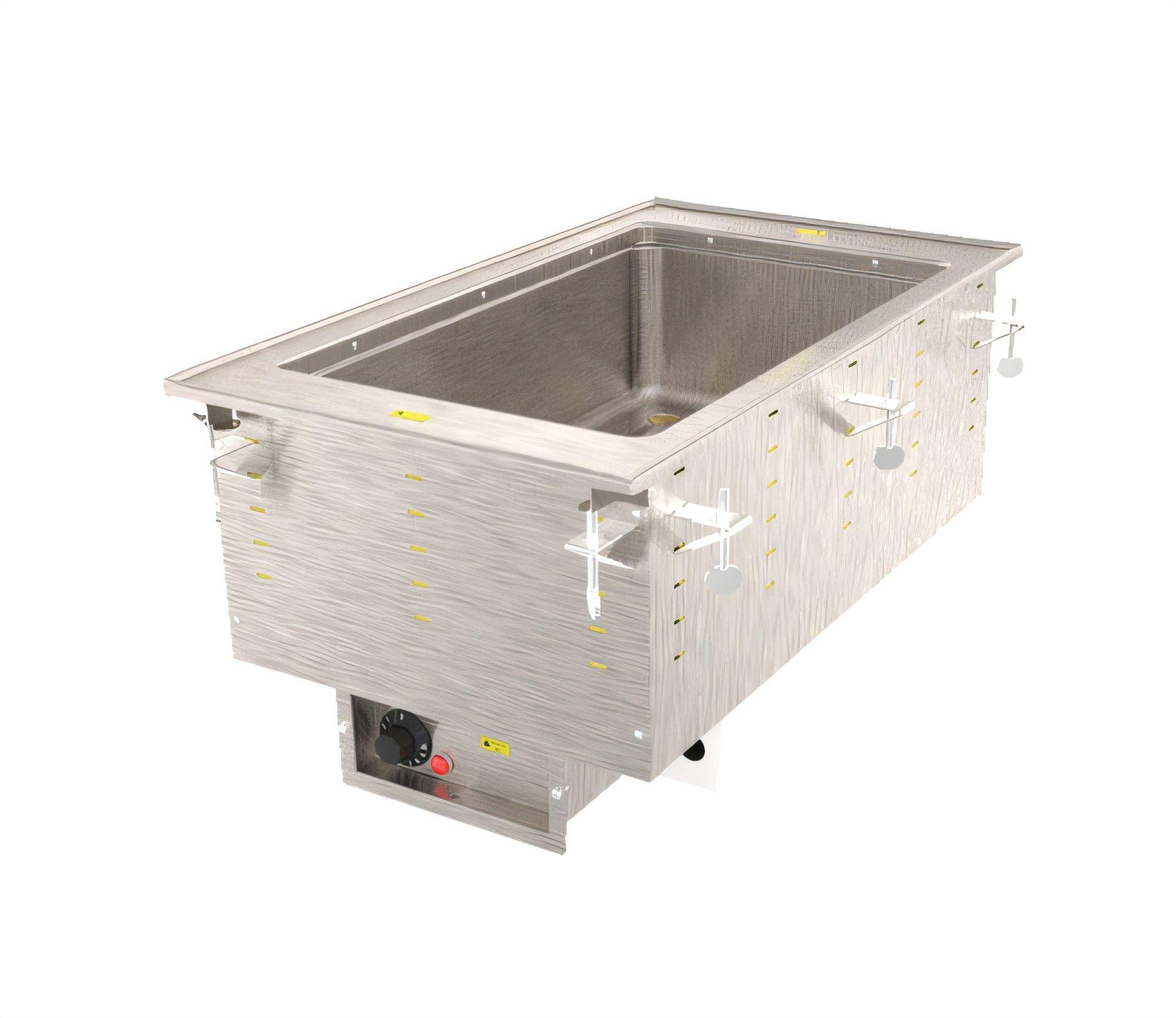

Vollrath 36471HD Steam Tables & Food Wells
Product Description
The Vollrath 36471HD modular drop-in food well keeps soups, sauces, and sides piping hot and ready for service. Crafted from durable 316 stainless steel, this 12" x 20" unit drops into a 14-¼" x 25-¼" counter cut-out and provides consistent wet heat without the need for hard-wiring. With 625 watts of power and infinite control, this NSF-listed well ensures your dishes stay warm and ready to serve.
Key Features:
- The unit is made of durable marine-grade 20-gauge SAE 316 stainless steel, which resists corrosion from salt and chemicals.
- The wet-heat operation with a drip-free flange ensures even temperature distribution and a clean countertop.
- The infinite dial control and bright power indicator light are on a tethered stainless steel panel with a 4-foot reach, allowing flexible mounting.
- All non-exposed sides are fully insulated to reduce heat loss and protect the surrounding cabinetry.
- The unit has a 1/2" NPT drain with a ball-valve shut-off for quick and mess-free water removal.
- The 18-gauge stainless steel top plate and exterior housing are built to withstand heavy commercial use.
- The 6-foot power cord with a NEMA 6-15P plug allows for easy plug-and-play installation without the need for an electrician.
- The unit can accommodate one full-size or multiple fractional pans up to 6 inches deep (adapter bars are recommended).
- Includes a gasket and positioning clips for zero-clearance installation on countertops up to 3 inches thick.
- The unit is NSF (wet use) and cULus listed, ensuring safety and sanitation standards are met.
Product Specs
| Specification | Value |
|---|---|
| Model | 36471HD |
| Overall Dimensions | 15" W × 26" D × 15" H (38.1 × 66 × 38.1 cm) |
| Counter Cut-Out | 14-¼" W × 25-¼" D (36.2 × 64.1 cm) with ⅞" corner radius |
| Well Size | 12" × 20" full-size pan cavity |
| Operation | Wet heat only |
| Control Type | Infinite manual dial |
| Power | 625 W | 2.6 A |
| Electrical | 240 V / 60 Hz / 1-phase |
| Plug | NEMA 6-15P (factory-installed cord) |
| Drain | ½" MPT with shut-off valve |
| Construction | 20-ga 316 SS well, 18-ga SS top & housing |
| Agency Listings | NSF 4 (wet use), cULus |
| Origin | Made in USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 15.0in |
| Width | 15.0in |
| Depth | 26.0in |
| Shipping Weight | 33.65lbs |
| Style | individual pans |
| Pan Capacity | (1) full size (12" x 20") |
| Construction | stainless steel construction |
| Controls | infinite controls |
| Insulated or Non-Insulated | insulated |
| Wet or Dry operation | wet |
| Drain | with drain |
| Specifications | Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge/316 marine grade stainless steel insulated well, 15"W x 26"D x 15"H (overall), wet operation only, infinite controls mounted in panel with cord, power indicator light, drip-free flange, drain shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 625 watts, 240v/60/1-ph, 2.6 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
