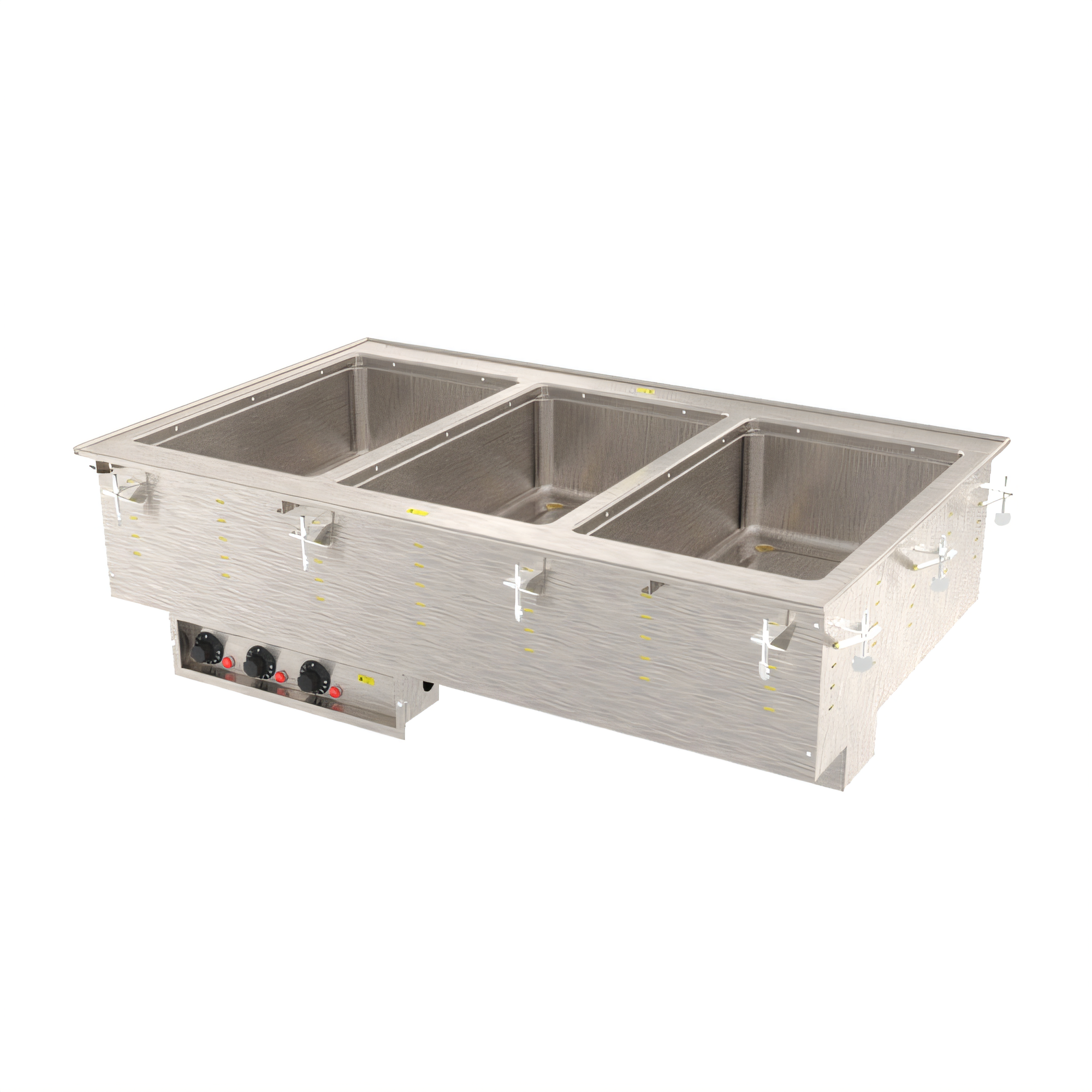

Vollrath 3647310HD Steam Tables & Food Wells
Product Description
Vollrath's high-performance three-well drop-in heater (model 3647310HD) is designed to keep hot food at the perfect serving temperature, even in the most demanding commercial settings. With 625 watts of power per well and a NEMA 6-15P plug, this unit is built to withstand the rigors of busy buffets, cafeterias, stadium suites, and coastal locations where corrosion resistance is crucial. For optimal NSF compliance and performance, simply fill each well with water and keep the drains closed during use.
Key Benefits:
- The 20-gauge 316 stainless steel wells are resistant to salt, chemicals, and pitting, ensuring durability.
- Individual thermostatic controls with power indicator lights allow you to adjust the temperature of each 12" x 20" well independently.
- Wet operation provides uniform heat and superior food quality, as each well is fully insulated on all sides.
- The drip-free top flange and included gasket ensure a clean, sanitary counter installation.
- Separate ½" drains with ball-valve shut-offs make it easier to change out and clean the wells.
- Comes with mounting/positioning clips for counters up to 3" thick, and no hard-wiring is required.
- The zero-clearance design fits tight layouts, and the 6 ft. power cord has a factory-installed NEMA 6-15P plug.
Ideal Applications:
- Keeping food warm and fresh in steam tables and buffet lines
- Serving food on ships or in coastal food service locations
- Providing food in convenience stores and small kiosks
- Supplying meals in school and hospital cafeterias
Product Specs
| Specification | Value |
|---|---|
| Configuration | 3 individual wells (full-size 12" × 20") |
| Operation | Wet heat only (water required) |
| Control Type | Thermostatic, panel-mounted (4 ft tether) |
| Total Wattage | 1,875 W (625 W per well) |
| Electrical | 240 V / 60 Hz / 1-ph • 7.8 A • NEMA 6-15P |
| Overall Dimensions | 41 ½" W × 26" D × 15" H (105.4 × 66 × 38.1 cm) |
| Cutout Required | 40 ¾" W × 25 ¼" D (103.5 × 64.1 cm) with 7/8" corner radius |
| Well Material | 316 marine-grade stainless, 20 ga |
| Top / Exterior | 18 ga stainless steel top • stainless housing |
| Drain Connections | Three ½" MPT drains with individual ball valves |
| Mounting Hardware | Standard clips & gasket included |
| Agency Listings | NSF 4 (wet operation), cULus |
| Warranty | 2 years parts & labor (see VollrathFoodservice.com for full policy) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 15.0in |
| Width | 41.5in |
| Depth | 26.0in |
| Shipping Weight | 127.0lbs |
| Style | individual pans |
| Insulated or Non-Insulated | insulated |
| Construction | stainless steel construction |
| Wet or Dry operation | wet |
| Controls | thermostatic controls |
| Drain | with drain |
| Pan Capacity | (3) full size (12" x 20") |
| Specifications | Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1875 watts, 240v/60/1-ph, 7.8 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
