Vollrath 36640HD Steam Tables & Food Wells

Product Description

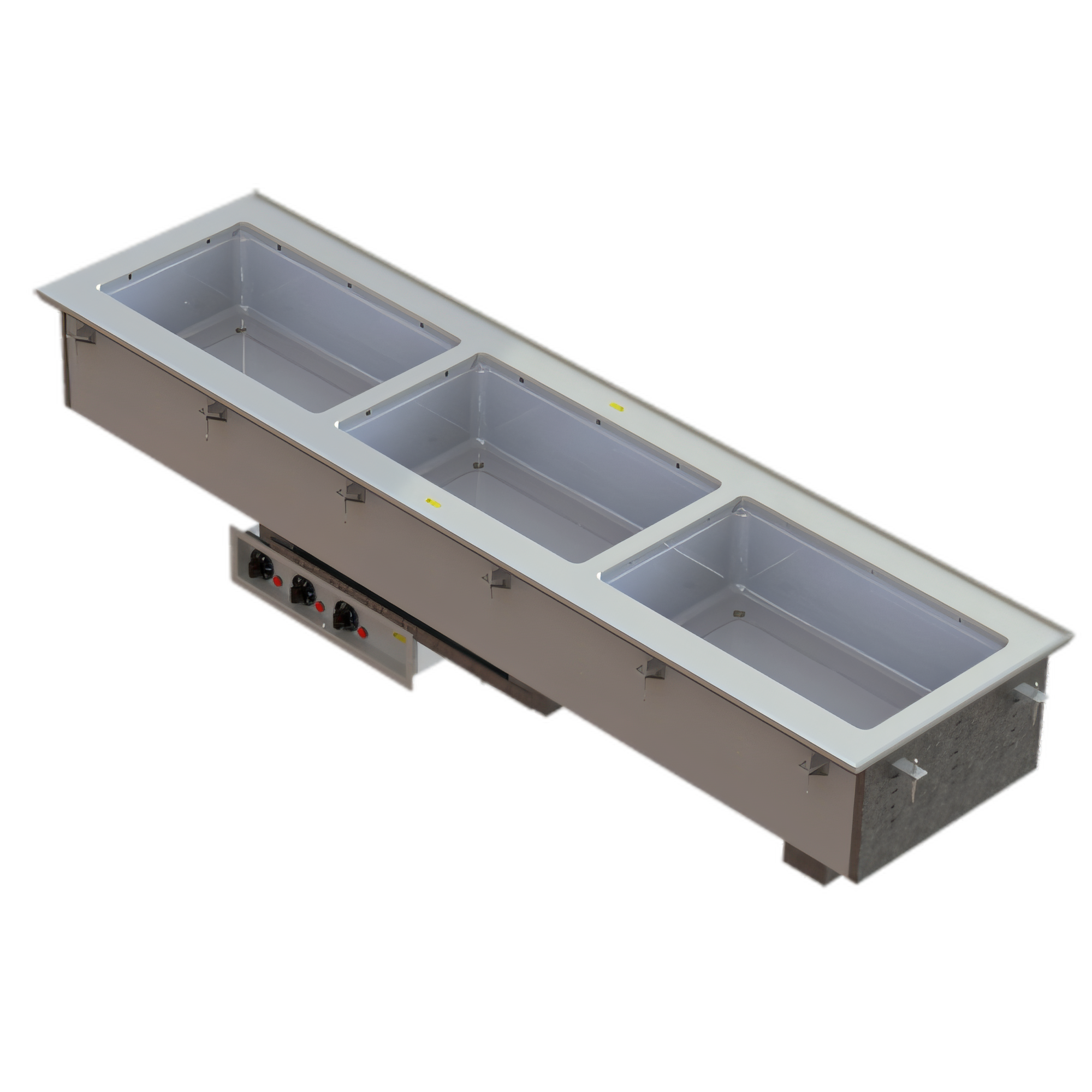

The Model 36640HD is a versatile and durable drop-in unit that maximizes counter space without compromising its holding capacity. Featuring thermostatic controls and a standard drain, this unit can accommodate full-size pans by arranging them sideways, resulting in a compact 18-inch footprint. Crafted with 316 marine-grade stainless steel, it offers exceptional corrosion resistance, making it ideal for coastal, high-humidity, or environments that require frequent, aggressive cleaning.

Key advantages:

  • The compact 18-inch (45.7 cm) front-to-back profile allows for easy access to the pans.
  • The drawn wells and 18-gauge top are made of marine-grade stainless steel (SAE Type-316) that resists corrosion from salt and acidic foods.
  • Independent thermostatic controls with power indicator lights maintain safe serving temperatures.
  • Thick polyurethane foam insulation, including between the wells, improves energy efficiency and keeps the outer surfaces cool.
  • The full-perimeter drip edge, under-mount gasket, and individual 1/2-inch ball-valve drains help keep the counters clean and dry.
  • The 6-foot (1.8 m) cord with a NEMA 5-15P plug allows for plug-and-play installation, without the need for hard-wiring.
  • The zero-clearance design and included mounting clips make installation easy, even for counters up to 3 inches (7.6 cm) thick.
  • The removable service panel beneath each well provides quick access to the components.
  • The unit is made in the USA and listed to UL, cUL, and NSF 4 standards.

Ideal for:

  • Restaurants and cafes with limited counter space, where a compact design is needed.
  • Seafood or coastal businesses that require equipment with exceptional protection against corrosion.
  • Front-of-house cooking stations or finishing areas where food is prepared to order.

Product Specs

Specification Value
Pan capacity 2 full-size steam table pans (side-loaded)
Total wattage 1,250 W (625 W per well)
Electrical 120 V / 60 Hz / 1-phase | 10.4 A | NEMA 5-15P
Well size (each) 20″ × 12″ × 8″ D (50.8 × 30.5 × 20.3 cm)
Overall dimensions 45-1/2″ W × 18″ D
Countertop cutout 44-11/16″ W × 17-1/4″ D | 7/8″ corner radius
Construction 316 marine-grade S/S wells & 18-ga. top, stainless exterior housing
Controls Remote stainless panel, 4 ft tether, independent thermostats & indicators
Drain ½″ drains with ball valves & removable plug (one per well)
Certifications UL, cUL, NSF 4 (moist heat only)
Origin / Warranty Made in USA | 2-year limited warranty*

Features

Specification Value
Manufacturer Vollrath
Certifications NSF, UL, Made in USA
Height 15.0in
Width 45.44in
Depth 18.0in
Shipping Weight 115.0lbs
Style individual pans
Wet or Dry operation wet
Construction stainless steel construction
Pan Capacity (2) full size (12" x 20")
Controls thermostatic controls
Insulated or Non-Insulated insulated
Drain with drain
Specifications Short Sided Hot Well, Drop-In, (2) pan, thermostatic controls, standard drains, 1250 watts, 120v/60/1-ph, 10.4 amps, NEMA 5-15P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 45-1/2" x 18", cutout dimensions 44-11/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
NSF
NSFNSF Certified – This product meets NSF International food safety and sanitation standards for commercial foodservice equipment.
UL
ULUL Listed – This product has been independently safety tested and certified by Underwriters Laboratories.
Made in USA
Made in USAMade in USA – This product is manufactured in the United States of America.
