Descripción

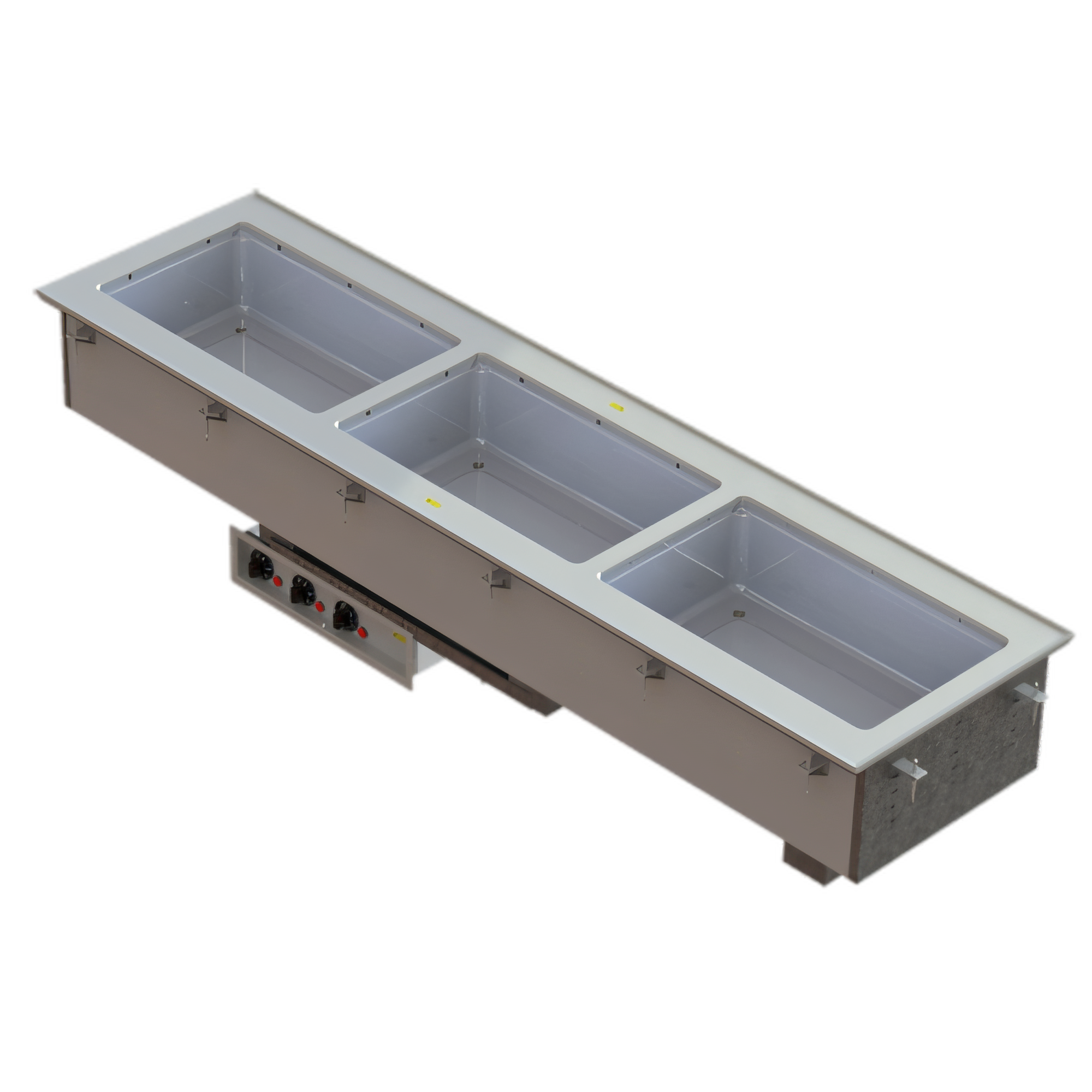

Vollrath 36644HD Steam Tables & Food Wells
Product Description
The Vollrath Model 36644HD Short-Side Hot Well is a thermostatic control unit designed for narrow counters and front-of-house accessibility. Featuring 120V / 2500W / 20.8A power, it allows full-size hotel pans to be positioned sideways, bringing food closer to guests and staff while saving valuable depth on the buffet line. Manufactured, wired, and tested in the USA, this plug-and-play drop-in unit ships ready for reliable installation and long-lasting service. For added versatility, Vollrath adapter bars (item 19186, sold separately) provide support for sheet pans or fractional pans.
Key benefits:
- The slimmer 18-inch footprint of the side-oriented wells allows for easier reach and fits better on tight countertops.
- The 625 watts of power per well (2,500 watts total) delivers even, moist heat that keeps foods at safe serving temperatures.
- The individual thermostatic knobs and power indicators let you adjust the temperature of each of the four wells independently.
- The marine-grade stainless steel top and wells resist corrosion from salts, acids, and harsh cleaners.
- The standard ½-inch ball-valve drains on every well, with included plugs, allow for quick and mess-free cleanup.
- The heavy polyurethane foam insulation on all sides, including between the wells, maximizes efficiency and protects surrounding surfaces.
- The stainless steel remote control panel arrives tethered with a 4-ft (122 cm) cord, providing flexible mounting options.
- It ships with a gasket, full-perimeter drip edge, and mounting clips for counters up to 3 in (7.6 cm) thick, and no hard-wiring is required.
- It accepts standard 12 " × 20 " full-size pans or fractional pans (adapter bars recommended) up to 6 in (15.2 cm) deep.
Installation & operating notes:
- This unit can be installed right next to other equipment without any space in between.
- This unit is for indoor use only. The temperature of the room and the HVAC system can affect how well the unit holds the temperature of the food.
- You need to have water in each well to ensure even heating. This unit is not designed to reheat refrigerated food.
- Drop-in units are made specifically for each order and cannot be cancelled or returned.
Product Specs
| Specification | Value |
|---|---|
| Wells / Capacity | 4 wells • one full-size pan per well |
| Total wattage | 2,500 W (625 W per well) |
| Electrical | 120 V / 60 Hz / 1-phase • 20.8 A • 6 ft (1.8 m) cord with NEMA 5-30P plug |
| Controls | Four independent thermostatic dials with pilot lights |
| Drain style | ½ " individual drains with ball valves • drain plug included |
| Well interior | 20 " L × 12 " W × 6 " D (50.8 × 30.5 × 15.2 cm) |
| Overall dimensions | 88 ¼ " L × 18 " W (224.2 × 45.7 cm) |
| Counter cut-out | 87 ½ " L × 17 ¼ " W (222.3 × 43.8 cm) • 7⁄8 " (2.2 cm) corner radius |
| Construction | 18-ga 316 stainless top & wells • stainless exterior housing |
| Certifications | UL, cUL, NSF |
| Origin / Warranty | Made in USA • 2-year limited warranty (see VollrathFoodservice.com) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, UL, Made in USA |
| Height | 15.0in |
| Width | 88.56in |
| Depth | 18.0in |
| Shipping Weight | 173.0lbs |
| Style | individual pans |
| Construction | stainless steel construction |
| Pan Capacity | (4) full size (12" x 20") |
| Controls | thermostatic controls |
| Drain | with drain |
| Insulated or Non-Insulated | insulated |
| Wet or Dry operation | wet |
| Specifications | Short Sided Hot Well, Drop-In, (4) pan, thermostatic controls, standard drains, 2500 watts, 120v/60/1-ph, 20.8 amps, NEMA 5-30P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 88-1/4" x 18", cutout dimensions 87-1/2" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy) |
