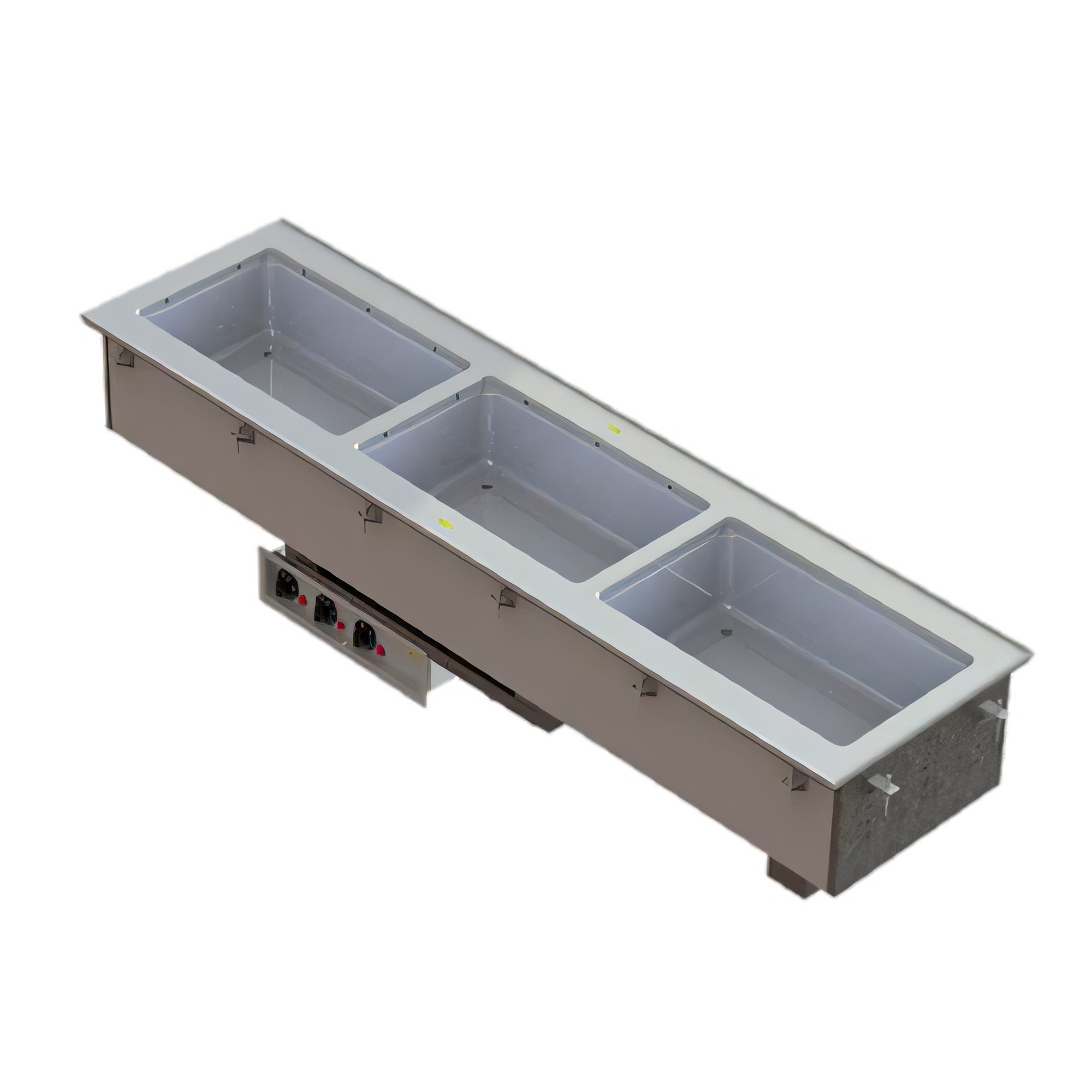

Vollrath 36651 Steam Tables & Food Wells
Product Description
Model 36651 | Standard Drain | 1000 W per well
This hot well from Vollrath offers a streamlined design that saves valuable counter space without compromising capacity. By rotating full-size pans sideways, the Short-Side Hot Well reduces the overall depth to just 18 inches, making hot food easily accessible for both guests and staff. This compact yet powerful unit features 1000 watts per well, ensuring your serving line stays hot and inviting.
Key Features & Benefits:
- The unit has a narrow 18" (46 cm) footprint, making it suitable for space-restricted counters.
- The 18/8 (300 series) stainless-steel top flange and drawn wells are durable and can withstand heavy, everyday use.
- Foamed-in-place polyurethane insulation on all non-exposed surfaces, including between wells, enhances energy efficiency.
- The full perimeter drip edge controls condensation and keeps counters dry.
- The ½" drains with individual ball valves and the included drain plug make cleaning easy.
- The remote stainless-steel control panel features individual infinite controls and power lights, with a 4 ft (122 cm) tether for flexible mounting.
- The 6 ft (1.8 m) cord with NEMA 6-30P plug eliminates the need for hard-wiring.
- The unit can accommodate full-size or fractional pans up to 6" deep (adapter bars are recommended for fractional pans).
- The zero-clearance installation makes it suitable for indoor use.
- The product is UL, CUL, and NSF listed and is made in the USA.
Product Specs
| Specification | Value |
|---|---|
| Capacity | 4 full-size pans (sideways) |
| Controls | Infinite – one per well |
| Total Power | 4000 W (1000 W per well) |
| Electrical | 208-240 V / 60 Hz / 1-ph • 14.4 – 16.7 A • NEMA 6-30P |
| Overall Dimensions | 88 1⁄4" L × 18" W (224.0 cm × 45.7 cm) |
| Cut-out Dimensions | 87 1⁄2" L × 17 1⁄4" W • 7⁄8" corner radius |
| Well Interior (each) | 20" L × 12" W × 8" D |
| Drain | ½" standard drain with individual valves |
| Cord Length | 6 ft (1.8 m) |
| Certifications | UL | CUL | NSF |
| Origin | Made in USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, UL, Made in USA |
| Height | 15.0in |
| Width | 88.56in |
| Depth | 18.0in |
| Shipping Weight | 150.0lbs |
| Controls | infinite controls |
| Style | individual pans |
| Construction | stainless steel construction |
| Pan Capacity | (4) full size (12" x 20") |
| Drain | with drain |
| Wet or Dry operation | wet |
| Insulated or Non-Insulated | insulated |
| Specifications | Short Sided Hot Well, Drop-In, (4) pan, infinite controls, standard drains, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, NEMA 6-30P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 88-1/4" x 18", cutout dimensions 87-1/2" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy) |
