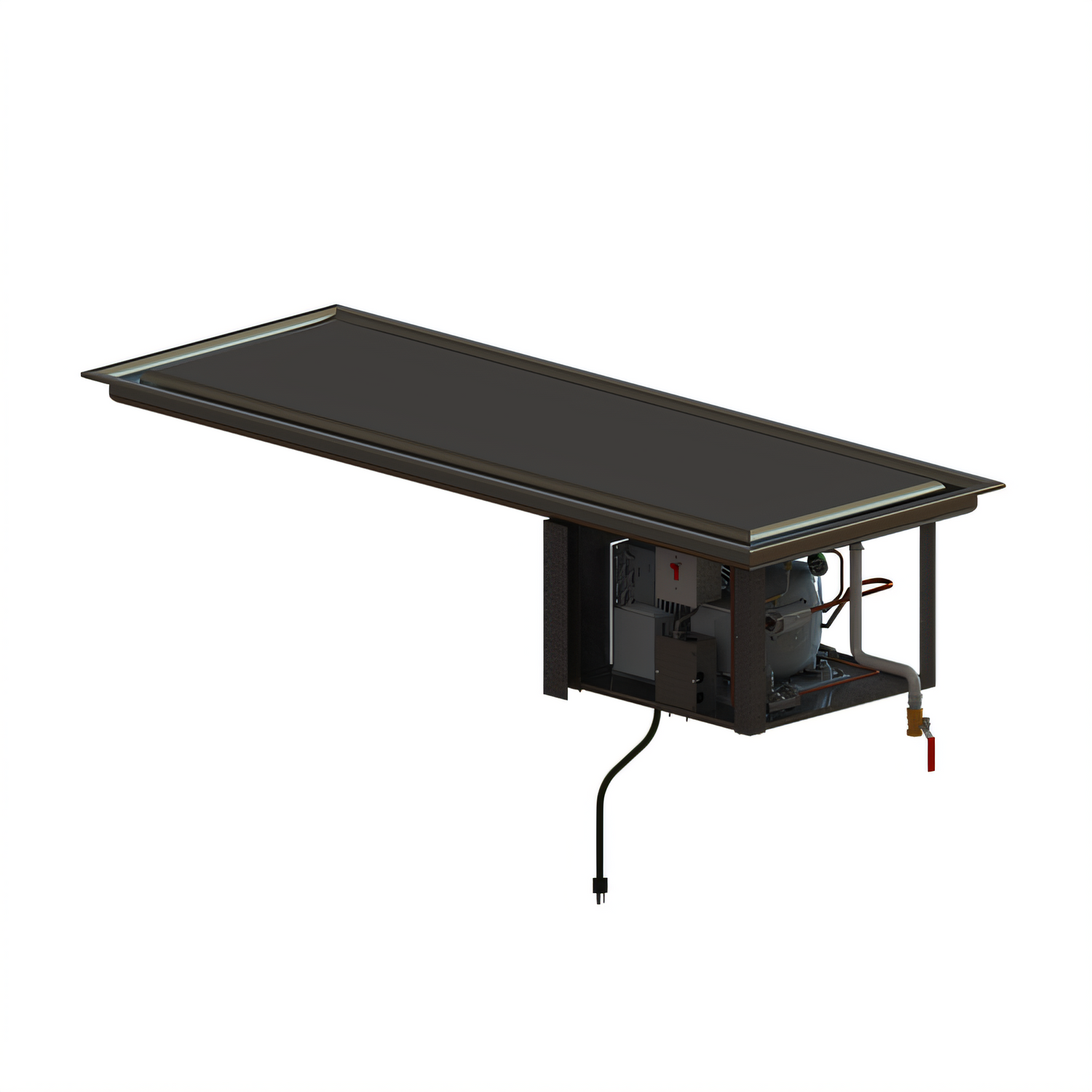

Vollrath FC-4C-06120-F Refrigerated Prep Tables
Product Description
Elevate your buffet, deli, or grab-and-go line with the Vollrath FC-4C-06120-F drop-in frost top. This self-contained unit offers a 6-pan capacity and maintains a consistent 0°F (-18°C) surface, keeping your product ice-cold without the mess of loose ice. Measuring 81¼" x 26 1⁄16" and powered by 120V, this frost top provides a dramatic, frost-covered presentation that ensures hours of worry-free service.
Key features:
- The unit is made of a one-piece 300 series stainless-steel frost surface and flange, which is durable, food-safe, and easy to clean.
- It has a self-contained refrigeration system with a 1/3 HP compressor that plugs into a standard NEMA 5-15R outlet.
- The unit uses environmentally preferred R513A refrigerant, which is non-flammable and has a low Global Warming Potential (GWP).
- It has a remote lighted On/Off rocker switch on a 4 ft (122 cm) lead for convenient mounting.
- The recessed full-perimeter drip flange with a 1/2" integral drain captures condensation and spills.
- The extruded polystyrene insulation directs cold to the surface for energy-efficient operation.
- The unit can be installed with zero clearance on all sides, and only requires 4 1/2" (11.4 cm) of airflow clearance below.
- The top-mount design installs flush with the countertop for a seamless, sanitary look.
- The unit is cULus and NSF listed, and is proudly made in the USA.
Installation & operation tips:
- Make sure the surrounding cabinet has at least 80 square inches of fresh-air intake and 80 square inches of exhaust to provide enough ventilation.
- Keep drafts and direct HVAC air away from the frost surface to ensure full coverage.
- Pre-chill stainless-steel pans to 40 °F (4 °C) or below for best performance.
- This product is for indoor use only, as the ambient conditions can affect the surface temperature.
Product Specs
| Specification | Value |
|---|---|
| Model | FC-4C-06120-F |
| Pan capacity | 6 full-size 12 × 20" pans * |
| Display area length | 75 ¼" |
| Overall dimensions (L × W) | 81 ¼" × 26 1⁄16" |
| Counter cut-out (L × W) | 80 ½" × 25 ¼" |
| Compressor | 1/3 HP, self-contained |
| Refrigerant / charge | R513A, approx. 10 oz |
| Electrical | 120 V / 60 Hz / 1-ph, 7.8 A, 6 ft cord with NEMA 5-15P plug |
| Peak heat rejection | 4,800 BTU/hr |
| Shipping weight | ≈ 146 lb (66.2 kg) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 15.0in |
| Width | 81.25in |
| Depth | 26.06in |
| Shipping Weight | 320.0lbs |
| Width (side - side) | 72 - 120 inches |
| Depth (front - back) | 26" |
| Compressor HP | 1/3 HP compressor |
| Specifications | Frost Top, Drop-In, self-contained refrigeration, 6-pan, 300 series stainless steel, recessed drip flange with drain, remote on/off switch, 1/3 hp compressor, 120v/60/1-ph, 7.8 amps, NEMA 5-15P, overall dimensions: 81-1/4" x 26-1/16", cutout dimensions: 80-1/2" x 25-1/4", display area length: 75-1/4", cULus, NSF, Made in USA (contact Vollrath for lead time) (Refer to vollrathfoodservice.com for full warranty policy) |
