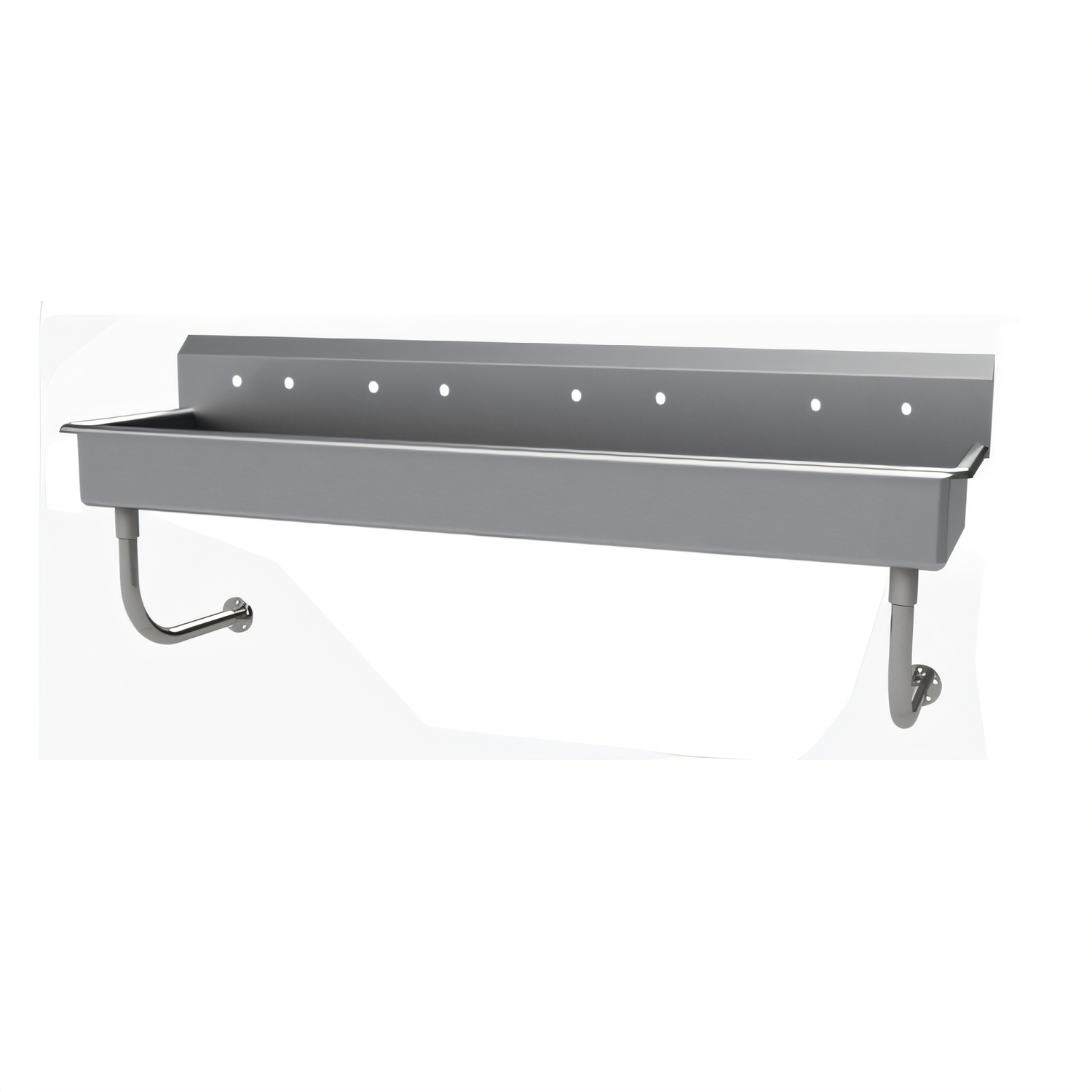

80 inches wide | 14-gauge 304 stainless steel | ADA compliant | NSF listed This Advance Tabco multi-station sink is designed for high-traffic environments that require exceptional sanitation. It offers exceptional durability, user comfort, and code compliance in a space-saving package. Pair this sink with Advance Tabco K-161-LU wrist-blade faucets or any 8-inch on-center splash-mount faucet set (sold separately).

Key Features:

• The sink has four hand-wash stations built into a single 80-inch body, allowing for high throughput without taking up too much wall space.
• The 5-inch bowl depth and 16-inch front-to-back clearance keep water contained while meeting ADA reach-depth requirements.
• The 8-1/2-inch integrated backsplash has four sets of 8-inch on-center faucet holes for splash-mount installations.
• The sink is made of extra-heavy, 14-gauge Type 304 stainless steel that is TIG welded and has a smooth satin finish.
• Each station includes a 3-1/2-inch rear basket drain (K-6 style).
• 1-5/8-inch tubular stainless steel wall supports and "Z" mounting brackets provide full knee clearance for ADA compliance.
• The wall-mounted design keeps the floor clear, making it easy to clean, and eliminates the need for legs.
• The sink is NSF certified for food-service sanitation and fully ADA compliant for forward reach, knee, and toe clearance.

Perfect For:

• Food preparation and cafeteria areas
• Healthcare facilities, laboratories, and veterinary clinics
• School cafeterias and classrooms
• Industrial production and packaging lines
• Pharmaceutical and other clean-pack environments

Quick Installation Snapshot:

• Attach the provided "Z" brackets to the wall studs or masonry at a height of 42-1/2 inches from the finished floor to the top of the bracket.
• Hang the sink on the brackets and connect the tubular wall supports.
• Install the 3-1/2 inch basket drain and connect it to the waste line.
• Mount any 8-inch on-center splash-mount faucets (with 3/8-inch NPT inlets) and connect the water supply.
