Description

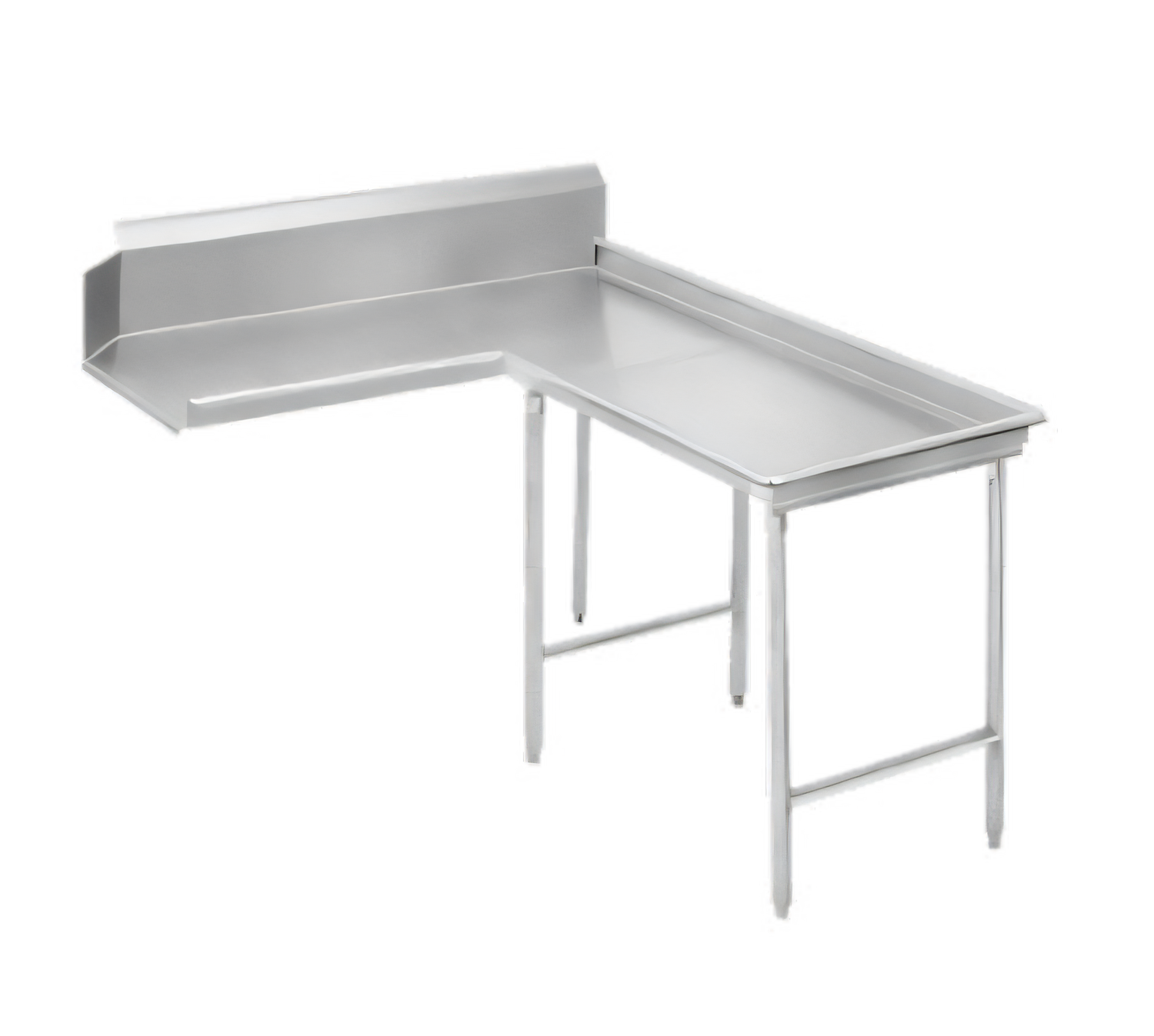

Advance Tabco DTC-G30-108R Compartment Sinks
Product Description
Model DTC-G30-108R | 14 ga 304 Stainless Steel Top
This heavy-duty dishtable from Advance Tabco is designed for commercial warewashing lines. Constructed with durable 14-gauge 304 stainless steel, it offers rugged performance and a fast, sanitary flow that keeps dishes moving away from the machine operator's right side. The Spec-Line model number is DTC-G30-108R, while the comparable standard gauge model is DTC-G70-108R.
Key Features:
- The table has an island-style, L-shaped design that attaches to the right side of a pass-through dish machine operator.
- It has a super-heavy 14-gauge, 304 series stainless steel top with blended TIG welds and a satin finish.
- The 59-inch leg has an extra-large 10.5-inch backsplash with a 2-inch sanitary return and a tile edge for easy wall sealing.
- The 1.625-inch diameter, 16-gauge 304 stainless steel legs have welded crossrails front-to-back for exceptional rigidity.
- Die-cast leg clamps secure the bracing without exposed nuts or bolts.
- Adjustable stainless steel bullet feet (1-inch height range) allow for leveling on uneven floors.
- The construction is NSF listed, making it ideal for high-volume food-service environments.
- Optional accessories (sold separately) include a stainless steel undershelf, wall shelf, and more.
Product Specs
| Specification | Value |
|---|---|
| Overall Length (Nominal “L”) | 107" (9 ft) |
| Orientation | Island Clean Right – fits to operator’s right |
| Top Material & Thickness | 304 SS, 14 ga |
| Legs | 1 -5/8" Ø, 304 SS, 16 ga |
| Leg Bracing | Welded stainless steel crossrails (front-to-back) |
| Backsplash | 10-1/2" H x 59" L with 2" return & tile edge (clean side) |
| Feet | Stainless bullet feet, 1" adjustable |
| Approx. Weight | 310 lb |
| Certifications | NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | Advance Tabco |
| Height | 44.0in |
| Shipping Weight | 290.0lbs |
| Direction | left to right |
| Stainless Gauge | 14 gauge |
| Leg Type | stainless steel legs |
| Width (machine - corner) OA | 49" - 60" |
| Splash Height | 10"H splash |
| Shape | island |
| Width (end - corner) OA | 97" - 108" |
| Stainless Series | 300 series |
| Specifications | Island-Clean Dishtable, island style, L-shaped, attaches to right of dish machine operator, 10-1/2" backsplash on 59" side only, with 2" return, stainless steel legs with crossrails front to back, 107" long, 14 gauge 304 stainless steel |
