Description

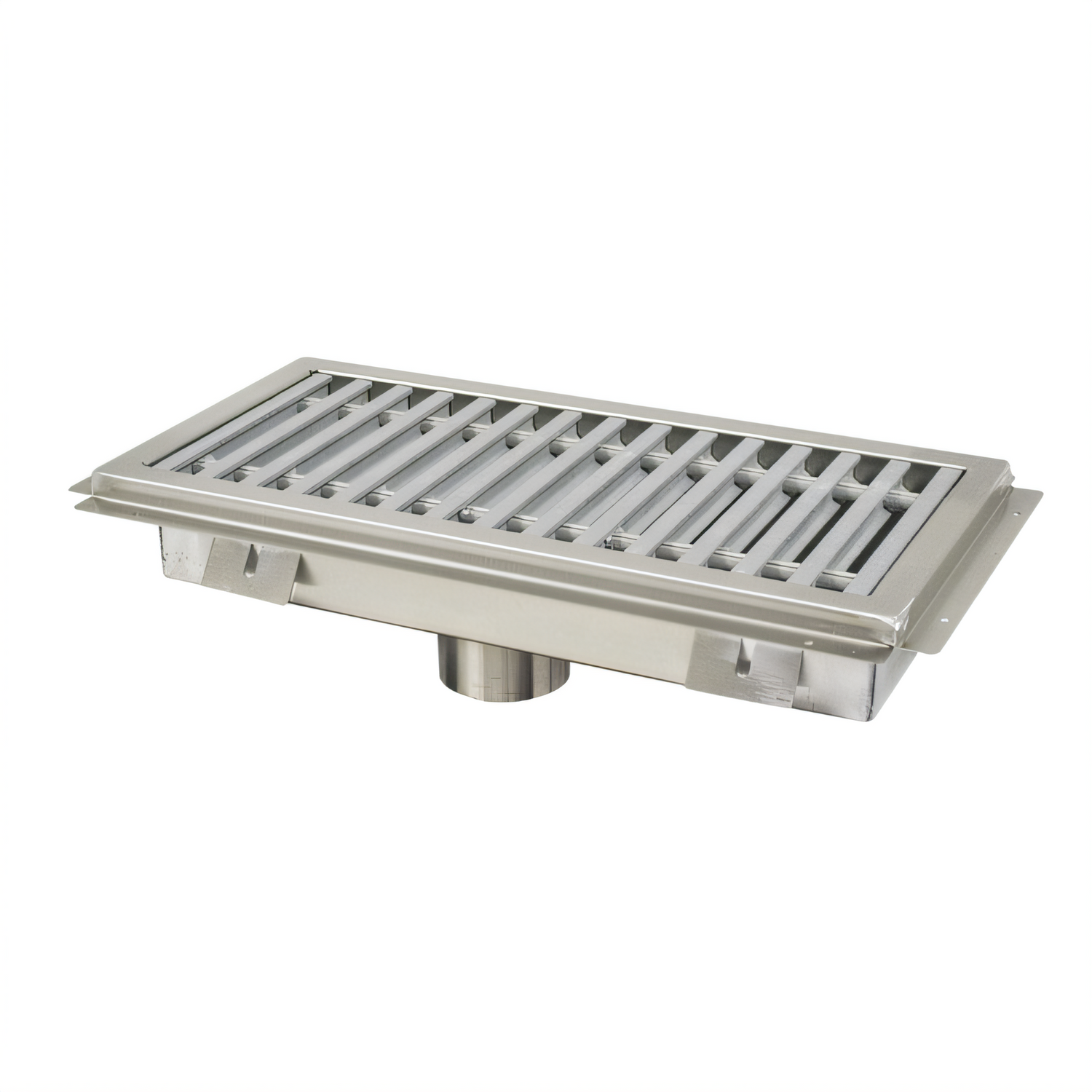

Advance Tabco FFTG-1854 Commercial Faucets & Plumbing
Product Description
This 54-inch Advance Tabco floor trough is engineered for busy commercial kitchens, food-processing plants, and wet prep areas, keeping your floors safe, dry, and code-compliant. The rugged 14-gauge type 304 stainless steel body, lightweight non-slip fiberglass grating, and built-in 4-inch OD drain sleeve provide years of worry-free service. Advance Tabco can also fabricate custom troughs in different sizes and drain configurations to fit your specific project needs.
Why You'll Love It:
- Durable stainless steel trough: Made from heavy-duty 14-gauge 304 stainless steel, fully TIG welded with satin-polished corners for long-lasting performance.
- Non-slip grate: The fiberglass "Subway Style" grate has a gray composite construction with 5/8" x 1" bars and a medium grit surface. The 7/8" spacing allows for excellent water flow.
- Removable strainer basket: The stainless steel strainer basket can be easily removed to prevent food debris from reaching the drain line.
- Integrated plumbing sleeve: The 4" O.D. x 3"L plumbing sleeve accepts standard 4" waste pipe, and the trough is factory-pitched toward the waste for rapid drainage.
- Tile-ready design: The 3/4" vertical step on the perimeter flange allows floor tile to sit flush with the grate, creating a seamless, trip-free surface.
- Single-drain design: For models 95" and shorter, the single-drain design simplifies installation and maintenance.
- NSF listed: This product is NSF listed for use in foodservice environments, ensuring it meets safety and sanitation standards.
Optional Accessories (sold separately):
- FT-1 Anti-Splash Guard (factory installed, per foot)
- FT-2 Replacement strainer basket
- FT-3 Custom trough depth (2" to 6" deep, per foot)
- FT-4 Alternate drain outlet size (2" to 8" diameter)
- FT-5 Americans with Disabilities Act (A.D.A.) compliant stainless steel grate (7/16" gap, per foot)
- FTG Series stainless steel "Subway Style" grate upgrade
Product Specs
| Specification | Value |
|---|---|
| Model | FFTG-1854 |
| Overall length | 54" (56" flange-to-flange) |
| Overall width | 18" (20" flange-to-flange) |
| Trough depth | 4" |
| Grate material | Fiberglass composite, non-slip medium-grit |
| Trough material | 14-ga type 304 stainless steel |
| Drain outlet | 1 × 4" O.D. sleeve, 3" long |
| Weight | ≈ 76 lb |
| Certifications | NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | Advance Tabco |
| Certifications | NSF |
| Height | 4.0in |
| Width | 54.0in |
| Depth | 18.0in |
| Shipping Weight | 76.0lbs |
| Width (long side) | 49" - 60" (5 ft) |
| Depth (short side) | 18" |
| Grate Construction | fiberglass grates |
| Trough Construction | 14 ga stainless steel trough |
| Deep (pan depth) | 4" |
| Pan Type | non anti-splash |
| Grate Type | subway-style grating |
| Specifications | Floor Trough, 54"W x 18"D x 4" deep, with fiberglass grating, stainless steel removable strainer basket, 4" O.D. waste pipe 3"L, pitched towards waste, NSF |
