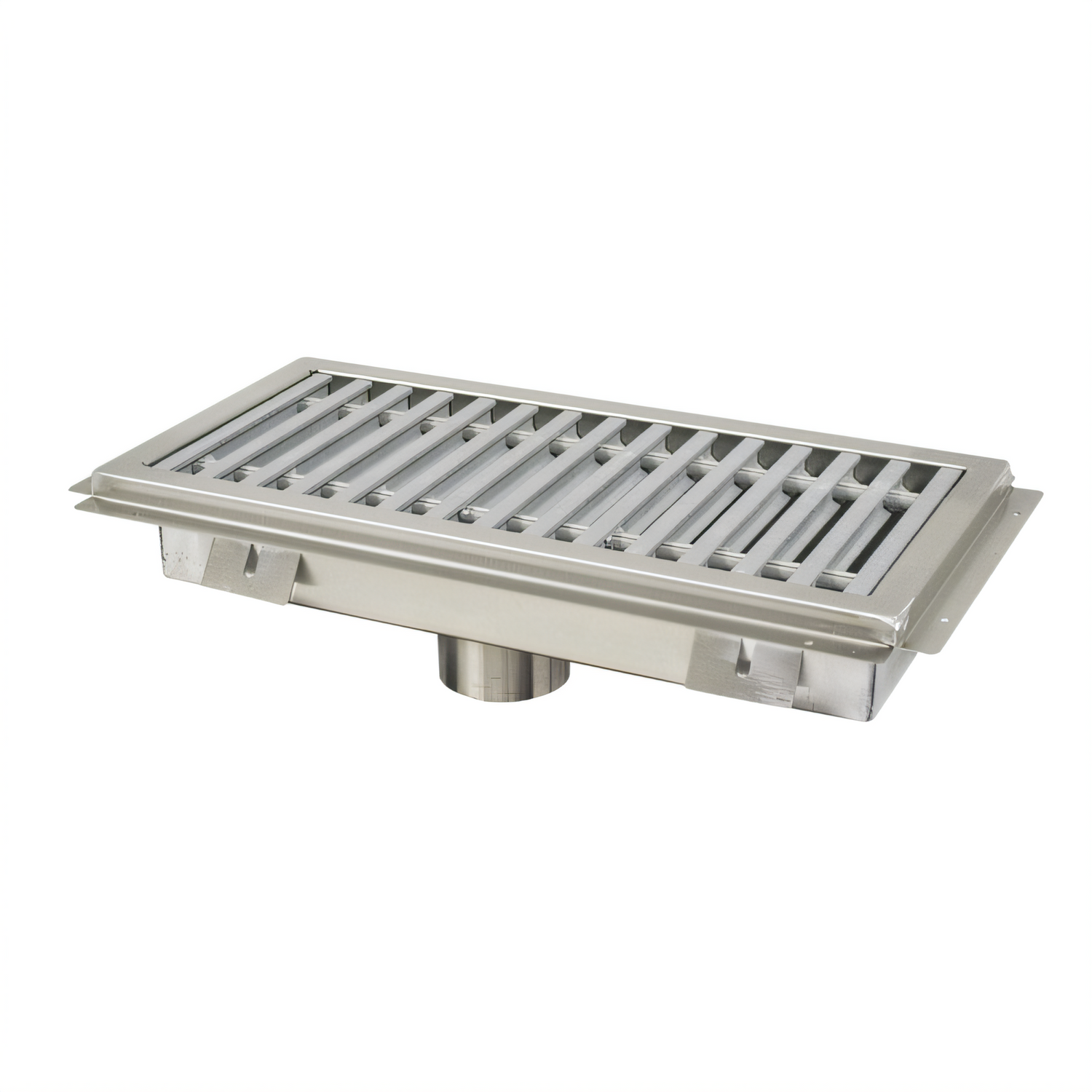

The Advance Tabco Model FFTG-2454 is a heavy-duty floor trough designed for high-traffic wet zones. It features a 14-gauge 304 stainless steel body and a lightweight, non-slip fiberglass grate. The creased floor and built-in pitch help expedite drainage to the included 4-inch outlet, promoting a cleaner and safer workspace. Advance Tabco also offers custom-fabricated troughs to meet various specifications through their Smart Fabrication service.

Key Features:

• It is approved by the National Sanitation Foundation (NSF) for use in food service and hygiene applications.
• The trough is made of 14-gauge type 304 stainless steel, with TIG-welded and satin-polished seams.
• The trough dimensions are 54" L × 24" W × 4" D, with a single-drain design for runs under 95".
• The "Subway Style" fiberglass grate has a medium-grit, non-slip surface with 5/8" × 1" openings and 7/8" spacing.
• The removable strainer basket is made of perforated stainless steel and has a carry handle.
• The plumbing sleeve is 4" O.D. × 3" L, and no adaptor rings are required.
• The creased floor and ¼" pitch ensure rapid and complete drainage.
• The integrated ¾" vertical tile flange allows for a flush, leak-free floor installation.

Ideal For:

• Commercial kitchens and dish rooms where food is prepared and cleaned.
• Food and beverage processing plants that require a durable, high-performance flooring solution.
• Breweries, wineries, and distilleries that need a flooring system to withstand wet and corrosive environments.
• Locker rooms, shower areas, and gyms that require a slip-resistant and easy-to-clean flooring option.
• Supermarkets and butcher shops that need a flooring system that can handle heavy foot traffic and potential spills.

What's Included:

• The product comes with factory-installed fiberglass grate panels.
• It includes a stainless steel removable strainer basket.
• The product has a perimeter mounting flange.
• Installation and maintenance instructions are provided.

Optional Upgrades:

• The FT-1 anti-splash guard is priced per foot and can be factory-installed.
• The FT-2 replacement strainer basket is available.
• The FT-5 A.D.A. compliant grate has 7/16" openings.
• We can customize the depth of the product, ranging from 2" to 6". We can also provide alternate outlet sizes, from 2" to 8". Please contact us for more details.
