Description

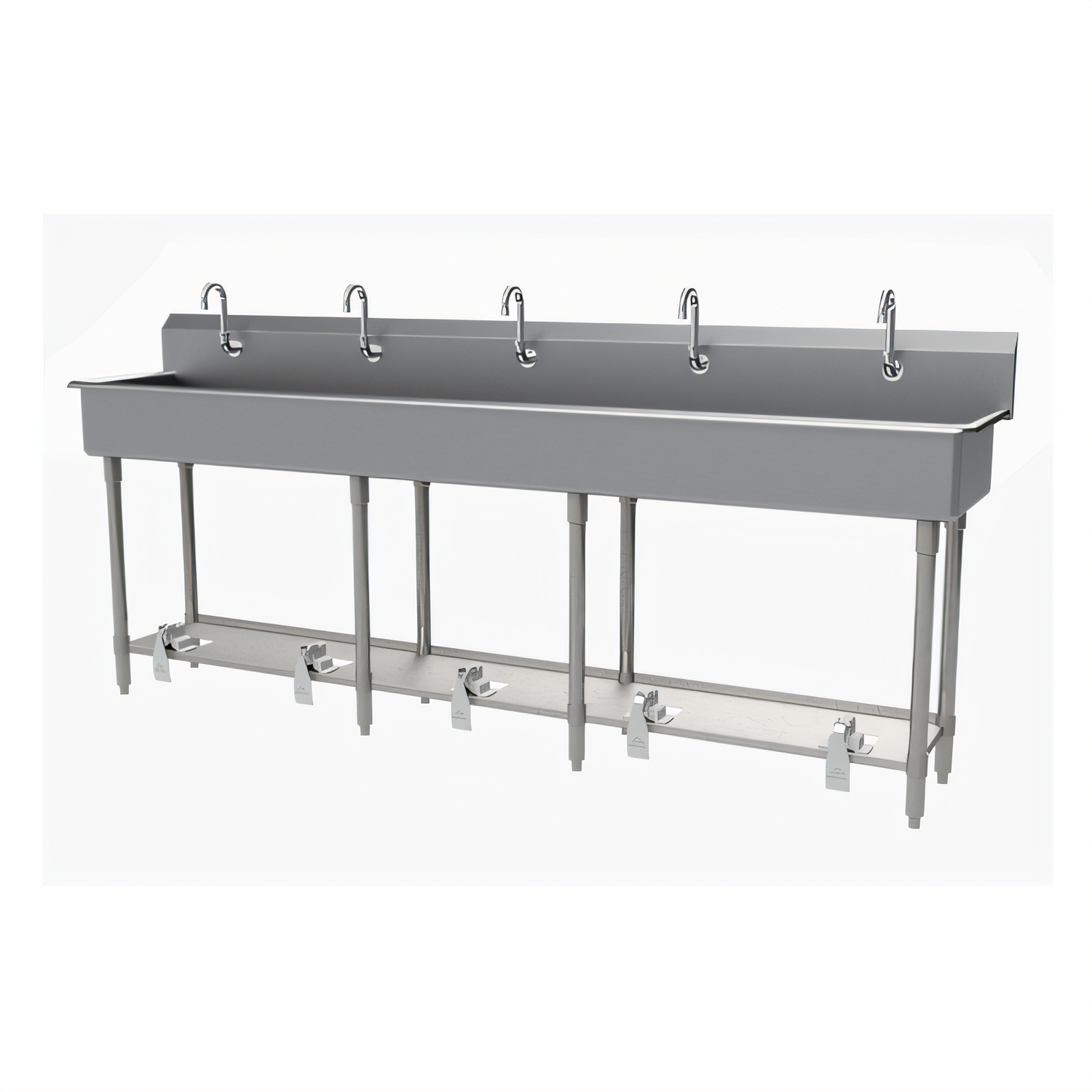

Advance Tabco FS-FM-100FV Hand Sinks
Product Description
100" floor-mounted multi-wash station with 14-gauge type 304 stainless steel construction. Engineered for high-volume hand-washing, this unit offers rugged performance, sanitary design, and true hands-free operation. Five independent stations, each with its own toe-push valve and splash-mount gooseneck spout, help your team move quickly while maintaining food-safety and HACCP compliance. Contact our product specialists for custom sizing, additional plumbing details, or ADA compliance guidance.
Features:
- Allows hands-free operation with a toe-push, includes five K-104 valves and a pedal bracket support.
- Features five K-121 splash-mount 3 ½" gooseneck spouts that are pre-punched in the backsplash.
- Made of 14 gauge, type 304 stainless steel with a satin finish, designed to withstand daily use.
- Has an 8 ½" high backsplash that contains splashing and makes cleanup easier.
- The 16" front-to-back bowl has an 8" working depth for comfortable ergonomics.
- Includes 1 5/8" Ø tubular stainless steel legs with adjustable flanged feet for secure floor mounting.
- Comes with welded stainless "Z" wall brackets and an undershelf with a rear turn-up for added stability and storage.
- Includes two K-6 rear basket drains (3 ½") so you don't have to source them separately.
- Features TIG-welded construction, blended seams, and coved corners for easy cleaning and sanitation.
- NSF listed, and the faucet components meet NSF 61/9 and AB 1953 lead-free requirements.
Features:
- Designed for commercial and institutional kitchens
- Suitable for food processing and packaging facilities
- Ideal for breweries, wineries, and beverage production operations
- Applicable for laboratories and pharmaceutical facilities
- Suitable for schools, stadiums, and other high-traffic venues
Features:
- Includes a K-06 splash-mount faucet kit for easy installation.
- Comes with a K-13 stainless steel wall-mount soap dispenser for convenient access.
- Includes a K-411 strainer plate for a 3 ½" drain.
- Features TA-19 adjustable stainless steel bullet feet for stability.
- Offers a K-104 toe-push valve assembly and a K-121 gooseneck spout (sold individually).
Product Specs
| Specification | Value |
|---|---|
| Overall width | 100 in. (2540 mm) |
| Overall depth | 19 1/2 in. (495 mm) |
| Overall height | 42 1/2 in. (1080 mm) to top of backsplash |
| Bowl size (ea.) | 16 in. front-to-back × 8 in. deep |
| Backsplash height | 8 1/2 in. |
| Stations | 5 individual hand-wash stations |
| Operation | Toe-push valves (foot pedal) |
| Faucet provision | Splash-mount, single hole x 5, pre-punched |
| Material thickness | 14 ga. (2.0 mm) type 304 stainless steel |
| Shipping weight | Approx. 226 lb (103 kg) |
| Certifications | NSF, NSF 61/9, AB 1953 |
Features
| Specification | Value |
|---|---|
| Manufacturer | Advance Tabco |
| Certifications | NSF |
| Height | 42.5in |
| Width | 100.0in |
| Depth | 19.5in |
| Shipping Weight | 208.0lbs |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Height (rim to drain) | 8" deep |
| Faucet | faucet included |
| Bowl Width (left to right) | 20" & up |
| Style | freestanding |
| Features | multi-station |
| Specifications | Multiwash Hand Sink, splash mount faucet provision, with toe-operated push valve, 100"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (5) single faucet holes, gooseneck spouts, includes stainless steel legs & flanged feet, pedal bracket support, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, NSF |
