Description
Advance Tabco FC-WM-120EFADA Hand Sinks
Product Description

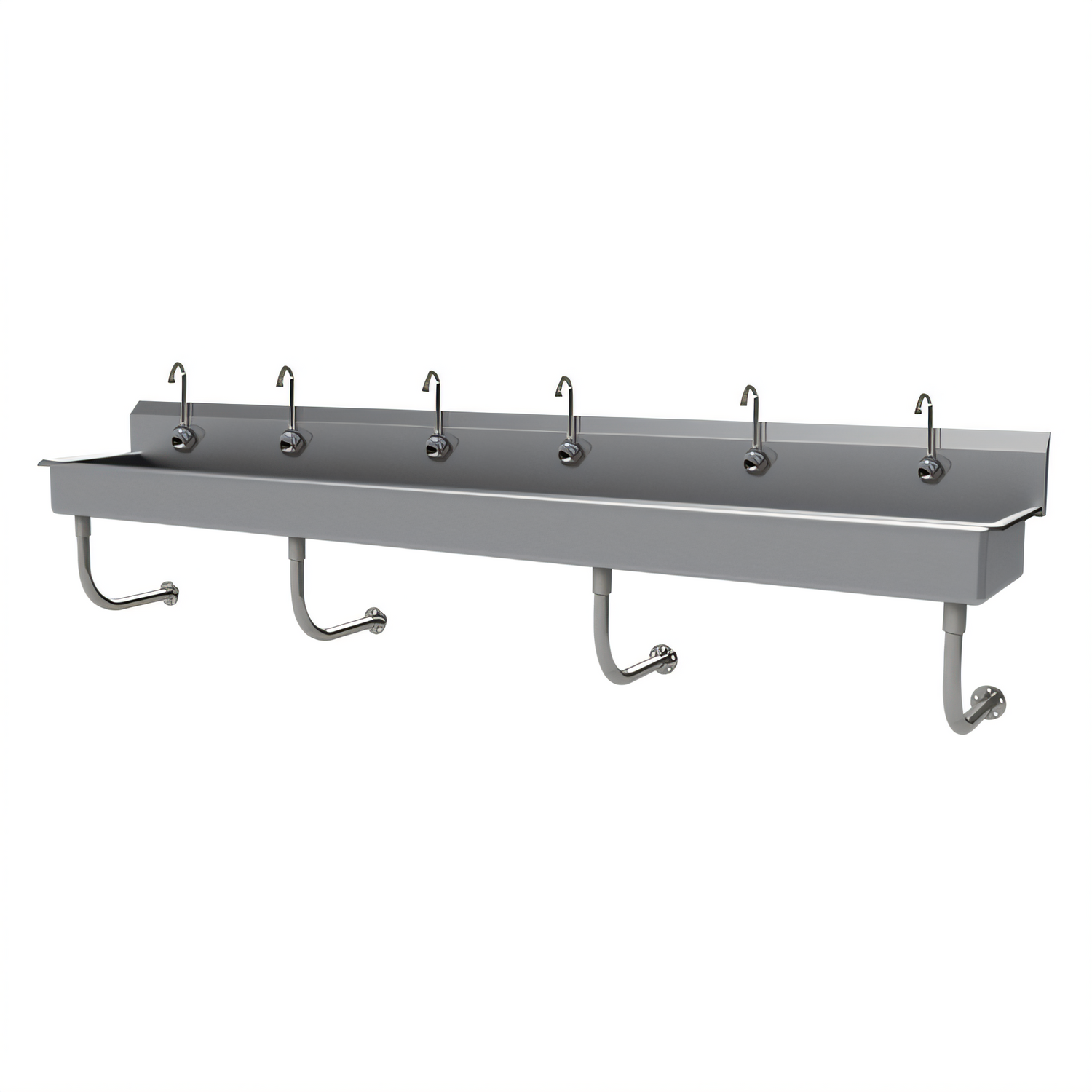

This 120" wall-mounted, ADA-compliant multi-user sink with hands-free K-175 faucets is engineered for high-volume hygiene in foodservice, healthcare, and industrial settings. The 6-station Advance Tabco sink couples rugged 16 gauge 304 stainless steel with smart, touch-free operation. The fully welded unit ships ready to mount, plumb, and power, delivering decades of sanitary, code-compliant performance while keeping the floor completely clear for easy cleaning and wheelchair access. Advance Tabco offers the full FC-WM/FS-WM series in 2- through 6-station configurations, 8" or 5" bowl depths, and manual, knee, or toe-operated valves to meet your specific needs.
Key benefits:
- Six (6) hands-free, touch-free faucets with infrared sensors for easy activation.
- ADA-compliant 5-inch deep bowl and open under-sink clearance for accessibility.
- 120-inch one-piece sink body that can serve up to six users at once, ideal for high-traffic areas.
- Durable 16-gauge type 304 stainless steel construction, TIG-welded and satin-finished to resist corrosion, scratches, and chemical cleaners.
- 8.5-inch integral backsplash to contain splashes and accommodate wall-mounted soap or sanitizer dispensers.
- Three (3) 3.5-inch rear basket drains (K-6) for faster water evacuation and easy debris removal.
- Sturdy installation with heavy-duty stainless "Z" brackets and tubular wall supports for a rock-solid, floating mount.
- Single faucet hole punched at each station, no extra drilling or field modification required.
- Includes UL-listed 100–240 VAC control boxes and 6-foot power cords; low-flow 0.5 GPM aerators available.
- NSF certified and fully compliant with Prop 65, ADA, and ANSI A117.1 standards.
Product Specs
| Specification | Value |
|---|---|
| Overall width | 120 in. (3048 mm) |
| Overall depth | 19-1/2 in. (495 mm) |
| Overall height | 25-1/2 in. (648 mm) to rim |
| Bowl size (each station) | 16 in. front-to-back × 5 in. deep |
| Backsplash height | 8-1/2 in. |
| Number of stations / faucets | 6 stations / 6 K-175 electronic faucets |
| Drain outlets | (3) 3-1/2 in. rear basket drains (K-6) |
| Material & finish | 16 ga. type 304 SS, satin finish |
| Mounting method | Wall-mount “Z” brackets with tubular SS supports |
| Certifications | NSF, ADA (ANSI A117.1), UL (controls), Prop 65 |
Features
| Specification | Value |
|---|---|
| Manufacturer | Advance Tabco |
| Certifications | NSF, ADA Compliant |
| Height | 25.5in |
| Width | 120.0in |
| Depth | 19.5in |
| Shipping Weight | 146.0lbs |
| Features | multi-station |
| Style | wall mounted |
| Bowl Height (rim to drain) | 5" deep |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Width (left to right) | 20" & up |
| Faucet | faucet included |
| Specifications | Multiwash Hand Sink, splash mount faucet provision, wall mounted, with (6) electronic faucets, 120"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (6) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF, ADA compliant |
