Description

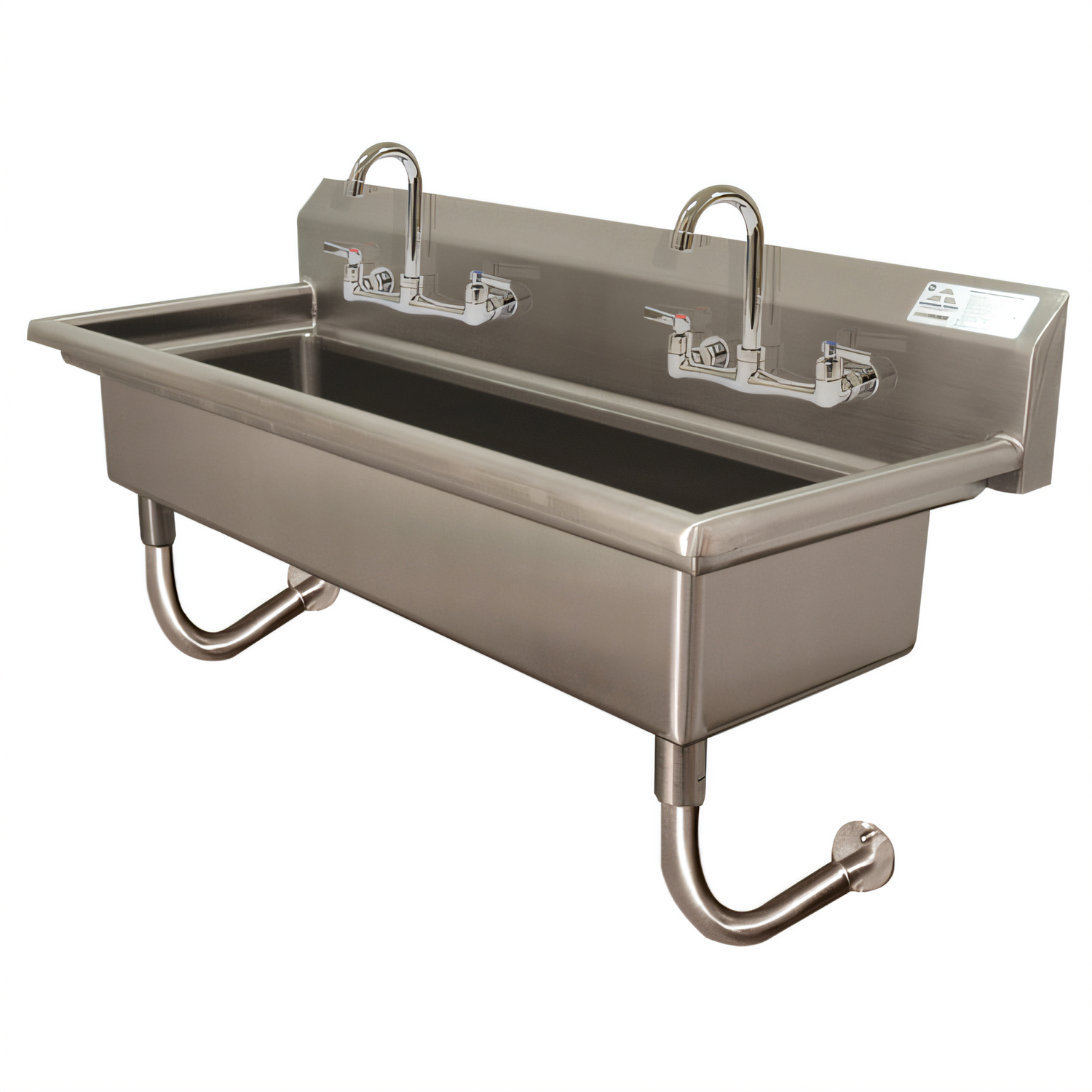

Advance Tabco FS-WM-40-F Hand Sinks
Product Description
The Advance Tabco Model FS-WM-40-F is a durable 2-station hand-washing sink designed for high-traffic commercial environments. Spanning 40 inches in width, this multi-station sink is NSF-listed and ideal for use in commercial kitchens, food preparation areas, and industrial workspaces, offering simple installation and reliable performance to meet all your hand-washing needs.
Key Features:
- The sink comes with two K-159 manual gooseneck faucets that have an 8-inch center spacing and are designed for splash-mount installation.
- The wide 40-inch sink allows two users to use it simultaneously.
- The sink is made of 14-gauge type 304 stainless steel that has been TIG-welded and satin-finished.
- The sink bowl is 16 inches front-to-back and 8 inches deep, providing ample hand-washing clearance.
- The 8.5-inch high integrated backsplash helps prevent wall damage.
- The sink has two sets of 8-inch on-center faucet punchings, allowing for quick and easy faucet replacement.
- Each bowl includes a 3.5-inch K-6 rear basket drain.
- The sink is supported by heavy-duty tubular stainless steel and "Z" wall brackets, providing full underneath clearance.
- The sink is NSF certified for hand-sink applications.
Installation Highlights:
- Attach the "Z" brackets 42 and a half inches above the finished floor, then slide the sink into place.
- Connect the hot and cold water supply lines, which are half an inch wide, to the faucets. Also, connect the 1 and seven-eighths inch drain outlet to the waste line.
- The full clearance underneath the sink makes it easy for people with disabilities and janitorial staff to access the area.
Product Specs
| Specification | Value |
|---|---|
| Overall Width | 40" (1016 mm) |
| Overall Depth | 19 ½" (495 mm) |
| Overall Height | 29 ½" (749 mm) to top of backsplash |
| Bowl Size (each) | 16" W × 16" F/B × 8" D |
| Backsplash Height | 8 ½" |
| Material / Gauge | 304 stainless steel, 14 ga. sink & splash |
| Stations / Faucets | 2 stations | 2 included gooseneck faucets |
| Faucet Punchings | (2) sets, 8" on-center |
| Drain | 3 ½" K-6 rear basket drain |
| Mounting | Wall-mount with tubular S/S supports & “Z” brackets (supplied) |
| Certifications | NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | Advance Tabco |
| Certifications | NSF |
| Height | 29.5in |
| Width | 40.0in |
| Depth | 19.5in |
| Shipping Weight | 81.0lbs |
| Bowl Height (rim to drain) | 8" deep |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Width (left to right) | 20" & up |
| Faucet | faucet included |
| Features | multi-station |
| Style | wall mounted |
| Specifications | Multiwash Hand Sink, splash mount faucet provision, wall mounted, includes (2) faucets, 40"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF |
