Description

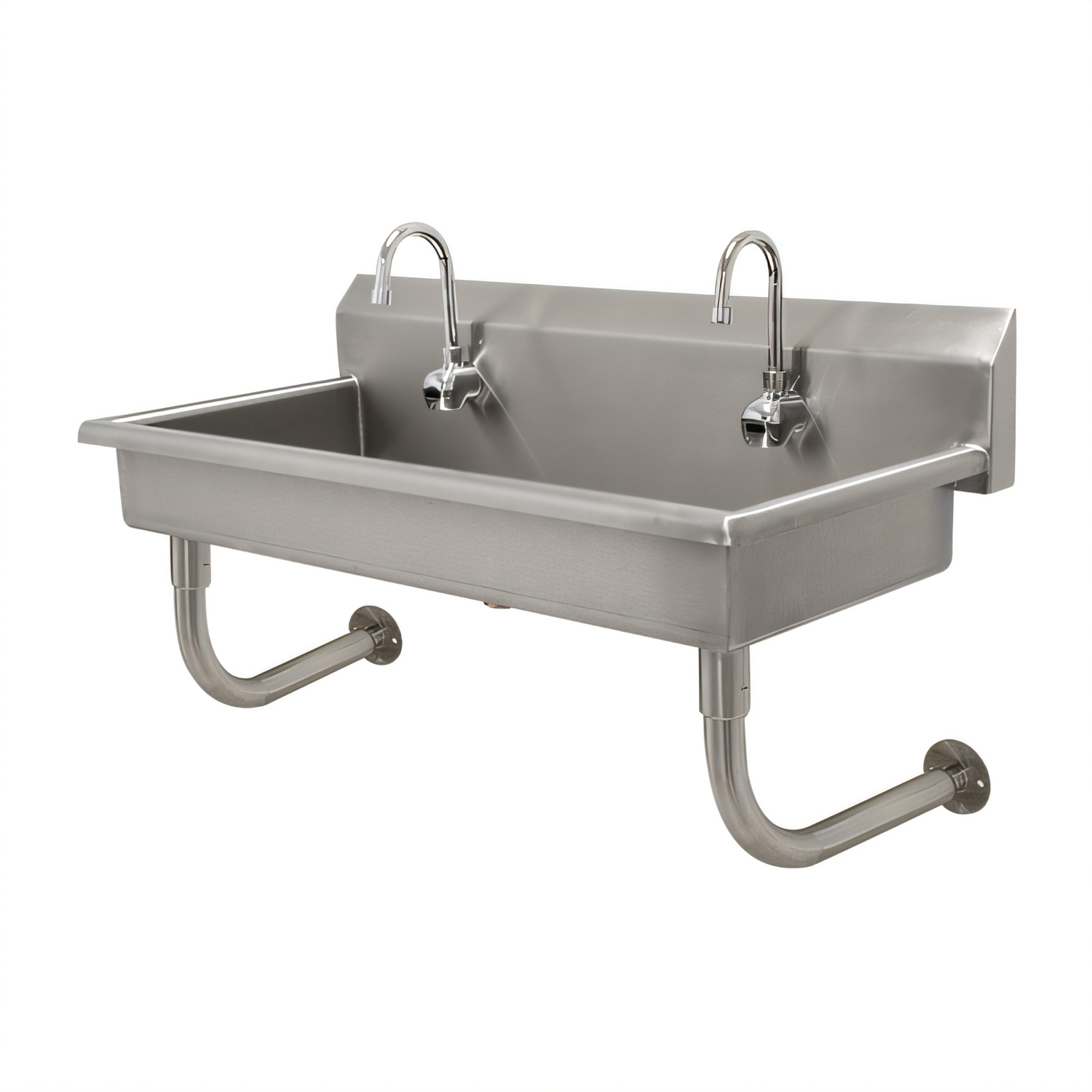

Advance Tabco FS-WM-40EFADA Hand Sinks
Product Description
Model FS-WM-40-EFADA • 14 ga 304 Stainless Steel
This 2-station wall-mounted sink provides a hygienic solution for staff, guests, and inspectors. The compact ADA-compliant bowl is paired with touch-free K-175 faucets, making it ideal for foodservice prep areas, healthcare labs, and any high-traffic workplace that demands dependable hand-washing performance.
If you need a different length, station count, or gauge, contact us for custom Advance Tabco Smart Fabrication™ quotes.
Key Features:
- The sink includes two hands-free, electronic, splash-mount faucets with 2.2 gallons per minute swing spouts, allowing for easy, touchless operation.
- The 5-inch deep sink bowl is ADA compliant and has an open underspace to accommodate wheelchair access.
- The sink is made of heavy-duty, 14-gauge, type 304 stainless steel that is TIG-welded and satin-finished, ensuring superior durability and easy cleaning.
- The 8.5-inch high integral backsplash contains splashes and protects the walls.
- The 3.5-inch rear basket drain (K-6) keeps debris out of the plumbing system.
- The 1.625-inch tubular stainless steel wall supports provide full floor clearance for easy janitorial access.
- The sink is pre-punched with a single faucet hole at each station, allowing for quick installation.
- The sink and faucets are NSF listed and conform to NSF/ANSI 61, Section 9 – Lead-Free standards.
- The included UL-listed solenoid/control box with a universal 100-240V adapter (6-foot cord) is provided.
Why Choose Advance Tabco?:
- Advance Tabco is a leading U.S. manufacturer with over 60 years of experience in stainless steel fabrication.
- Their smart work-saving design ships with the bowl and brackets fully welded, eliminating the need for field assembly.
- Advance Tabco products are backed by nationwide service and a full line of replacement faucet parts, ensuring reliable support.
Product Specs
| Specification | Value |
|---|---|
| Stations | 2 |
| Overall Dimensions | 40" W × 19 1/2" D × 25 1/2" H |
| Bowl Size (each) | 16" front-to-back × 5" deep, continuous trough style |
| Backsplash Height | 8 1/2" |
| Material | 14 ga type 304 stainless steel |
| Mounting | Wall mount with tubular stainless steel support brackets |
| Drain | 3 1/2" rear basket drain (included) |
| Faucets | (2) Advance Tabco K-175 electronic, splash-mount, 2.2 GPM (optional .5 GPM aerator) |
| Power Requirement | 100-240 VAC, < 1 A (adapter furnished) |
| Certifications | NSF, ADA, UL (control box), Lead-Free |
| Finish | Satin stainless steel |
Features
| Specification | Value |
|---|---|
| Manufacturer | Advance Tabco |
| Certifications | NSF, ADA Compliant |
| Height | 25.5in |
| Width | 40.0in |
| Depth | 19.5in |
| Shipping Weight | 65.0lbs |
| Style | wall mounted |
| Features | multi-station |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Width (left to right) | 20" & up |
| Faucet | faucet included |
| Bowl Height (rim to drain) | 5" deep |
| Specifications | Multiwash Hand Sink, splash mount faucet provision, wall mounted, with (2) electronic faucets, 40"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (2) single faucet holes, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF, ADA compliant |
