Description

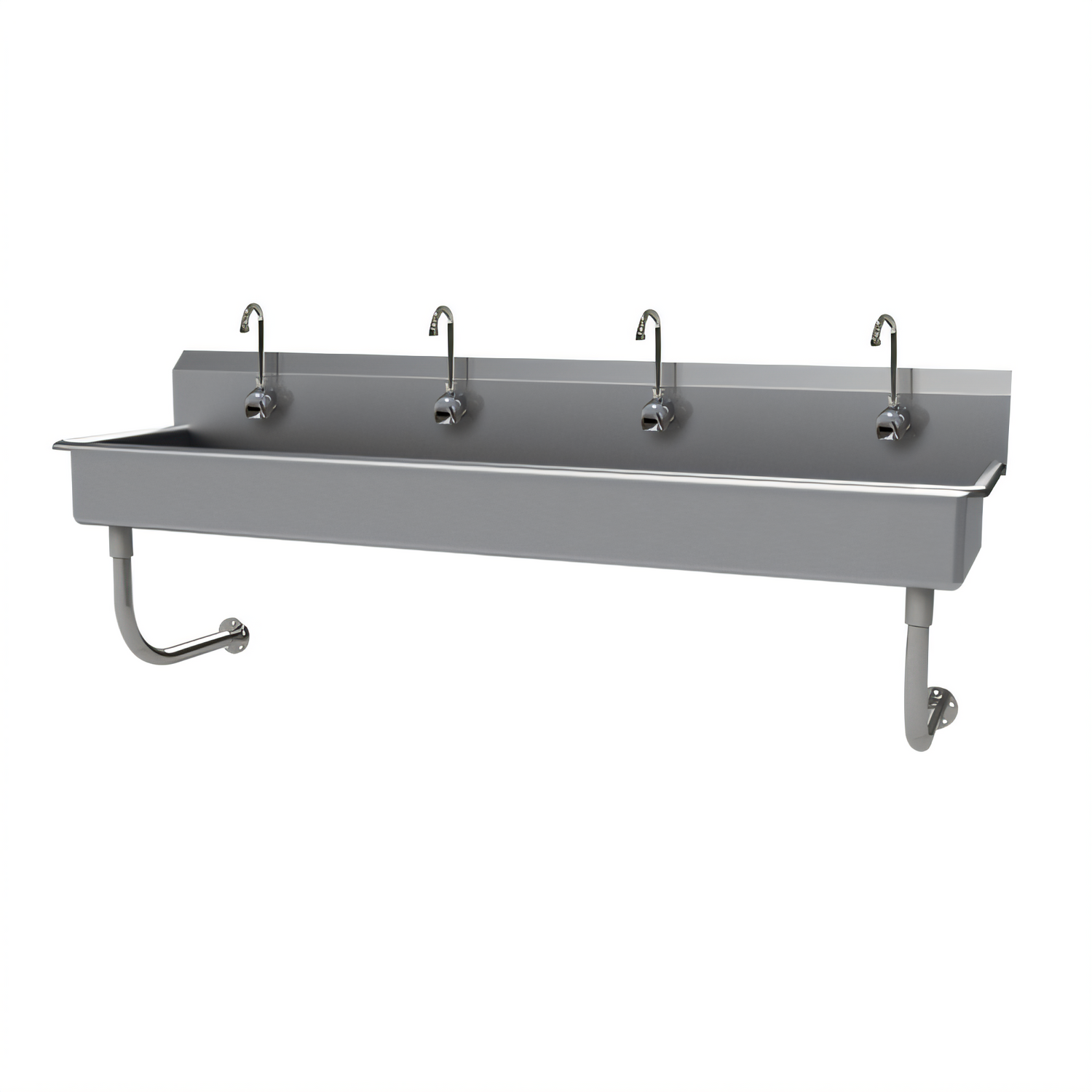

Advance Tabco FS-WM-80EFADA Hand Sinks
Product Description
This wall-mounted sink is designed to meet ADA accessibility requirements, making it ideal for high-traffic workspaces. Crafted from durable 14-gauge 304 stainless steel, the unit features four hands-free electronic faucets to promote sanitation and safety. The sink is well-suited for use in food service, healthcare, laboratory, and industrial settings, providing the necessary knee clearance specified by the Americans with Disabilities Act. It is recommended to position the top of the included wall brackets 42 1/2 inches above the finished floor, but always verify local codes before installation.
Why You'll Love It:
- The four NSF-listed K-175 electronic faucets allow for hands-free operation, reducing the risk of cross-contamination.
- The 5-inch bowl depth and open tubular wall supports meet ADA requirements, ensuring accessibility.
- The rugged 14-gauge type 304 stainless steel construction is TIG-welded and satin-finished, built to last a lifetime.
- The one-piece 8 1/2-inch backsplash contains splashes and simplifies wall cleaning.
- The single rear 3 1/2-inch basket drain streamlines plumbing while preventing debris clogs.
- The factory-punched single faucet hole at each station allows for fast and accurate installation.
- The supplied "Z" brackets and tubular wall supports provide rock-solid mounting with full floor clearance.
- The universal power supply (100–240 VAC) and control box are included, allowing you to simply plug in and go.
Package Contents:
- A 4-station sink body made by Advance Tabco, model FC-WM-80-EFADA.
- 4 electronic splash-mount faucets with swing spouts, model K-175.
- A UL-listed control box and a multi-voltage power adapter.
- A 3 1/2-inch rear basket drain assembly.
- Stainless steel "Z" wall brackets and tubular wall supports.
- An installation and operation manual.
Certifications & Compliance:
- The product is NSF-listed for use in food service settings.
- The faucet components meet the NSF 61/9 standard for lead-free materials.
- The product complies with the 2010 ADA Standards, Section 306, which specifies requirements for knee and toe clearance.
Product Specs
| Specification | Value |
|---|---|
| Overall width | 80″ (203 cm) |
| Overall depth × height | 19 1⁄2″ D × 25 1⁄2″ H |
| Bowl size (each station) | 16″ F-B × 5″ D |
| Number of stations | 4 |
| Backsplash height | 8 1⁄2″ |
| Material / gauge | 304 stainless steel, 14 ga |
| Faucet type | (4) K-175 splash-mount, sensor-activated, 2.2 GPM |
| Drain | Single 3 1⁄2″ K-6 rear basket drain (included) |
| Mounting | Wall mount on stainless “Z” brackets & tubular supports |
| Certifications | NSF, NSF 61/9 lead-free, ADA compliant |
| Power | 100–240 VAC adapter (UL-listed) to control box |
Features
| Specification | Value |
|---|---|
| Manufacturer | Advance Tabco |
| Certifications | NSF, ADA Compliant |
| Height | 25.5in |
| Width | 80.0in |
| Depth | 19.5in |
| Shipping Weight | 103.0lbs |
| Features | multi-station |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Width (left to right) | 20" & up |
| Style | wall mounted |
| Bowl Height (rim to drain) | 5" deep |
| Faucet | faucet included |
| Specifications | Multiwash Hand Sink, splash mount faucet provision, wall mounted, with (4) electronic faucets, 80"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (4) single faucet holes, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF, ADA compliant |
