Description

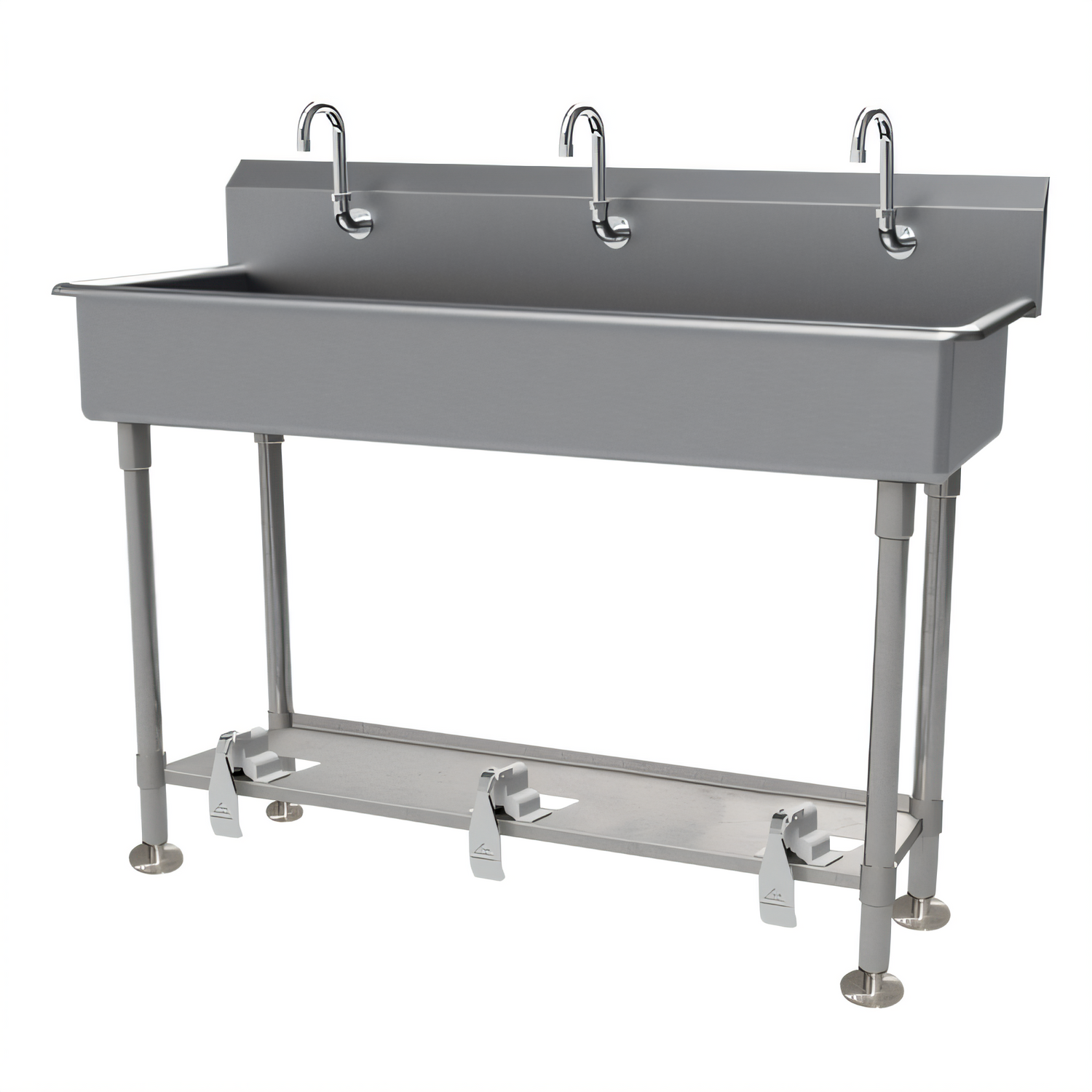

Advance Tabco FC-FM-60FV Hand Sinks
Product Description
The Advance Tabco FC-FM-60FV is a durable, hands-free washing solution designed for high-traffic food-service, healthcare, and industrial facilities. Featuring a rugged 16-gauge 304 stainless steel trough, an integrated 8.5-inch backsplash, and toe-activated valves, this floor-mounted unit allows three users to wash simultaneously, while maintaining a hygienic, code-compliant, and easy-to-maintain workspace.
Key features:
- Hands-free operation with three K-104 toe-push mixing valves and a linked pedal support rail
- Three pre-punched single holes in the backsplash with K-121 3 ½" gooseneck spouts included
- Durable 16-gauge type 304 stainless steel construction with an easy-to-clean satin finish
- Spacious 60-inch continuous bowl, 16 inches front-to-back and 8 inches deep
- 8 ½-inch high backsplash to protect surrounding walls from overspray
- 1 5/8-inch diameter tubular stainless steel legs with welded gussets and flanged feet for secure floor anchoring
- Rear 3 ½-inch basket drain (K-6) included for fast, clog-resistant drainage
- All TIG-welded seams blended to a seamless, sanitary finish
- Includes two stainless "Z" wall brackets and an under-bowl support shelf with a rear turn-up
- NSF listed, and faucets comply with NSF 61/9 and AB 1953 lead-free standards
Common applications:
- Sinks for hand-washing in restaurants and commercial kitchens
- Wash areas in food processing and packaging facilities
- Wash stations in laboratories or pharmaceutical production areas
- Wash stations in industrial manufacturing facilities
Optional accessories:
- Wall-mounted stainless steel soap dispenser
- Splash-mount faucet installation kit
- Strainer plate for 3 ½" drain
- Adjustable stainless steel bullet feet
- Replacement valve and pedal kits available (K-17, K-18, K-19)
Product Specs
| Specification | Value |
|---|---|
| Manufacturer / Model | Advance Tabco FC-FM-60FV |
| Stations | 3 |
| Overall dimensions | 60" W × 19 ½" D × 42 ½" H (to top of backsplash) |
| Rim height | 34" |
| Bowl size | 60" W × 16" F-B × 8" deep (continuous trough) |
| Backsplash | 8 ½" high, splash-mount faucet deck |
| Faucet provision | (3) single 1 ⅛" holes; includes (3) K-121 gooseneck spouts |
| Valve type | (3) K-104 toe-push mixing valves, 3⁄8" NPT female inlets |
| Drain | K-6 3 ½" rear basket drain (1 ½" IPS outlet) |
| Material & finish | 16 ga. type 304 stainless steel, satin polish |
| Legs / feet | 1 ⅝" Ø tubular 304 SS legs with flanged feet |
| Shipping weight | Approx. 129 lb / 30 cu. ft. |
| Certifications | NSF (sink & faucet), lead-free compliance |
Features
| Specification | Value |
|---|---|
| Manufacturer | Advance Tabco |
| Certifications | NSF |
| Height | 42.5in |
| Width | 60.0in |
| Depth | 19.5in |
| Shipping Weight | 118.0lbs |
| Features | multi-station |
| Faucet | faucet included |
| Bowl Width (left to right) | 20" & up |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Height (rim to drain) | 8" deep |
| Style | freestanding |
| Specifications | Multiwash Hand Sink, splash mount faucet provision, with toe-operated push valve, 60"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (3) single faucet holes, gooseneck spouts, includes stainless steel legs & flanged feet, pedal bracket support, 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, NSF |
