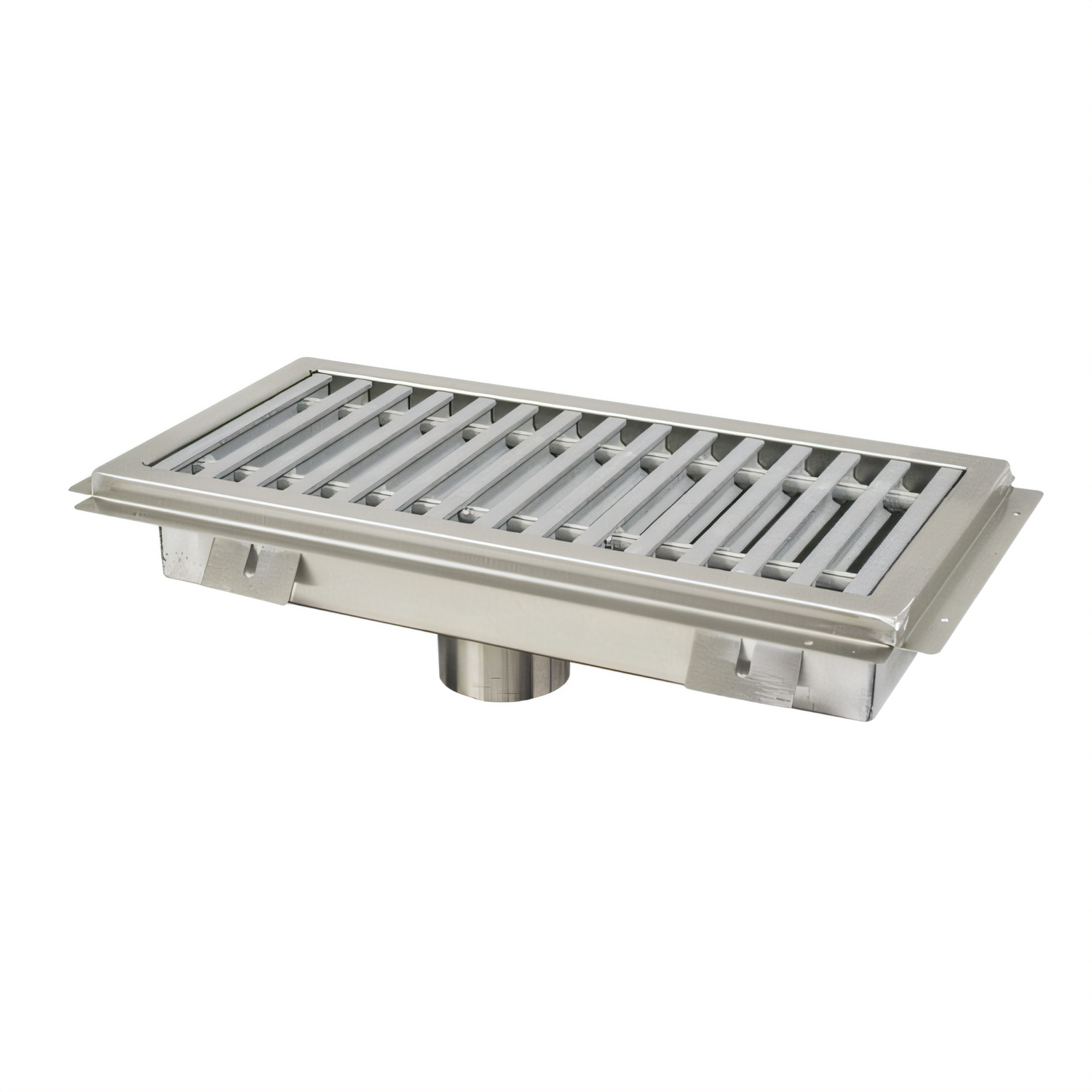

Advance Tabco FFTG-12108 Commercial Faucets & Plumbing
Product Description
Advance Tabco's 9-foot stainless steel floor trough provides a safe, sanitary, and efficient solution for high-traffic wash-down areas. Featuring a lightweight, non-slip fiberglass "subway style" grate and two 4-inch waste outlets with a pitch for rapid drainage, this floor trough is designed to meet the demands of facilities that require durability and easy maintenance. The NSF-listed product helps keep standing water at bay, promoting a clean and hazard-free environment.
Key Features:
- The drain is 108 inches (2743 mm) long, allowing it to handle large volumes of water runoff.
- The trough is made of 14-gauge type 304 stainless steel, which is TIG-welded with polished corners.
- The 4-inch deep design includes a 3/4-inch vertical tile ledge, enabling a flush finished-floor installation.
- The gray fiberglass composite grate has a "subway style" bar pattern with 7/8-inch inside clearance.
- The grate has a medium-grit, non-slip surface for improved safety.
- The lightweight and corrosion-resistant material makes the grate easy to lift for cleaning.
Why Fiberglass Grating?:
- Fiberglass grating is 40-50% lighter than stainless steel grating, making it easier to remove and reducing strain on the user.
- Fiberglass does not rust, pit, or dent, making it a great choice for areas where caustic wash-down chemicals are used.
- The textured surface of fiberglass grating helps prevent slips and falls, even when the surface is greasy or wet.
Included With Your Trough:
- The trough comes with a gray fiberglass grate that is split into two sections.
- It includes two stainless steel strainer baskets with handles.
- The trough has an integrated perimeter flange that allows for easy mounting.
Features:
- Splash guard to prevent water from splashing out (1 foot length).
- Custom trough depth ranging from 2 inches to 6 inches.
- Different drain outlet sizes available, from 2 inches to 8 inches.
- Grate designed to comply with ADA (Americans with Disabilities Act) standards, with a gap of 7/16 inch.
- Stainless steel grate instead of fiberglass.
Product Specs
| Specification | Value |
|---|---|
| Model | FFTG-12108 |
| Overall Length | 108" (2743 mm) |
| Inside Width | 12" (305 mm) |
| Trough Depth | 4" (102 mm) |
| Number of Drains | 2 (one per end, factory installed) |
| Drain Outlet | 4" O.D. sleeve × 3" L (accepts 4" waste pipe) |
| Grating Material | Gray fiberglass composite, medium grit |
| Trough Material | 14 ga 304 stainless steel |
| Weight | Approx. 99 lb (45 kg) |
| Certifications | NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | Advance Tabco |
| Certifications | NSF |
| Height | 4.0in |
| Width | 108.0in |
| Depth | 12.0in |
| Shipping Weight | 99.0lbs |
| Grate Construction | fiberglass grates |
| Trough Construction | 14 ga stainless steel trough |
| Width (long side) | 97"- 108" (9 ft) |
| Pan Type | non anti-splash |
| Deep (pan depth) | 4" |
| Grate Type | subway-style grating |
| Depth (short side) | 12" |
| Specifications | Floor Trough, 108"W x 12"D x 4" deep, with fiberglass grating, 4" O.D. waste pipe 3"L, pitched towards waste (NOTE:This unit supplied with 2 drain openings), NSF |
