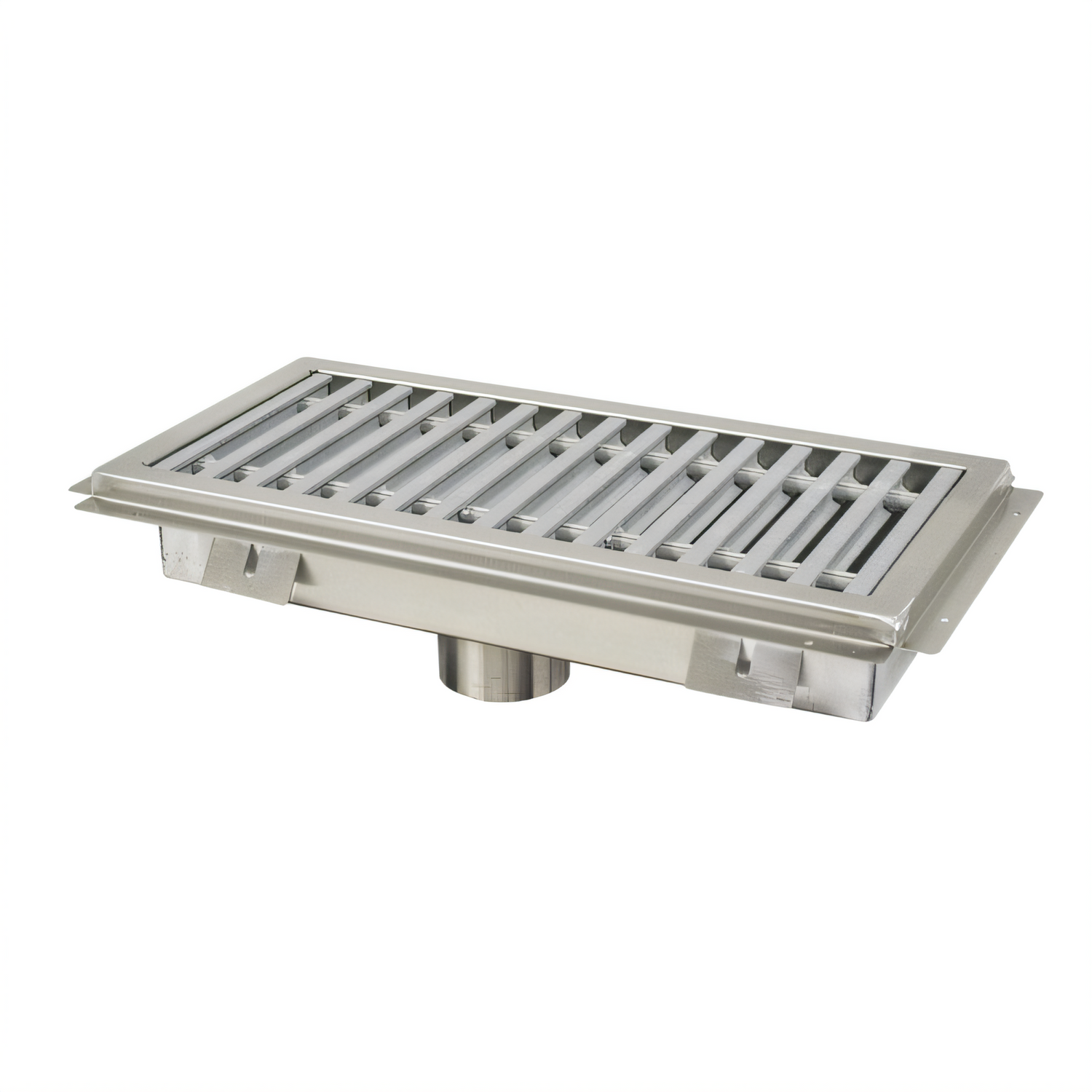

Advance Tabco FFTG-18108 Commercial Faucets & Plumbing
Product Description
This heavy-duty floor trough from Advance Tabco is built to keep prep areas clean, dry, and code-compliant. Crafted from durable 14-gauge 304 stainless steel and finished with a non-slip fiberglass grate, it is a ready-to-install solution for long runs in meat rooms, produce prep, dish rooms, breweries, and other wet-floor environments. The trough features two 4-inch diameter drains and is NSF listed.
Why You'll Love It:
- The 108-inch (9-foot) length eliminates the need for multiple shorter drains.
- The 18-inch internal width can handle heavy wash-down volumes without overflowing.
- The low 4-inch depth minimizes excavation while still meeting most plumbing codes.
- The NSF certification ensures it meets foodservice sanitation standards and passes inspections easily.
- The two 4-inch diameter, 3-inch long, TIG-welded drain sleeves speed up installation and prevent leaks.
- The perforated stainless-steel strainer baskets with convenient lift handles stop food scraps before they reach the plumbing, one for each drain.
- The creased floor pan is factory-pitched toward each drain, allowing for fast and complete evacuation.
- The 3/4-inch vertical perimeter flange drops below the finished tile, anchoring the trough and creating a clean grout line.
- The lightweight, corrosion-proof, and slip-resistant fiberglass "subway style" grate (with 7/8-inch spacing) is easier to handle than heavy bar grates.
Popular Accessories (Sold Separately):
- FT-1 anti-splash guard: This is a factory-installed guard that helps prevent splashing, priced per foot.
- FT-3 custom depth modification: This option allows you to customize the overall depth of the product, ranging from 2 to 6 inches.
- FT-5 A.D.A. compliant stainless grate: This grate meets the Americans with Disabilities Act (A.D.A.) standards, with a 7/16-inch gap.
- FT-2 replacement strainer baskets: These are replacement strainer baskets for the product.
Product Specs
| Specification | Value |
|---|---|
| Manufacturer / Series | Advance Tabco FFTG Series |
| Model Reference | FFTG-18108* |
| Overall Length | 108" (2743 mm) |
| Internal Width | 18" (457 mm) |
| Internal Depth | 4" (102 mm) |
| Drain Openings | 2 × 4" O.D. sleeves, 3" long |
| Grate Type | Non-slip fiberglass composite (gray), 7/8" inside spacing |
| Trough Material | 14-gauge 304 stainless steel, satin polish |
| Strainer Baskets | 2 × stainless steel, perforated, removable with handle |
| Compliance | NSF, UPC ready (plumber supplied P-trap/connection) |
| Shipping Weight | Approx. 138 lb / 63 kg |
Features
| Specification | Value |
|---|---|
| Manufacturer | Advance Tabco |
| Certifications | NSF |
| Height | 4.0in |
| Width | 108.0in |
| Depth | 18.0in |
| Shipping Weight | 138.0lbs |
| Grate Construction | fiberglass grates |
| Pan Type | non anti-splash |
| Deep (pan depth) | 4" |
| Grate Type | subway-style grating |
| Width (long side) | 97"- 108" (9 ft) |
| Depth (short side) | 18" |
| Trough Construction | 14 ga stainless steel trough |
| Specifications | Floor Trough, 108"W x 18"D x 4" deep, with fiberglass grating, 4" O.D. waste pipe 3"L, pitched towards waste (NOTE:This unit supplied with 2 drain openings), NSF |
