Description
Advance Tabco FFTG-18120 Commercial Faucets & Plumbing
Product Description

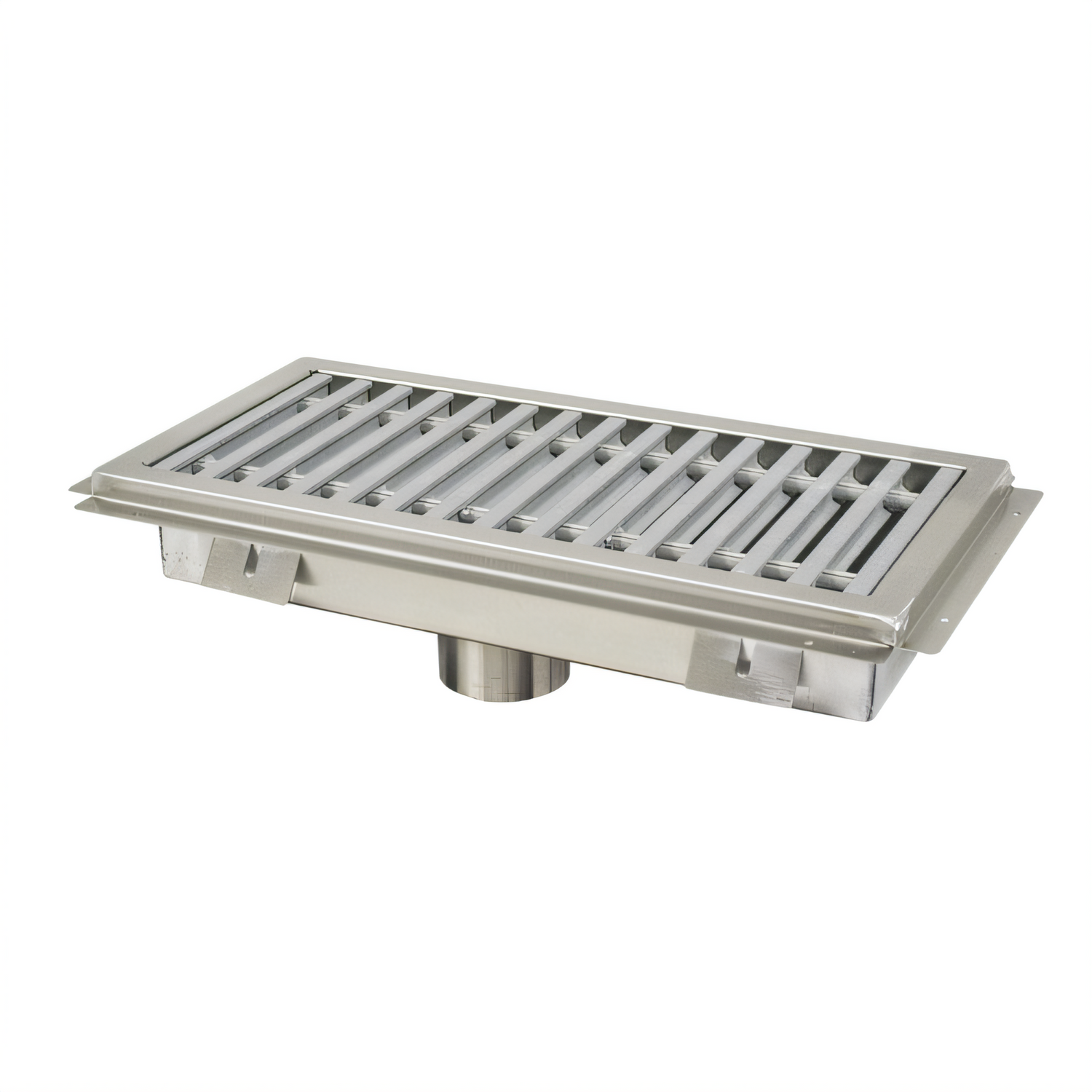

Advance Tabco's FFTG-18120 floor trough is designed for rugged, high-moisture environments. Crafted with a 14-gauge stainless steel body, it features a lightweight, non-slip fiberglass grate and removable strainer baskets to capture and safely direct runoff water into two 4-inch drains. This 10-foot trough is the professional's choice for commercial kitchens, food processing plants, breweries, and other areas requiring effective drainage solutions. Longer units come standard with two drains, and all dimensions have a typical manufacturing tolerance of ±0.5 inches.
Why You'll Love It:
- The extra-long 120-inch length of this product allows it to span large prep lines and equipment banks.
- The 18-inch wide, 4-inch deep channel is designed to handle high-volume water discharge.
- It features two integral 4-inch diameter by 3-inch long waste sleeves that speed up drainage and simplify the tie-in to existing plumbing.
- The gray fiberglass "Subway Style" grate (5/8-inch by 1-inch bars, 7/8-inch spacing) is light, corrosion-resistant, and finished with a medium-grit, non-slip surface.
- The 14-gauge type 304 stainless steel trough is fully TIG-welded with polished corners for superior sanitation.
- The creased bottom is factory-pitched toward both drains to ensure complete water evacuation.
- The perimeter flange with a 3/4-inch vertical tile step drops directly onto the sub-floor, providing a flush, trip-free finish.
- It includes two removable perforated stainless steel strainer baskets to keep solids out of the waste line.
- The product is NSF certified, offering peace of mind for use in regulated food-service applications.
Popular Add-Ons (Sold Separately):
- FT-1 Anti-Splash Guard: This factory-installed accessory helps prevent water splashing, with a cost per foot.
- FT-2 Replacement Strainer Basket: A replacement for the drain's strainer basket.
- FT-3 Custom Depth Modification: Allows for custom depth adjustments between 2 and 6 inches.
- FT-5 ADA-compliant Grate Upgrade: An upgrade to a grate with a 7/16-inch gap, meeting ADA accessibility standards. Priced per foot.
- FD-1 Stainless Steel Floor Drain Grate: A durable stainless steel grate for the floor drain.
Product Specs
| Specification | Value |
|---|---|
| Model | FFTG-18120* |
| Overall Length | 120" (122" with flange) |
| Overall Width | 18" channel | 20" with flange |
| Channel Depth | 4" |
| Drain Openings | 2 × 4" O.D. plumbing sleeves (3" long) |
| Grating | Fiberglass composite, non-slip, 7/8" inside clearance |
| Construction | 14-ga 304 stainless steel trough, fully TIG-welded |
| Shipping Weight | Approx. 150 lb |
| Certifications | NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | Advance Tabco |
| Certifications | NSF |
| Height | 4.0in |
| Width | 120.0in |
| Depth | 18.0in |
| Shipping Weight | 150.0lbs |
| Deep (pan depth) | 4" |
| Depth (short side) | 18" |
| Grate Construction | fiberglass grates |
| Grate Type | subway-style grating |
| Width (long side) | 109 - 120" (10 ft) |
| Trough Construction | 14 ga stainless steel trough |
| Pan Type | non anti-splash |
| Specifications | Floor Trough, 120"W x 18"D x 4" deep, with fiberglass grating, 4" O.D. waste pipe 3"L, pitched towards waste (NOTE:This unit supplied with 2 drain openings), NSF |
