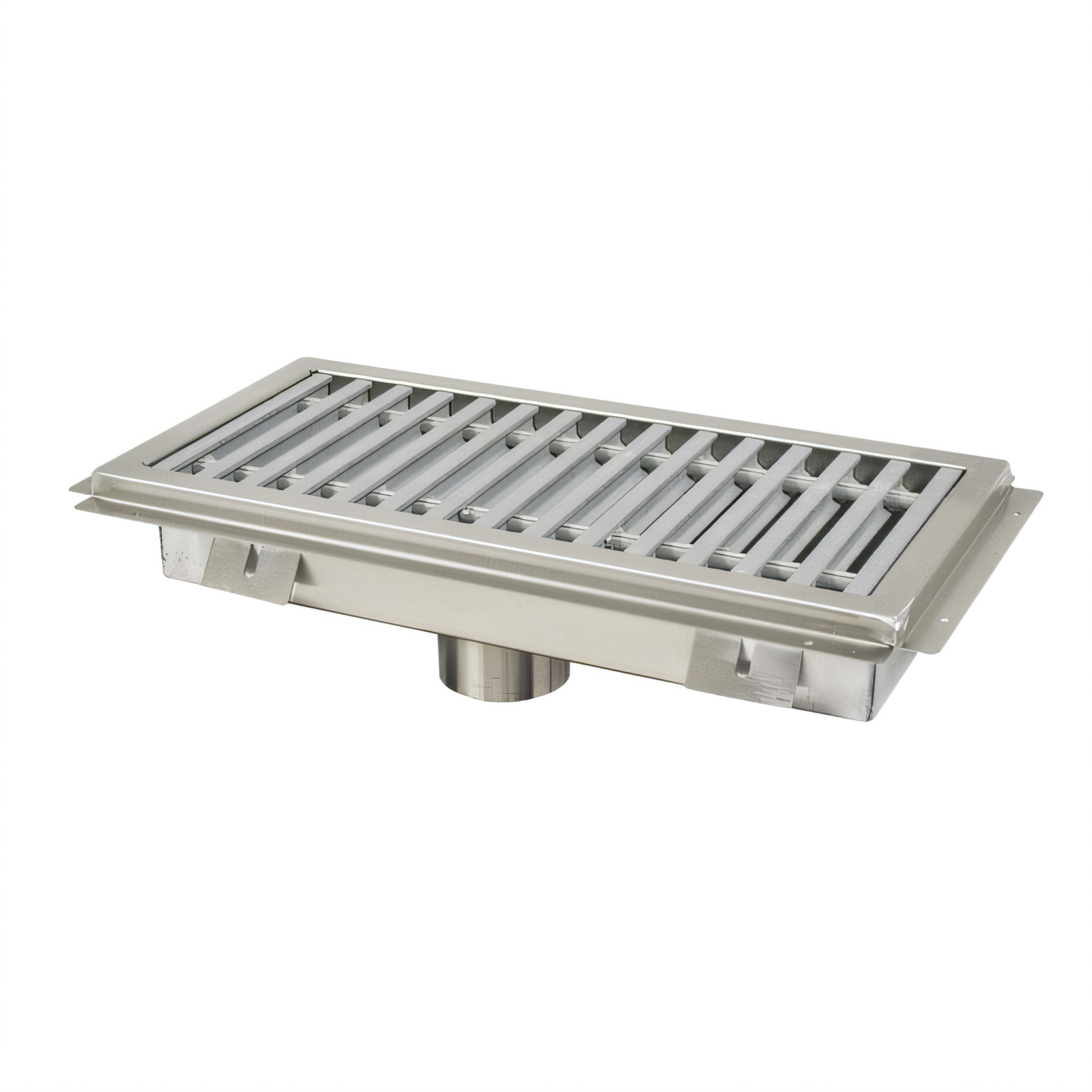

Crafted for the demanding environments of commercial kitchens, breweries, and food-service facilities, this Advance Tabco floor trough efficiently drains standing water while withstanding heavy foot traffic and harsh cleaning chemicals. Its low-profile 4-inch depth simplifies installation without compromising capacity, and the included non-slip fiberglass grate enhances staff safety while keeping debris out of the plumbing system. Advance Tabco offers a variety of customizable options, including different sizes, depths (2-6 inches), and ADA-compliant grates - contact us for a custom quote.

Why You'll Love It:

• The durable 14-gauge 304 stainless steel pan is fully TIG-welded and satin-polished, ensuring long-lasting corrosion resistance.
• The non-slip fiberglass "subway style" grate (⅝" × 1") is lightweight, skid-resistant, and spaced ⅞" on center for smooth drainage.
• The perforated stainless steel strainer basket with a handle catches solids and can be easily lifted out for quick cleaning.
• The integrated 4" O.D. × 3" L waste sleeve accepts up to a 4" waste pipe and meets NSF requirements, ensuring a secure and compliant installation.
• The creased floor pan is factory-pitched toward the drain, eliminating the need for onsite guesswork or shimming.
• The ¾" perimeter vertical step accepts finished floor tile, providing a flush, trip-free transition.
• The product is NSF certified for hygienic performance in food-contact environments, ensuring it meets the highest safety standards.

Installation Notes:

• The design is for a single-drain trough that is 95 inches or shorter, so no additional rough-ins are needed.
• The perimeter flange mounts directly to the sub-floor. Make sure to secure it before pouring or backfilling.
• Connect the waste sleeve to a 4-inch pipe supplied by the plumber using an approved coupling.
