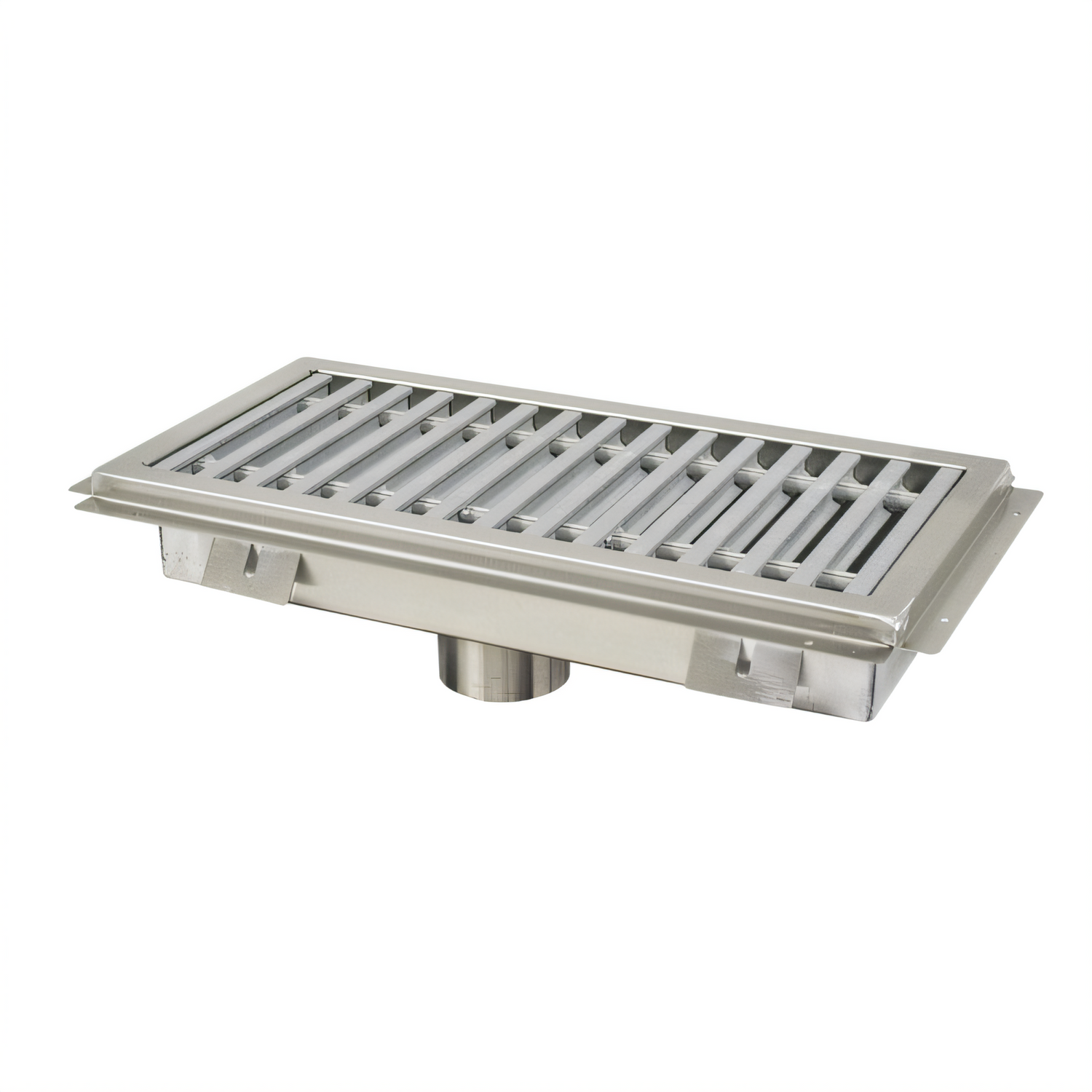

The Advance Tabco fiberglass-grated floor trough (model FFTG-24120) is designed for the heaviest wash-down environments. Constructed with all-welded 14-gauge 304 stainless steel, this floor trough features a lightweight yet rugged fiberglass grate that provides reliable, high-capacity drainage across 10 feet of floor space. The non-slip fiberglass grating and dual 4-inch drains, which are NSF certified, help direct water and debris to two independent outlets, ensuring a safe and efficient drainage solution.

Key Features:

• The drain has a large 120" L × 24" W × 4" D profile, which can handle high-volume runoff.
• It is NSF listed for use in commercial kitchens, food and beverage facilities, and industrial sanitation zones.
• The drain includes two 4" O.D. × 3" stainless steel waste sleeves that accept standard plumbing connections.
• The precisely pitched pan and creased floor ensure rapid and complete drainage.
• The gray fiberglass "Subway Style" grate has 5/8" × 1" bars with 7/8" clear spacing and a medium-grit non-slip surface.
• Removable perforated stainless steel strainer baskets with handles catch solids before they enter the waste line.
• The drain is made of all TIG-welded 14-gauge 304 stainless steel, with exterior seams ground and polished to a sanitary satin finish.
• The perimeter anchoring flange with a 3/4" tile ledge allows the drain to be installed flush with the finished flooring.
• Factory options are available for anti-splash guards, ADA grate spacing, alternate outlet sizes, depth changes, and more.

Typical Applications:

• Commercial kitchens and dishwashing areas
• Breweries, wineries, and other beverage processing facilities
• Meat, poultry, and seafood processing plants
• Produce washing and preparation rooms
• Walk-in coolers, loading docks, and locker rooms

Optional Factory Upgrades:

• The FT-1 Anti-Splash Guard is priced per foot and helps prevent water splashing.
• The FT-2 Replacement strainer baskets can be purchased as needed.
• The FT-3 Custom depth option allows you to choose a depth between 2 and 6 inches.
• The FT-4 Alternate drain diameters are available in sizes from 2 to 8 inches in outer diameter.
• The FT-5 ADA-compliant grate spacing features a 7/16-inch gap to meet accessibility standards.
• The FD-1 Stainless steel grate can be substituted for the standard grate.
