Description

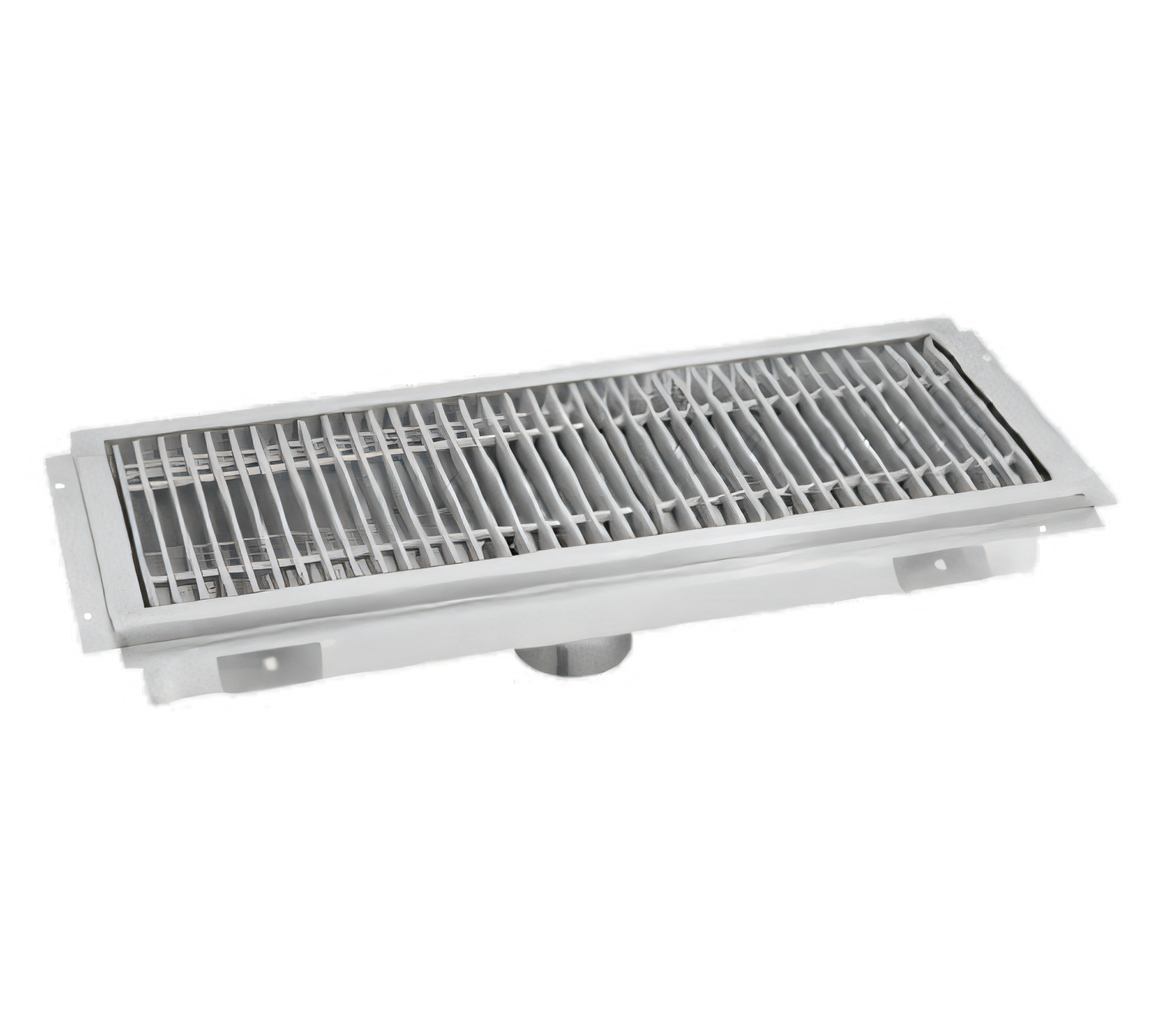

Advance Tabco FTG-730 Commercial Faucets & Plumbing
Product Description
Model FTG-730 | NSF Listed
This 30" Advance Tabco floor trough is built to withstand the most demanding commercial kitchen environments. Its all-welded 14-gauge 304 stainless steel construction, heavy-duty subway-style grate, and removable strainer basket provide superior durability and help keep your floors clean, sanitary, and slip-resistant. The floor trough collects, strains, and drains water faster and more efficiently than traditional floor drains. Custom fabrication is available for different lengths, double drain configurations, or ADA-compliant grate spacing - contact us for a quote.
Key Features:
- The trough is made of 14-gauge type 304 stainless steel, which is resistant to corrosion and chemicals.
- The stainless steel grate is subway-style, fabricated from 3/16" x 1" solid bars with a 9/16" gap for safe foot traffic and effective debris capture.
- The removable perforated strainer basket with a handle allows for quick and tool-free clean-outs.
- The 4" O.D. x 3"-long plumbing sleeve accepts standard Schedule-40 waste pipe.
- The cleverly creased floor and factory pitch direct every drop towards the drain.
- The 3/4" perimeter flange plus 3/4" vertical tile step ensure a flush, watertight installation.
- All seams are TIG-welded and satin-polished, providing lasting strength and an easy-to-sanitize surface.
- The product is NSF certified for use in commercial foodservice applications.
Popular Options (Sold Separately):
- FT-1 Anti-Splash Guard (factory installed, per foot)
- FT-2 Replacement Strainer Basket
- FT-3 Custom Trough Depth (2 to 6 inches deep, per foot)
- FT-4 Alternate Outlet Size (2 to 8 inches in diameter)
- FT-5 ADA-Compliant Grate (7/16-inch gap, per foot)
Product Specs
| Specification | Value |
|---|---|
| Overall length | 30" / 762 mm |
| Overall width | 7-1/2" / 191 mm |
| Interior depth | 4" / 102 mm |
| Material | 14-ga. 304 stainless steel |
| Grating | 304 SS subway grate, 3/16" × 1" bars |
| Drain outlet | 4" O.D. sleeve, 3" long (single, centered) |
| Shipping weight | ≈ 45 lb / 20.4 kg |
| Certifications | NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | Advance Tabco |
| Certifications | NSF |
| Height | 4.0in |
| Width | 30.0in |
| Depth | 7.5in |
| Shipping Weight | 45.0lbs |
| Grate Construction | stainless steel grates |
| Deep (pan depth) | 4" |
| Trough Construction | 14 ga stainless steel trough |
| Pan Type | non anti-splash |
| Grate Type | subway-style grating |
| Width (long side) | 25" - 36" (3 ft) |
| Depth (short side) | 7-1/2" |
| Specifications | Floor Trough/Water Receptacle, 30"W x 7-1/2"D x 4" deep, 14 gauge 304 stainless steel, includes stainless steel subway grating constructed from 3/16" x 1" bars, removable stainless steel strainer basket, 4" O.D. waste pipe 3"L, pitched towards waste, NSF |
