Description

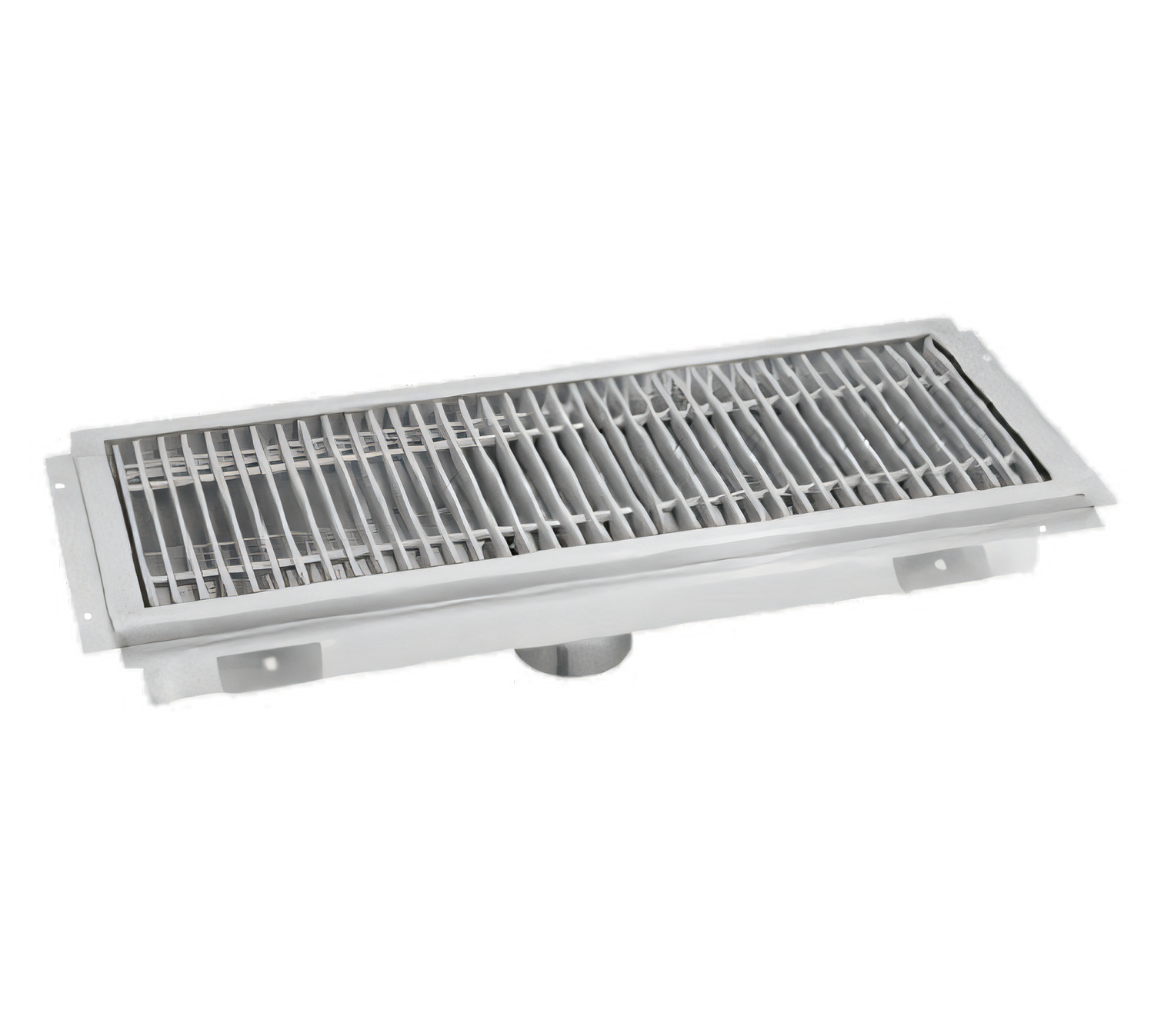

Advance Tabco FTG-760 Commercial Faucets & Plumbing
Product Description
Designed to handle tough, wet environments, this 60-inch floor trough by Advance Tabco offers reliable drainage, exceptional sanitation, and long-lasting durability thanks to its heavy-duty 14-gauge 304 stainless steel construction. If you need a different length or configuration, custom sizes and double-drain models are available - simply contact us for a quote.
Key Features:
- The sink has a compact 7-1/2" width, making it suitable for tight spaces like cook-lines, wash stations, and service aisles.
- It has a 4" working depth with a factory-creased bottom that slopes toward the outlet, allowing for rapid and complete drainage.
- The subway-style grate is made from 3/16" × 1" solid 304 stainless steel bars with 9/16" spacing, providing maximum flow.
- The removable perforated stainless steel strainer basket with a handle keeps solids out of the waste line.
- The 4" O.D. × 3" long waste sleeve accepts standard plumbing connections.
- The one-piece TIG-welded body has all exterior corners polished to a sanitary satin finish.
- The full perimeter anchoring flange with a 3/4" tile step ensures a flush, watertight installation.
- The sink is NSF listed for foodservice and hygienic applications.
Typical Applications:
- Commercial kitchens and areas for washing dishes and cookware
- Rooms used for processing meat, seafood, or produce
- Breweries, wineries, and facilities that produce beverages
- Areas where animals are housed or groomed
- Utility rooms or any other location that requires floor drainage in a specific area
Optional Accessories (sold separately):
- FT-1 Anti-Splash Guard: This is a factory-installed accessory that helps prevent water splashing, priced per linear foot.
- FT-2 Replacement Strainer Basket: A replacement strainer basket for the unit.
- FT-3 Depth Modification: Allows the depth of the unit to be adjusted from 2 to 6 inches.
- FT-4 Alternate Drain Outlet Sizes: Provides drain outlets ranging from 2 to 8 inches in diameter.
- FT-5 ADA-compliant Grate: A grate with a 7/16-inch gap, complying with Americans with Disabilities Act (ADA) requirements.
Product Specs
| Specification | Value |
|---|---|
| Manufacturer / Series | Advance Tabco – FTG Stainless Steel Floor Troughs |
| Model Reference | FTG-760 (single-drain) |
| Overall Length | 60" (1524 mm) |
| Overall Width | 7-1/2" (191 mm) |
| Overall Depth | 4" (102 mm) |
| Material / Finish | 14 ga 304 stainless steel, satin finish |
| Grate Type | Stainless steel “subway” grate – 3/16" × 1" bars, 9/16" spacing |
| Outlet Size | 4" O.D., 3" long sleeve, pitched toward waste |
| Included Components | Stainless steel grate, removable strainer basket, perimeter flange |
| Shipping Weight | Approx. 101 lb (46 kg) |
| Certifications | NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | Advance Tabco |
| Certifications | NSF |
| Height | 4.0in |
| Width | 60.0in |
| Depth | 7.5in |
| Shipping Weight | 101.0lbs |
| Width (long side) | 49" - 60" (5 ft) |
| Pan Type | non anti-splash |
| Deep (pan depth) | 4" |
| Grate Type | subway-style grating |
| Grate Construction | stainless steel grates |
| Trough Construction | 14 ga stainless steel trough |
| Depth (short side) | 7-1/2" |
| Specifications | Floor Trough/Water Receptacle, 60"W x 7-1/2"D x 4" deep, 14 gauge 304 stainless steel, includes stainless steel subway grating constructed from 3/16" x 1" bars, removable stainless steel strainer basket, 4" O.D. waste pipe 3"L, pitched towards waste, NSF |
