Description

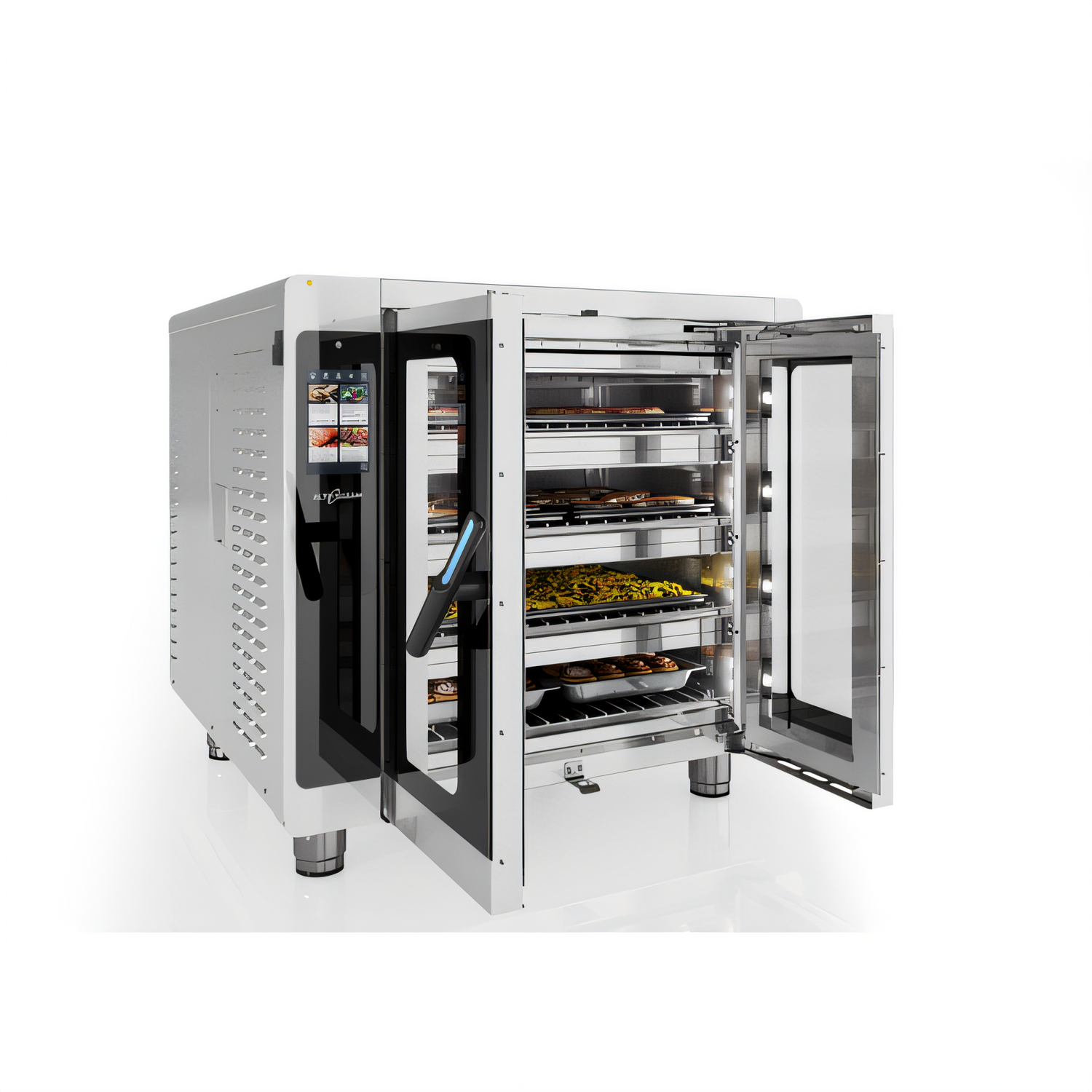

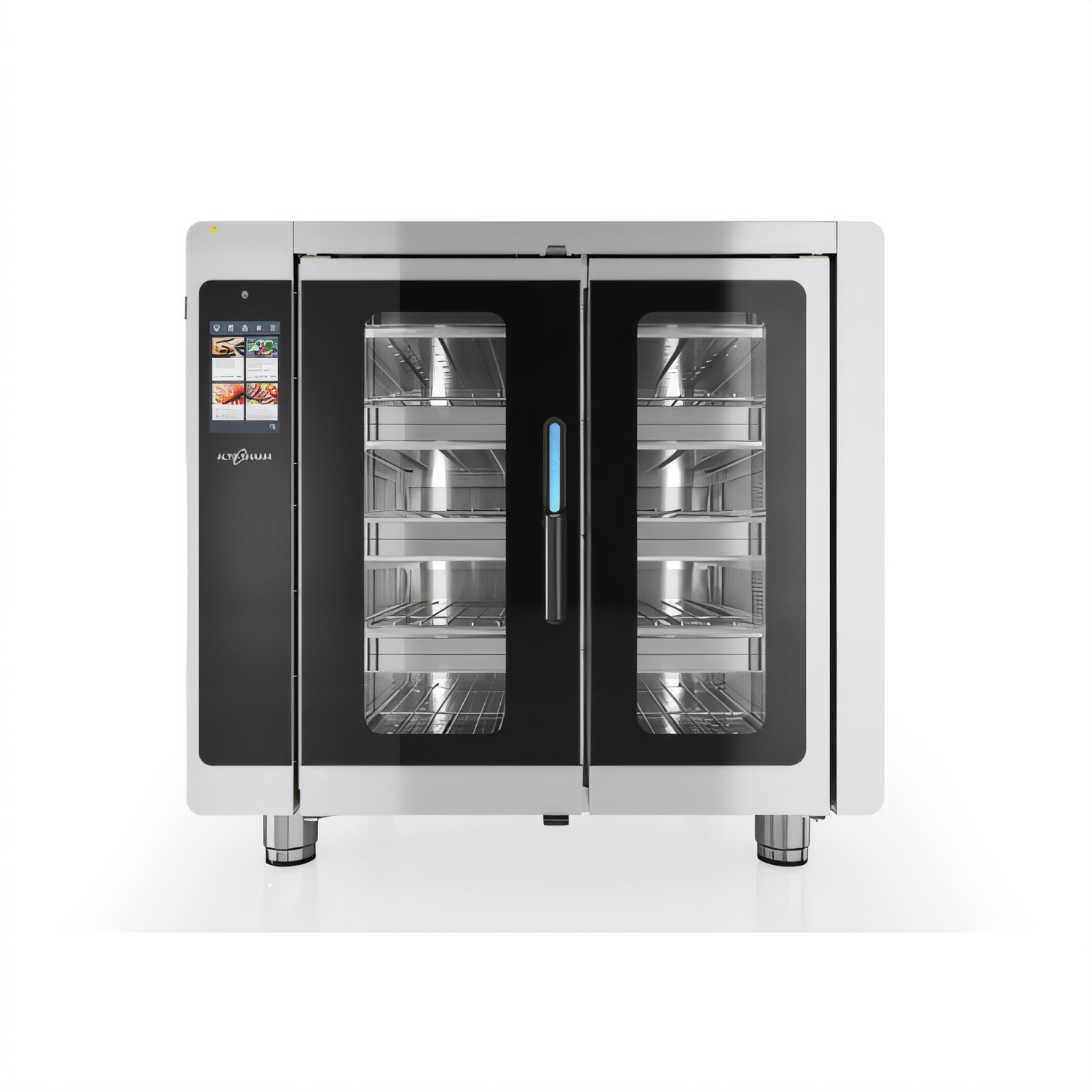

Alto-Shaam VMC-F4E Vector Series Combi Ovens
Product Description
Electric 4-chamber oven with Structured Air Technology® provides the capacity of four ovens in a single footprint. Simultaneously cook a full menu mix at each item's ideal time, temperature, and fan speed without flavor transfer or constant pan rotation. Perfect for high-volume kitchens that refuse to compromise on quality. Vector ovens are stackable and compatible with Alto-Shaam Combitherm® combi ovens, allowing custom configurations for even greater throughput.
Why you'll love the Vector F4E:
- Four individually controlled cooking chambers allow you to adjust temperature, fan speed, and cook time for each shelf independently.
- Exclusive Structured Air Technology® delivers focused, even heat, resulting in up to 20% faster cook times.
- Accommodates 4 full-size sheet pans (18 × 26 inches) or 8 half-size sheet pans (18 × 13 inches).
- Intuitive, programmable touchscreen with a USB port for quick recipe upload and download.
- Waterless design eliminates the need for plumbing, drains, or filters, reducing installation and operating costs.
- Double-pane glass door, cool-touch handle, and bright LED cavity lighting allow for safe and easy monitoring of the cooking process.
- Durable, all-stainless steel exterior and interior with 4-inch (102 mm) adjustable legs.
- Certified for cULus UL and EPH standards, and manufactured in an ISO 9001:2015-certified facility.
Included with your oven:
- Your oven comes with one stainless-steel wire rack per chamber, for a total of 4 racks.
- It also includes 2 jet plates per chamber, for a total of 8 jet plates.
- For customers in Canada, a 6 ft (1.8 m) flexible conduit is also included.
- You will find an Operator's manual and a quick-start guide in the package.
High-volume capacity:
- Holds up to 4 full-size sheet pans, with 1 pan per shelf
- Holds up to 8 half-size sheet pans, with 2 pans per shelf
- Holds up to 8 full-size 4-inch hotel pans
- Can reach a maximum temperature of 525°F (274°C)
Product Specs
| Specification | Value |
|---|---|
| Model | Vector VMC-F4E (electric) |
| Cooking chambers | 4, independently controlled |
| Exterior (H × W × D) | 39 ⅜ ″ × 40 ¾ ″ × 42 ½ ″(998 × 1036 × 1078 mm) |
| Interior (H × W × D) | 28 ⅜ ″ × 26 ¼ ″ × 20 ⅝ ″(720 × 667 × 525 mm) – total cavity |
| Chamber height | 4 ⁵⁄₁₆ ″ (109 mm) per shelf |
| Electrical | 208–240 V, 3 Ø, 60 Hz, field-wired41 A @ 208 V • 46 A @ 240 V15.2–19.9 kW, no cord/plug supplied |
| Net weight | 616 lb (279 kg) |
| Clearances | Sides & back — 2 ″ (51 mm)Front — 16 ″ (406 mm) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Alto-Shaam |
| Brand Name | Vector Series |
| Certifications | cULus, UL EPH Classified |
| Height | 39.38in |
| Width | 40.75in |
| Depth | 42.5in |
| Shipping Weight | 705.0lbs |
| Half Size Sheet Pan Capacity | (8) 13" x 18" pans |
| Gas or Electric Type | electric |
| Full Size Sheet Pan Capacity | (4) 18" x 26" pans |
| Control Type | programmable controls |
| Specifications | Vector® F Series Multi-Cook Oven, electric, (4) individually controlled cooking chambers, holds (8) half-size sheet pans (4) full sized sheet pans, programmable touch screen controls with Structured Air Technology®, double pane glass door, interior LED cavity lighting, includes: (1) wire rack & (2) jet plates per cooking chamber, USB port, stainless steel construction, 4" adjustable legs, cULus, UL EPH Classified |
