Description

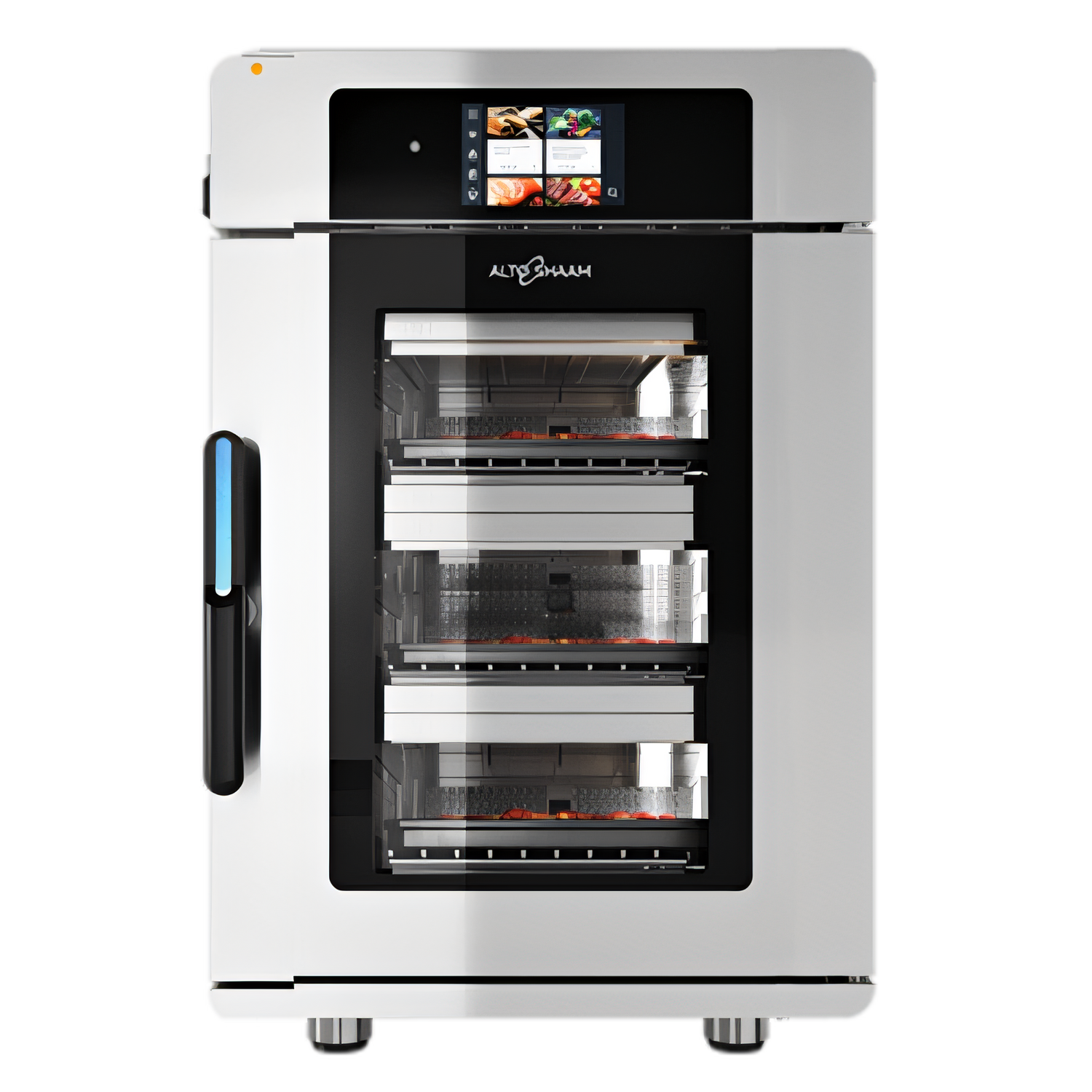

Alto-Shaam VMC-H3HW Vector Series Combi Ovens
Product Description
The Alto-Shaam Vector® H Series Wide Multi-Cook Oven offers efficient triple cooking capacity in a compact countertop design. The oven's three independent chambers utilize Structured Air Technology® to provide faster, more even cooking without flavor transfer between dishes. This ventless model saves valuable kitchen space while optimizing productivity.
Why It Belongs in Your Kitchen:
- This versatile oven has three separate chambers, each with individual temperature, fan speed, and cook-time controls. This allows you to cook different foods simultaneously at their ideal settings.
- The Structured Air Technology® surrounds your food with high-velocity, focused air, resulting in up to 2 times faster and more even cooking.
- This oven is ventless and waterless, thanks to its built-in catalytic converter. This means you can place it anywhere in your kitchen without the need for costly hood or plumbing installation.
- The programmable touchscreen allows you to upload and download recipes using a USB, and you can also connect it to the optional ChefLinc™ cloud for additional features.
- Despite its powerful capabilities, this oven has a compact 23-inch (584 mm) footprint, making it perfect for kitchens with limited space.
- The double-pane glass door and LED lighting let you monitor the cooking process while keeping the heat inside the oven.
- This oven is made in the USA and is certified cULus and UL EPH Classified, ensuring safe and food-safe operation.
What You Can Load:
- Your oven can accommodate up to 3 full-size hotel pans, each measuring 20-3/4 inches by 12-3/4 inches by 4 inches.
- Alternatively, it can hold up to 3 half-size sheet pans, each measuring 18 inches by 13 inches by 1 inch.
- Each oven chamber includes a stainless steel wire rack and two jet plates to optimize the air flow and ensure even cooking.
Included with Purchase:
- Three (3) stainless steel wire racks, one for each oven cavity
- Six (6) jet plates, two for each oven cavity
- Adjustable legs that can be set to 4 inches (102 mm) in height
- Factory-installed ventless catalytic converter
- Power cord with a NEMA 15-50P plug, for 208–240 V, 3-phase models
Popular Options & Accessories:
- 3-inch (76 mm) heavy-duty casters, set of four (part # 5027946)
- Additional jet plate assemblies for the top (part # 5030451) and bottom (part # 5029095)
- Internal chamber grease filter kit (part # 5033002)
- Alto-Shaam® non-caustic oven cleaner available as a single bottle or in a case
- Universal oven stands and trim kits for front-of-house display
Product Specs
| Specification | Value |
|---|---|
| Exterior Dimensions (H × W × D) | 38-5/8" × 23-5/8" × 39-7/8" (986 × 600 × 1013 mm) |
| Chamber Size (each) | 4-7/8" H × 17" W × 21" D (124 × 432 × 533 mm) |
| Temperature Range | Up to 525 °F (274 °C) |
| Electrical | 208–240 V, 3 PH, 10.5–13.6 kW, 29–33 AFactory cord & NEMA 15-50P plug (USA/Canada) |
| Net Weight | 312 lb (142 kg) |
| Noise Emission | ≤ 72 dBA at 3.3 ft (1 m) – no hood required |
| Heat Rejection | 1,218 BTU/hr (hooded) | 1,741 BTU/hr (unhooded) |
| Certifications | cULus, UL EPH Classified, ISO 9001:2015, Made in USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Alto-Shaam |
| Brand Name | Vector Series |
| Certifications | cULus, UL EPH Classified, Made in USA |
| Height | 36.63in |
| Width | 23.63in |
| Depth | 39.5in |
| Shipping Weight | 375.0lbs |
| Half Size Sheet Pan Capacity | (3) 13" x 18" pans |
| Gas or Electric Type | electric |
| Control Type | programmable controls |
| Full Size Hotel Pan Capacity | (3) 12" x 20" pans |
| Specifications | Vector® H Wide Series Multi-Cook Oven, electric, (3) individually controlled cooking chambers, holds (3) half-size sheet pans or (3) full-size hotel pans, programmable touch screen controls with Structured Air Technology®, double pane glass door, interior LED cavity lighting, ventless catalytic converter, includes: (1) wire rack & (2) jet plates per cooking chamber, USB port, stainless steel construction, 4" adjustable legs, cULus, UL EPH Classified, Made in USA |
