American Range AMSQ-30 Wood/Charcoal Grills

Product Description

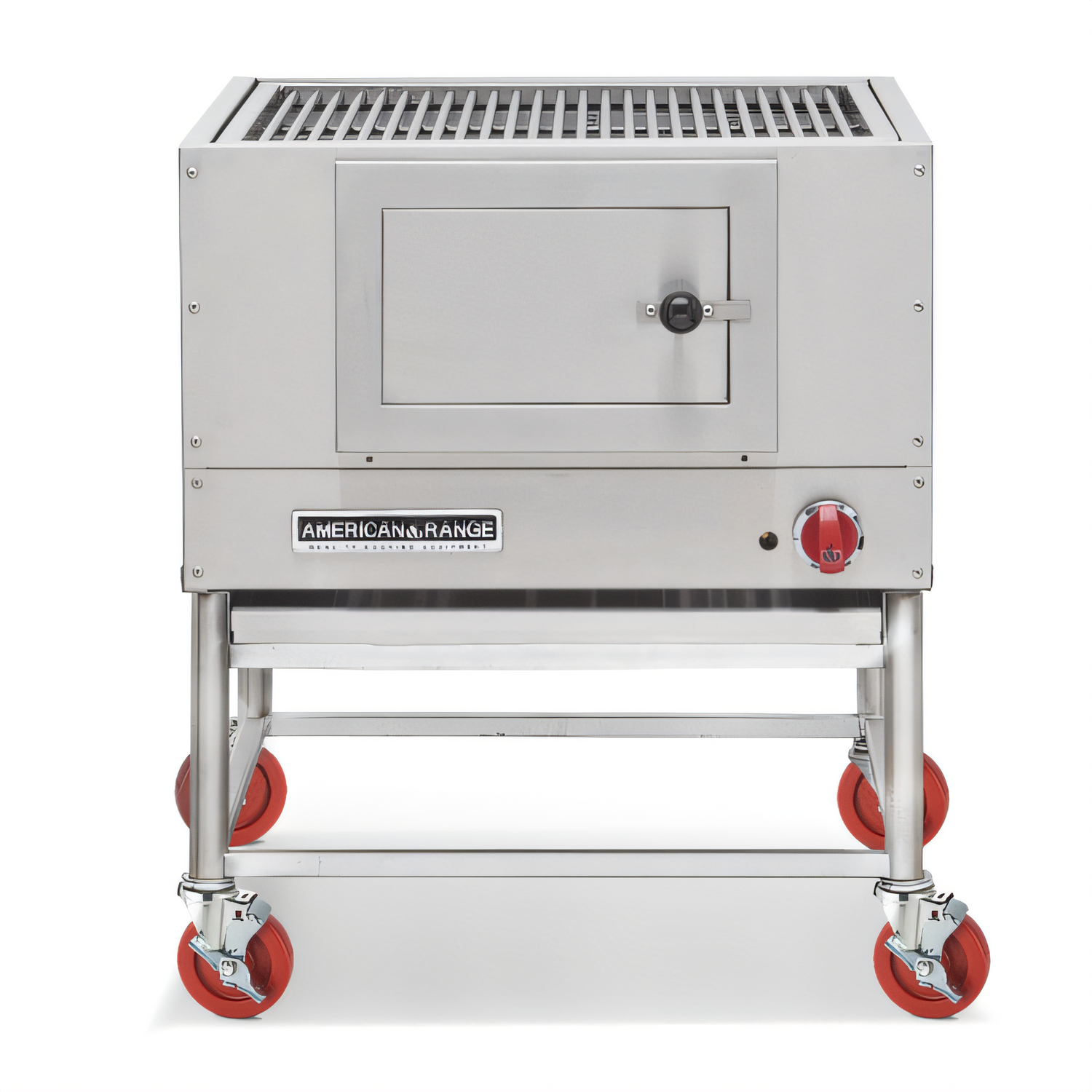

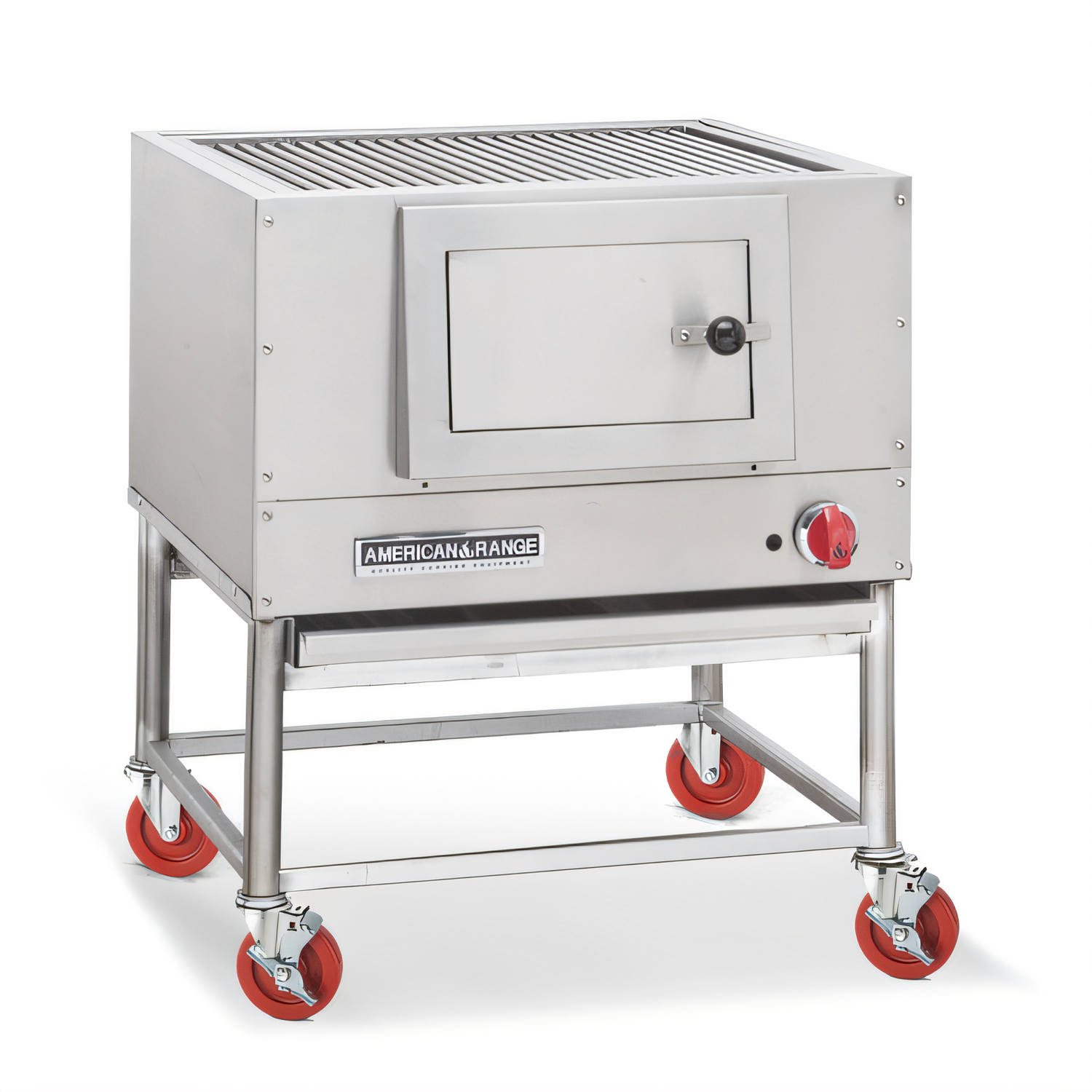

Floor model with a stainless steel body and a built-in gas log lighter allows you to capture true wood-fired flavor in a compact, heavy-duty broiler designed for demanding commercial kitchens. The AMSQ-30 enables you to fire with any wood or charcoal and ignite instantly with a 30,000 BTU gas log lighter, eliminating the need for messy lighter fluid or electric starters. Legs, equipment stand, casters, and quick-disconnect gas hose are sold separately. Contact us to request a configured package that meets your specific line-up requirements.

Key features:

  • The cooking cavity is 30 inches (762 mm) wide, but the overall unit has a space-saving depth of 27 inches.
  • The built-in gas log lighter provides 30,000 BTU of heat and has an adjustable valve, along with a standing pilot for instant ignition.
  • The heavy-duty cast iron round-rod grates deliver bold, restaurant-quality grill marks.
  • The open bottom grate design promotes continuous airflow, resulting in hotter and cleaner fires, as well as lower wood/charcoal costs.
  • The firebox is lined with refractory bricks, which protects the interior from burnout and extends the product's service life.
  • The large, front-mounted stainless steel loading door with an ergonomic handle allows for quick fueling and ash access.
  • The all-stainless steel exterior resists corrosion and is easy to wipe clean.
  • The unit can operate on wood, charcoal, or gas (natural or LP), but the gas is used only for the ignition burner.
  • The product is ETL Listed for gas and sanitation, and it is designed and built in the USA.

Product Specs

Specification Value
Model AMSQ-30
Overall width 30" / 762 mm
Overall depth 27 1/8" / 689 mm
Overall height 18" / 457 mm (without stand)
Btu/hr (gas log lighter) 30,000 BTU (9.0 kW)
Burners 1 gas log lighter
Primary fuel Wood or charcoal
Ignition fuel Natural gas or propane (field convertible)
Top grate Cast iron, 1" round-rod sections
Fire box lining Refractory brick
Gas connection 3/4" NPT | 5" W.C. NG / 10" W.C. LP
Shipping weight 300 lb / 137 kg (approx.)
Certifications ETL (US & Canada), NSF/ANSI 4
Warranty 1-year parts & labor; burners & grates 90 days

Features

Specification Value
Manufacturer American Range
Certifications ETL
Height 18.0in
Width 30.0in
Depth 27.0in
Shipping Weight 300.0lbs
Exterior Finish all stainless steel exterior
Grid cast iron grid
Width (side - side) 25 - 36"
Specifications Wood Floor Model Broiler for wood or charcoal, 30" wide, (1) burner, round rod top grates, door with handle, open bottom grate design, built-in gas log lighter, adjustable gas valve & pilot, stainless steel exterior, 9.0kW, 30,000 BTU, ETL
