Description

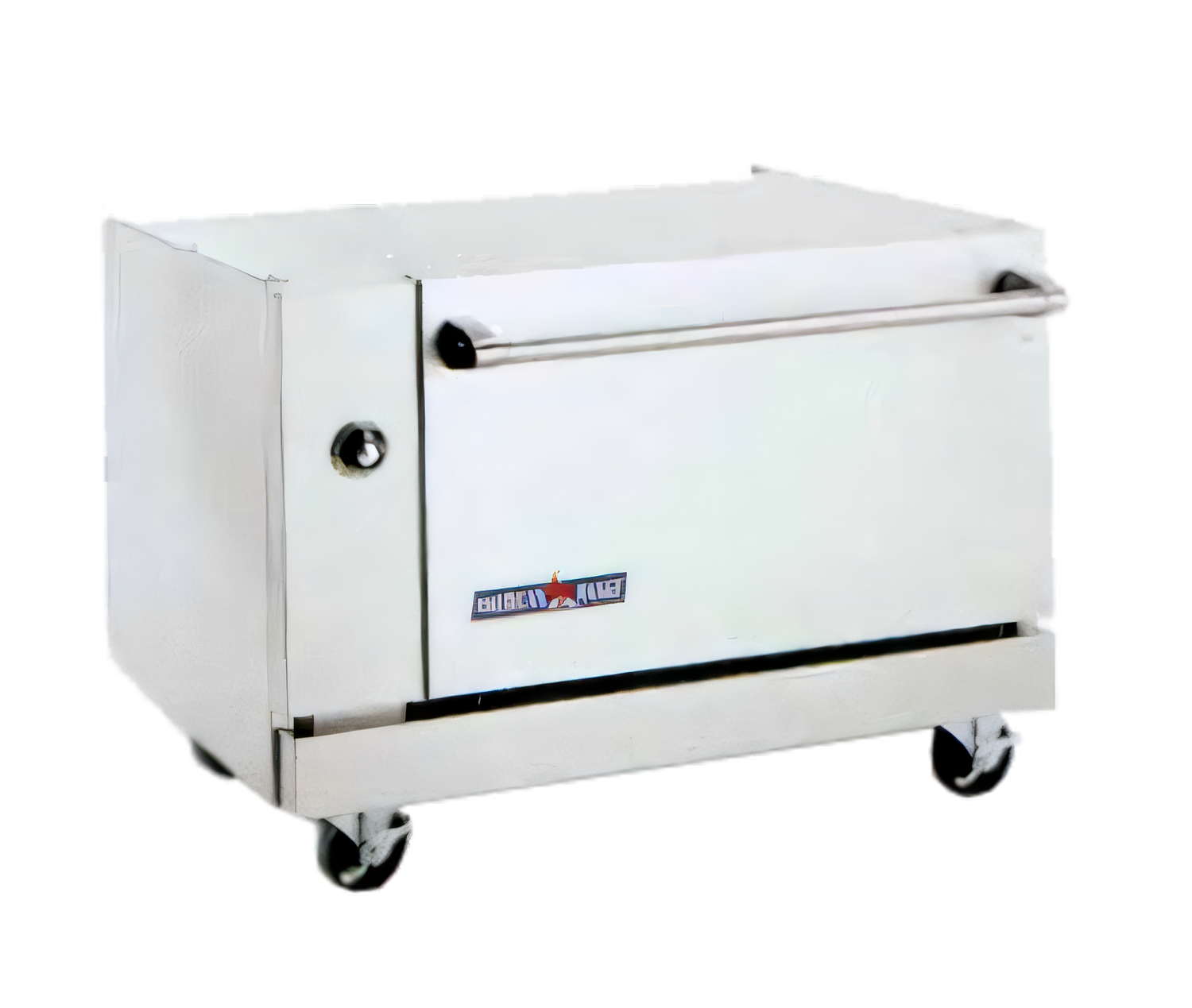

American Range ARLB-36-C Specialty Ovens
Product Description
The American Range Model ARLB-36-C is a 30,000 BTU (9 kW) convection oven that delivers full-size performance without sacrificing valuable kitchen space. Manufactured in the USA, this compact "Low Boy" oven slides neatly beneath a 36-inch range top or can stand alone on its included 6-inch legs. Its rugged stainless steel exterior, porcelain-coated interior, and reliable Power-Plus burner technology make it a durable choice for high-volume kitchens. The range-matching design pairs perfectly with American Range 36-inch hot tops, griddles, or charbroilers for a seamless, space-saving cookline.
Key Features & Benefits:
- Powerful 30,000 BTU (9 kW) burner with electronic ignition for fast, consistent heating.
- Snorkel-style convection system with a 1/4 HP, 1-phase motor for even air circulation and shorter cooking times.
- Spacious 26-1/2" W × 22-1/2" D × 15-1/4" H porcelain-enamel cavity that wipes clean easily.
- Thermostat range from 150°F to 500°F (66°C to 260°C) for a variety of cooking tasks, from gentle proofing to high-heat roasting.
- Includes two heavy-duty chrome racks with five rack positions for flexible loading.
- Features a heat-on indicator light, 60-minute manual timer, and a three-position selector (cook/cool-down/off) for precise control.
- Front-removable stainless steel door for easy deep cleaning and service access.
- 3/4" rear gas connection with matchless push-button (piezo) pilot ignition and 100% safety shut-off valve.
- Sturdy 6" adjustable legs to keep the oven level and compliant with health-code requirements.
Product Specs
| Specification | Value |
|---|---|
| Model | ARLB-36-C (Low Boy Convection) |
| Gas Type | Natural or Propane (field convertible) |
| Total Input | 30,000 BTU/hr • 9.0 kW |
| Oven Interior (W × D × H) | 26-1/2″ × 22-1/2″ × 15-1/4″ (673 × 572 × 387 mm) |
| Overall Dimensions (W × D × H) | 36″ × 26-3/4″ × 24″ (914 × 679 × 610 mm) |
| Electrical | 120 VAC, 60 Hz, 1 ph, 5 A (blower & controls) |
| Gas Connection | 3/4″ NPT rear inlet | 5.0″ W.C. Natural | 10″ W.C. LP |
| Shipping Weight | ≈ 350 lb (159 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1-year limited parts & labor |
| Country of Origin | Made in USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | American Range |
| Certifications | cETLus, ETL-Sanitation, Made in USA |
| Height | 30.0in |
| Width | 36.0in |
| Depth | 26.75in |
| Shipping Weight | 350.0lbs |
| Interior Finish | porcelain interior |
| Exterior Finish | all stainless steel exterior |
| Design | range match |
| Oven Type | convection oven |
| Deck Qty | 1 deck |
| Specifications | Restaurant Range Low Boy Oven, gas, 26-1/2" convection oven, range-match design, stainless steel front and sides, 6" high legs, 9.0kW, 30,000 BTU, cETLus, ETL-Sanitation, Made in USA |
