Description

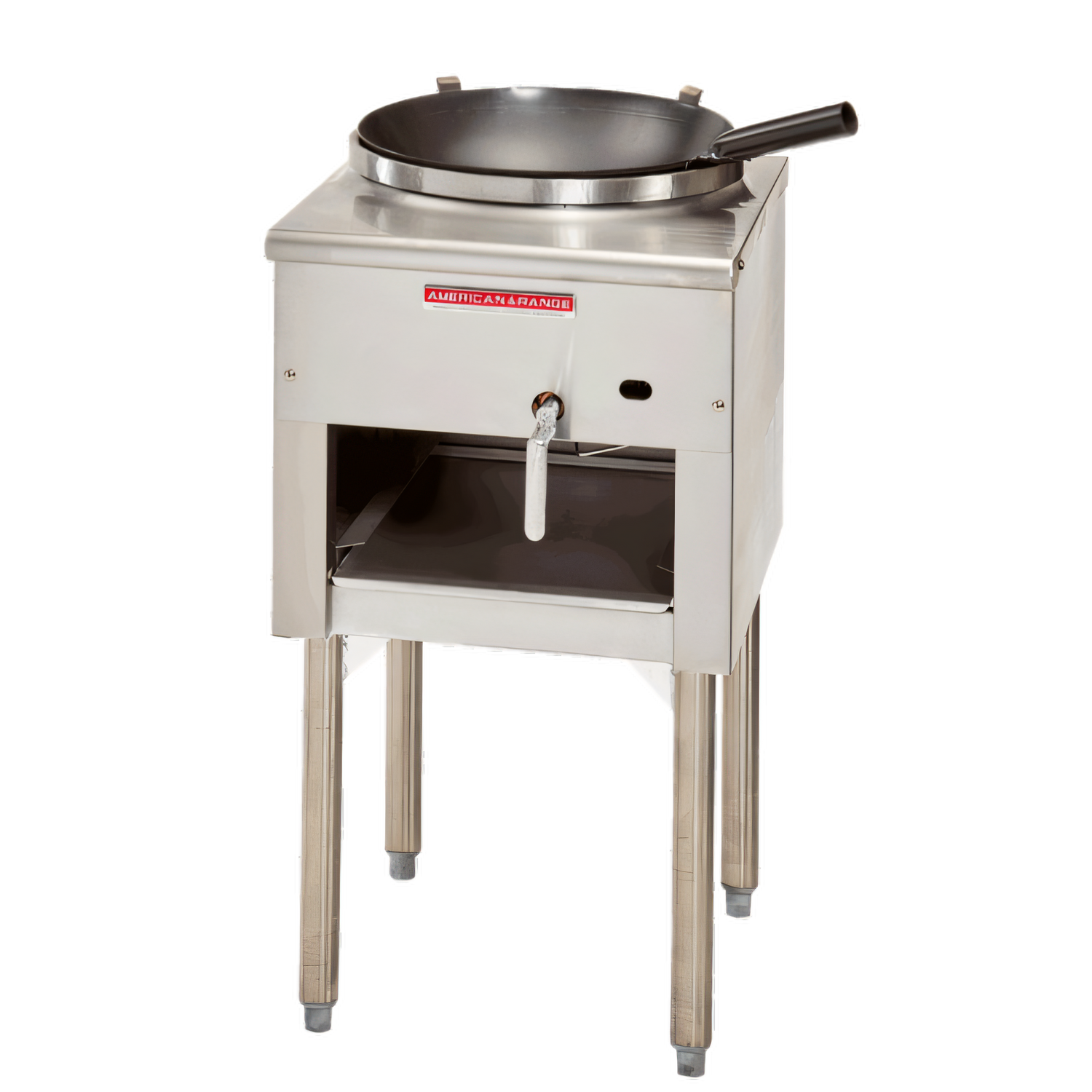

American Range ARWR-J16 Culinary Series Wok Ranges
Product Description
The Culinary Series ARWR-J16 wok range is built for chefs who demand intense heat for stir-frying. Made in the USA by American Range, this single-station range delivers 125,000 BTUs of focused firepower through a 23-tip jet burner. Its welded 16-inch wok ring, stainless steel body, and rugged brass valve make it ideal for exhibition cooking, ghost kitchens, or any operation requiring true stir-fry performance in a compact footprint. For details on warranty and coverage, please contact the manufacturer.
Standard Features:
- 23-tip cast iron jet burner that produces 125,000 BTU / 37 kW for rapid, even heating
- Welded 2" high, 16" diameter wok ring that holds round-bottom woks securely
- Extra-wide aluminum lever handle on brass gas valve that allows "knee control" for hands-free use
- Heavy-gauge stainless steel front, sides, and tubular legs with adjustable bullet feet
- Removable, full-width grease pan for easy clean-ups
- Standing pilot for instant ignition
- 3/4" NPT rear gas connection that can be field converted to use Natural or LP gas (5.0" W.C. NG / 10.0" W.C. LP)
- cETLus & ETL-Sanitation listed for use in commercial kitchens
Optional Features:
- The grill can come with a 3-ring burner that uses the tempura cooking style, which can produce up to 90,000 BTU/hr.
- Instead of adjustable feet, the grill can be equipped with casters for easier mobility.
Product Specs
| Specification | Value |
|---|---|
| Burner | 23-tip jet, cast iron |
| Total Heat Output | 125,000 BTU/hr | 37 kW |
| Wok Ring | 16" Ø, 2" high, welded steel |
| Overall Width | 18" (457 mm) |
| Overall Depth | 20" (508 mm) |
| Overall Height | 32-1/2" (826 mm) – to cooktop | 37-1/4" (947 mm) to top of guard |
| Gas Connection | 3/4" NPT, rear |
| Shipping Weight | ≈145 lb (66 kg) |
| Certifications | cETLus, ETL-Sanitation |
Features
| Specification | Value |
|---|---|
| Manufacturer | American Range |
| Brand Name | Culinary Series |
| Certifications | cETLus, ETL-Sanitation, Made in USA |
| Height | 36.0in |
| Width | 18.0in |
| Depth | 20.0in |
| Shipping Weight | 120.0lbs |
| Flue/Back-Splash Height | none |
| Depth (front - back) | 20" |
| Controls | knee "L" lever |
| Exterior Finish | stainless steel front & sides |
| Burner Section Qty | (1) |
| Specifications | Culinary Series Wok Range, gas, 23 tip jet burner, 16" diameter Wok ring, 2" high opening, brass control valve with aluminum handle, removable grease pan, stainless steel front, sides & tubular legs with adjustable feet, 37.0kW, 125,000 BTU, cETLus, ETL-Sanitation, Made in USA |
