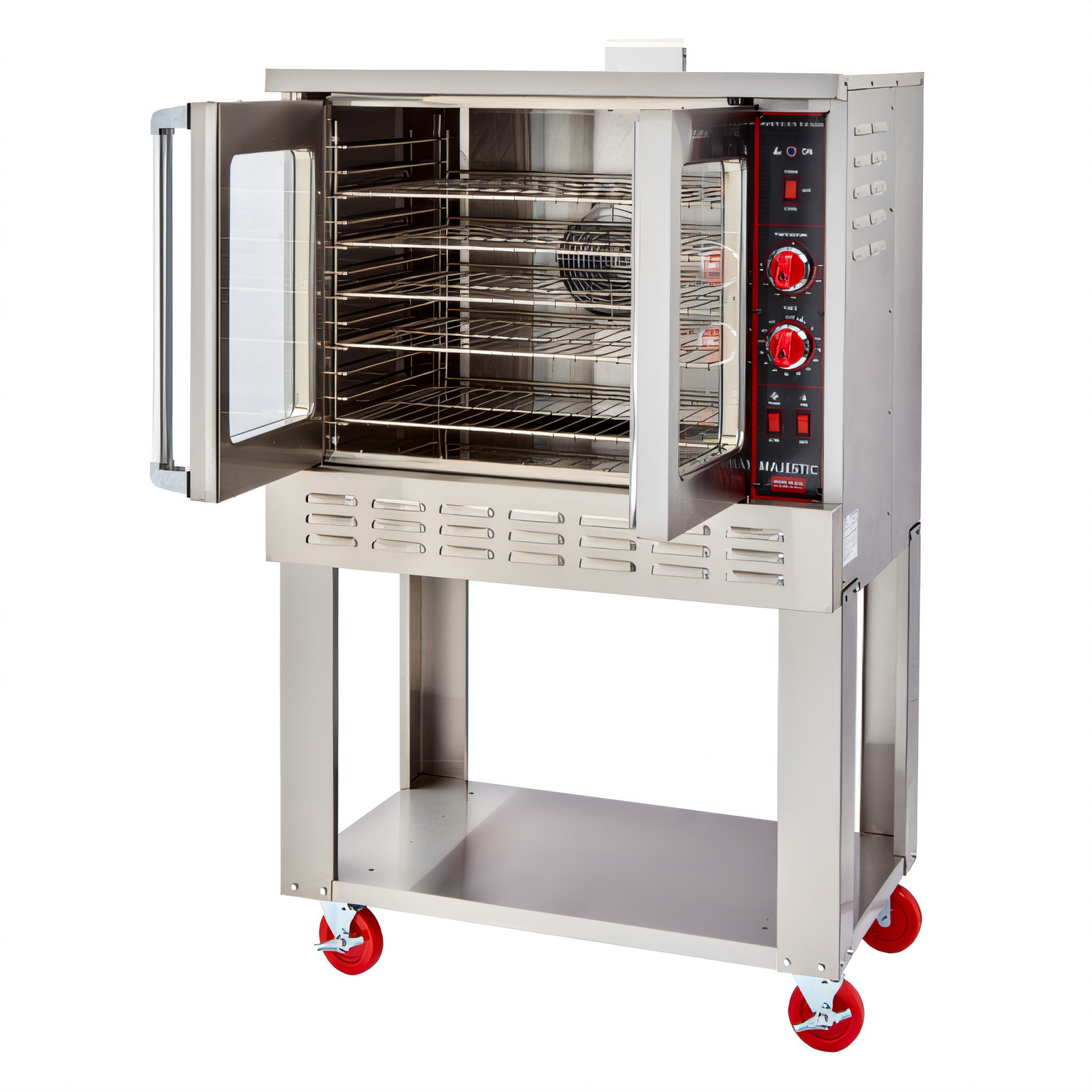

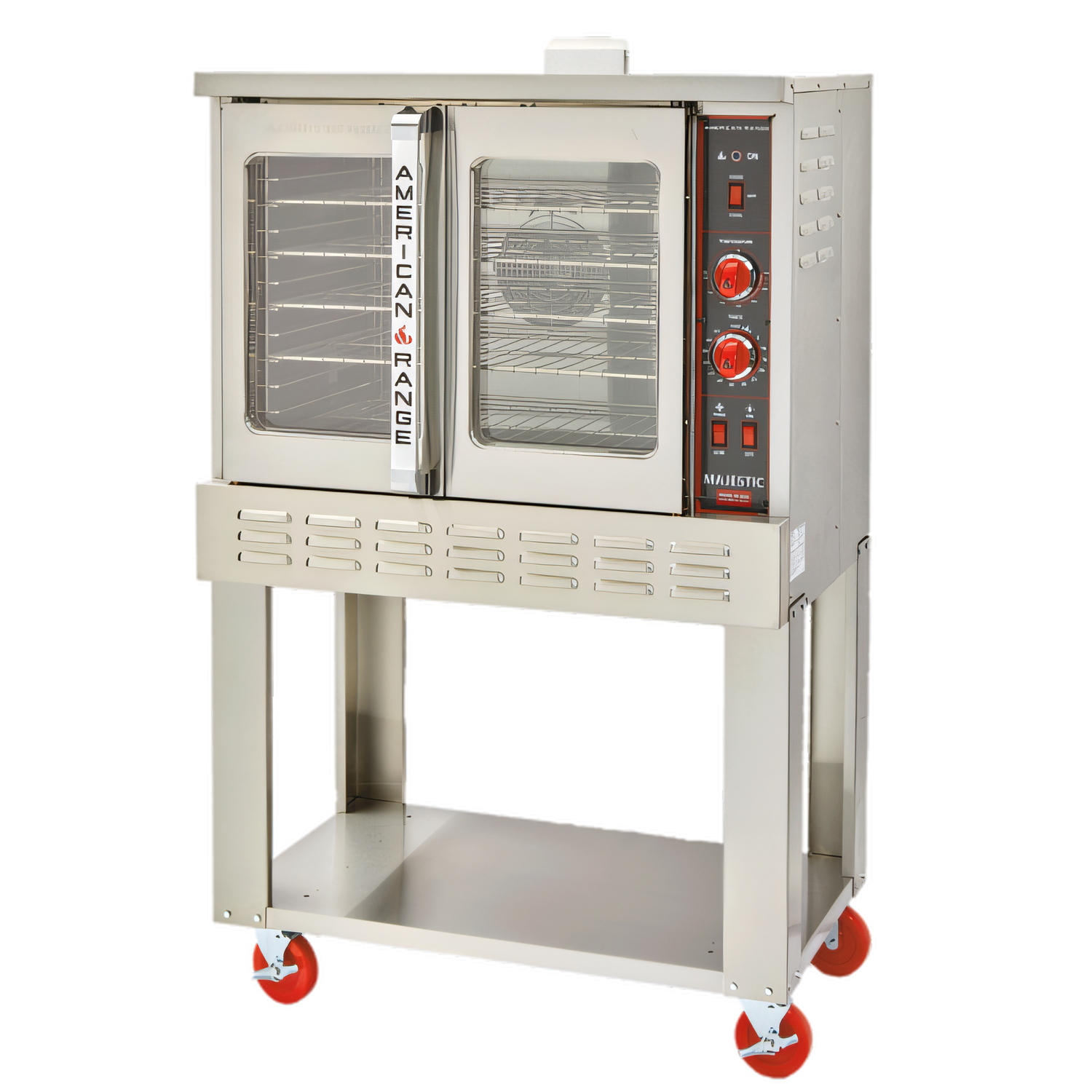

American Range MSD-1HE Convection Ovens
Product Description
The American Range MSD-1HE is a compact, high-performance commercial oven built for busy kitchens. Featuring a powerful 54,000 BTU heat system, 2-speed ½ HP fan, and fast-recovering porcelainized cavity, this ENERGY STAR® certified oven delivers even, high-volume baking in a 40-inch footprint. Constructed in the USA, the MSD-1HE is designed for demanding commercial use.
Key benefits:
- The oven has a wide temperature range of 150°F to 500°F, which allows you to bake delicate pastries, roast hearty meats, and everything in between.
- The oven has five chrome racks with 10 positions, allowing you to accommodate full-size 18" x 26" sheet pans for maximum capacity.
- The 50/50 glass doors swing open 135 degrees and open/close together, enabling you to check your bakes at a glance without losing heat.
- The oven has a rugged all-stainless exterior and a porcelainized interior, making it easy to clean and resistant to corrosion.
Chef-friendly extras:
- The timer can run for up to one hour and will continuously buzz to let you know when the time is up.
- The burner has a light that turns on when it's activated, and it also has a cool-down mode to help it safely cool down after use.
- The electronic spark ignition means you don't need a standing pilot light, which can waste gas.
- The 6-inch chrome-plated legs are adjustable, making it easy to level the appliance on your countertop.
Optional upgrades:
- Get a set of five cooling/storage racks with support guides to keep your items organized.
- Add a direct vent adapter to improve air circulation.
- Install two locking swivel casters to make your unit more mobile.
Product Specs
| Specification | Value |
|---|---|
| Model | MSD-1HE (single-deck, standard depth) |
| Heat input | 54,000 BTU/hr (18.0 kW) |
| Temperature range | 150 °- 500 °F (66 °- 260 °C) |
| Fan motor | ½ HP, 2-speed, 120 V, 1 Ø, 9 A (6-ft cord & plug supplied) |
| Interior capacity | 5 full-size sheet pans on 10 rack guides |
| Interior finish | High-gloss porcelain enamel |
| Exterior construction | Stainless steel front, sides & top; 6" chrome legs |
| Doors | 50/50 double-pane glass, simultaneous operation |
| Overall dimensions (W × D × H) | 40" × 38" × 59 ⅝" (1016 × 966 × 1514 mm) |
| Gas connection | ¾" NPT, rear; 5" W.C. NG / 10" W.C. LP manifold pressure |
| Shipping weight | Approx. 585 lb (265 kg) |
| Certifications | cETLus, ETL-Sanitation, ENERGY STAR® qualified |
| Warranty | 2 years parts & labor (90 days on replacement parts & select components) |
Features
| Specification | Value |
|---|---|
| Manufacturer | American Range |
| Height | 59.75in |
| Width | 40.0in |
| Depth | 38.0in |
| Shipping Weight | 545.0lbs |
| Control Type | thermostatic controls |
| Base | legs |
| Size | full/standard size |
| Interior Finish | porcelain interior |
| Deck Qty | 1 deck |
| Exterior Finish | stainless steel front, top & sides |
| Type | standard |
| Capacity per Compartment | 5 pan capacity, per compartment |
| Energy Efficiency | ENERGY STAR® |
| Specifications | Majestic Convection Oven HE, gas, single-deck, standard depth, thermostatic controls, temperature range 150°-500° F, one hour timer, 2-speed fan, (5) chrome racks with (10) rack positions per deck, porcelainized oven interior, 50/50 glass doors, stainless steel front, sides, top, 6" adjustable chrome plated legs, 18.0kW, 54,000 BTU, cETLus, ETL-Sanitation, ENERGY STAR®, Made in USA |
