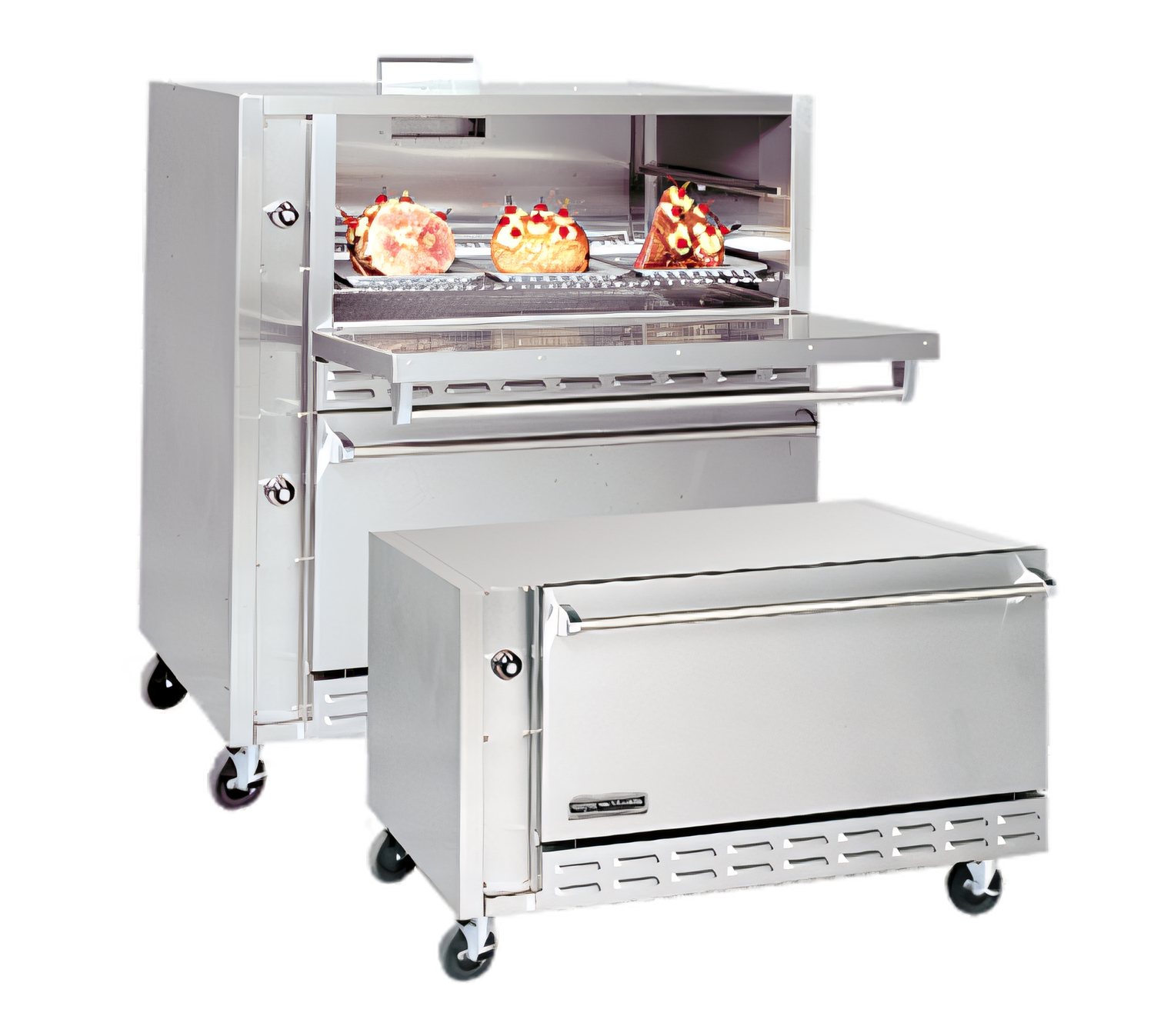

American Range ARLM-1 Specialty Ovens

Product Description

The American Range ARLM-1 is a powerful and durable commercial-grade oven designed for high-volume kitchens that need to roast large cuts of meat like lamb, pork, and beef. With a 42-inch wide cavity and 40,000 BTU of heating capacity, this oven provides even, high-heat cooking performance. Proudly engineered and manufactured in the United States, the ARLM-1 is built with an all-stainless steel construction for long-lasting use. Need even more capacity? Consider the ARLM-2 double-deck configuration. For details on warranty and coverage, please contact the manufacturer.

Key Features:

  • Extra-large standard oven cavity with dimensions of 42" W × 33 ½" D × 17" H (24 cu ft).
  • High-output 40,000 BTU burner (approximately 12 kW) with a temperature range of 150 °F – 500 °F.
  • All-stainless-steel construction, including the interior liner, door, and exterior panels.
  • Heavy-gauge welded frame for maximum stability and long service life.
  • Specially designed cavity and baffle system to ensure uniform temperature throughout the oven.
  • Matchless push-button (Piezo) pilot ignition and 100% automatic gas safety shut-off.
  • Removable stainless-steel door for easy cleaning, supplied with 1 chrome wire rack (2 positions).
  • 6" adjustable stainless-steel legs for non-combustible floor installation.
  • ETL listed for sanitation and safety.

Ideal Applications:

  • Restaurants that specialize in traditional ethnic dishes with whole-animal roasts, such as lamb, goat, or suckling pig.
  • Barbecue restaurants that need an additional oven for finishing or holding smoked meats.
  • High-capacity catering kitchens, hotels, or event venues that require large-scale roasting capabilities.
  • Butcher shops and meat markets that offer in-house roasting services for their customers.

Optional Accessories:

  • The set of 4 heavy-duty swivel casters allows you to move the unit easily for different installations.

Product Specs

Specification Value
Model ARLM-1 (Single Deck)
Oven Type Standard radiant gas oven
Interior Capacity 42" W × 33.5" D × 17" H (24 cu ft)
Burner Output 40,000 BTU / 12 kW
Temperature Range 150 °F – 500 °F (66 °C – 260 °C)
Exterior Dimensions 52" W × 37.5" D × 32" H
Gas Connection ¾" NPT, 5" WC Natural / 10" WC LP
Rack Positions / Included Racks 2 positions / 1 chrome rack
Leg Height 6" (adjustable)
Shipping Weight 620 lb (281 kg)
Certifications ETL Sanitation & Safety
Warranty 1-year limited parts & labor
Country of Origin Designed & built in the USA

Features

Specification Value
Manufacturer American Range
Certifications ETL, Made in USA
Height 32.0in
Width 52.0in
Depth 37.5in
Shipping Weight 620.0lbs
Oven Type standard oven
Exterior Finish all stainless steel exterior
Interior Finish stainless steel interior
Deck Qty 1 deck
Design range match
Specifications Restaurant Range Large Capacity Oven, gas, single deck, one 42" wide x 33-1/2" deep x 17" high cavity, standard oven with one wire shelf each, thermostat range 150° - 500° F, stainless steel liner, stainless steel exterior, 6" high legs, 12.0kW, 40,000 BTU, ETL, Made in USA
