Description

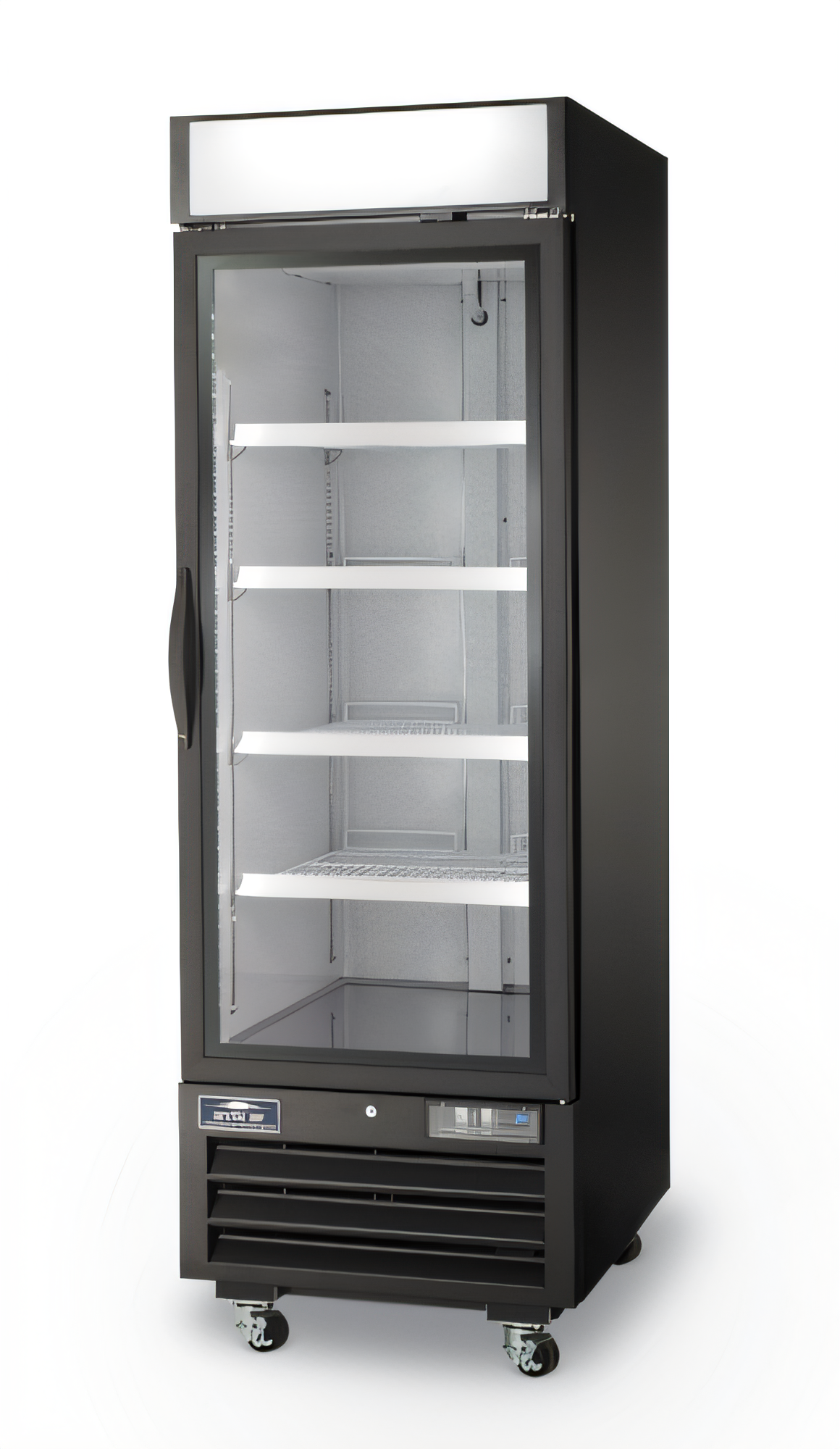

Arctic Air AFGDM23 Glass Door Merchandisers
Product Description
The AFGDM23 freezer offers a spacious 23 cubic feet of storage while measuring just 27 inches wide, making it an ideal fit for convenience stores, cafeterias, and retail merchandisers. The freezer's heated, anti-fog glass door keeps your frozen grab-and-go items prominently displayed, while the brilliant LED lighting and customizable, back-lit sign panel create an eye-catching presentation. Maintaining a steady, food-safe temperature range of -10°F to +10°F, this compact yet reliable freezer ensures your products stay frozen and fresh.
Top reasons operators choose the AFGDM23:
- The heated, self-closing right-hinged glass door with lock prevents fogging and reduces energy loss.
- The external electronic thermostat with large digital LED read-out allows for quick and accurate temperature checks.
- The four adjustable, heavy-duty wire shelves (with white epoxy finish) have built-in label channels for easy product organization.
- The bright interior LED lighting and blank white, LED back-lit header are ideal for branding or menu graphics.
- The durable black powder-coated exterior and easy-clean white aluminum interior walls with a stainless steel coved-corner floor make it easy to maintain.
- The bottom-mounted, slide-out 3/4 HP compressor operates in the coolest part of the room for greater efficiency and easier service access.
- The environmentally friendly R290 hydrocarbon refrigerant has a 2,000 BTU/h heat rejection rating.
- The hot-gas condensate loop in the drain pan eliminates the need for electric heaters, saving on energy costs.
- The set of four 5" casters (with front two locking) make cleaning and repositioning the unit a breeze.
- The magnetic door gasket is field-replaceable without tools, minimizing downtime.
Perfect for:
- Convenient access for customers in locations like convenience and grocery stores.
- Serving fresh, hot food and drinks in settings such as coffee shops and bakeries.
- Providing food and beverage options at venues like theaters, stadiums, and arenas.
- Catering to the dining needs of schools and hospitals.
- Offering grab-and-go items for hotel guests in lobby markets.
Product Specs
| Specification | Value |
|---|---|
| Model | AFGDM23 |
| Capacity | 23 cu ft (651 L) |
| Temperature Range | -10 °F to +10 °F (-23 °C to -12 °C) |
| External Dimensions (W × D × H) | 27" × 32" × 81.5" (includes 5" casters) |
| Door | 1 heated, right-hinged, self-closing glass door with lock |
| Shelves (adjustable) | 4 epoxy-coated wire shelves with label channels |
| Compressor HP | 3/4 HP bottom-mounted, slide-out |
| Refrigerant | R290 (Hydrocarbon, environmentally friendly) |
| Electrical | 115 V / 60 Hz / 1-ph • 8 A • NEMA 5-15P • 8' cord |
| Heat Rejection | 2,000 BTU/h |
| Casters | (4) 5" plate casters – 2 locking |
| Certifications | cETLus, ETL-Sanitation (NSF Std. 3 for sealed food storage) |
| Warranty | 2-year parts & labor • 5-year compressor |
Features
| Specification | Value |
|---|---|
| Manufacturer | Arctic Air |
| Certifications | cETLus, ETL-Sanitation |
| Height | 81.5in |
| Width | 27.0in |
| Depth | 32.0in |
| Shipping Weight | 375.0lbs |
| Exterior Finish | black |
| Size | 1 section |
| Depth (front - back) | standard |
| Doors | hinged |
| Compressor HP | 3/4 HP |
| Refrigeration | self-contained, bottom mounted |
| Capacity | 9 - 23 cu. ft. |
| Specifications | Freezer, merchandiser, one-section, 27"W, 23.0 cu. ft. capacity, electronic thermostat with digital LED display, -10°F to +10°F temperature range, (1) heated glass paneled right-hinged black powder-coated door frame, self-closing door with lock, removable magnetic door gasket, LED back-lit display panel above door, (4) adjustable white epoxy-coated wire shelves with label support channel that indicates the shelf product contents, interior LED light, powder-coated black exterior front & sides, powder-coated white alum. interior walls with hi-grade coved corner stainless steel floor, (4) 5" casters (2 locking), bottom mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 2000 BTU/h rejected heated air gain, 3/4 HP, 115v/60/1-ph, 8.0 amps, cord, NEMA 5-15P, cETLus, ETL-Sanitation |
