Description

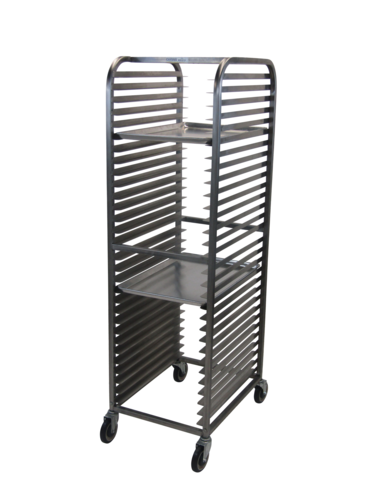

Channel Manufacturing 400S Pan Racks
Product Description
The Channel Manufacturing Stainless Series rack is designed to keep high-volume bakeries and commercial kitchens running smoothly. Crafted from heavy-gauge type 304 stainless steel and shipped fully assembled, this all-welded rack offers a 30 full-size pan or 60 half-size pan capacity with 2-inch spacing, along with an end-load design for easy access. The CSS45PU is engineered for years of corrosion-free, NSF-certified performance, making it a reliable choice for demanding commercial kitchen environments.
Key Features:
- The cart is made of 18-gauge type 304 stainless steel, making it ideal for moist or chemically cleaned environments.
- The all-welded one-piece frame arrives ready to use, without any nuts and bolts that could loosen over time.
- The 2-inch slide spacing can hold up to 30 full-size 18" x 26" bun pans or 60 half-size 13" x 18" pans (2 pans per ledge).
- The end-load design simplifies loading and saves valuable aisle space.
- The 1" x 1-1/2" stainless angle slides are continuously heli-arc welded for maximum strength.
- The cart has (4) 5" all-swivel, non-marking stem casters that provide smooth, quiet mobility, with heavy-duty and braking upgrades available.
- The cart is NSF listed for food-contact safety and sanitation.
- The cart is proudly made in the USA.
Features:
- Includes a pair of caster brakes
- Has either 2 or 4 corner bumpers
- Comes with 4 perimeter bumpers
- Includes a card clip for easy product identification
- Features a solid bottom shelf
Product Specs
| Specification | Value |
|---|---|
| Model | CSS45PU |
| Series / Type | Stainless Series – All-Welded Bun Pan Rack |
| Pan Orientation | End Load (Front Load) |
| Capacity | 30 × 18" × 26" full-size pans60 × 13" × 18" half-size pans (2 per ledge) |
| Slide Spacing | 2" center-to-center |
| Overall Dimensions | 70.25" H × 20.5" W × 26" D |
| Material | 18 ga type 304 stainless steel |
| Casters | (4) 5" swivel stem, non-marking TPE |
| Item Weight | 75 lb |
| Certifications | NSF, Made in USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Channel Manufacturing |
| Certifications | NSF, Made in USA |
| Height | 67" - 72" |
| Width | 20.5in |
| Depth | 26.0in |
| Shipping Weight | 75.0lbs |
| Pan Capacity | 26 - 30 |
| Top | open top |
| Ships | assembled / welded |
| Centers | 2 to 2-1/2" centers |
| Loading | end loading |
| Sides | open sides |
| Construction | stainless steel |
| Specifications | Bun Pan Rack, All-Welded, Stainless Series, 20.5"W x 26"D x 70.25"H, Stainless Steel Construction, End Load, 2" Angle Spacing, (30) 18" x 26" or (60) 13" x 18" pans (2 per shelf), 5" Swivel Stem Casters model # CSS45PU, Made in USA, NSF, 75lbs. (ITEM WEIGHT ONLY), weight does not include 50 lbs. for pallet weight |
