Description

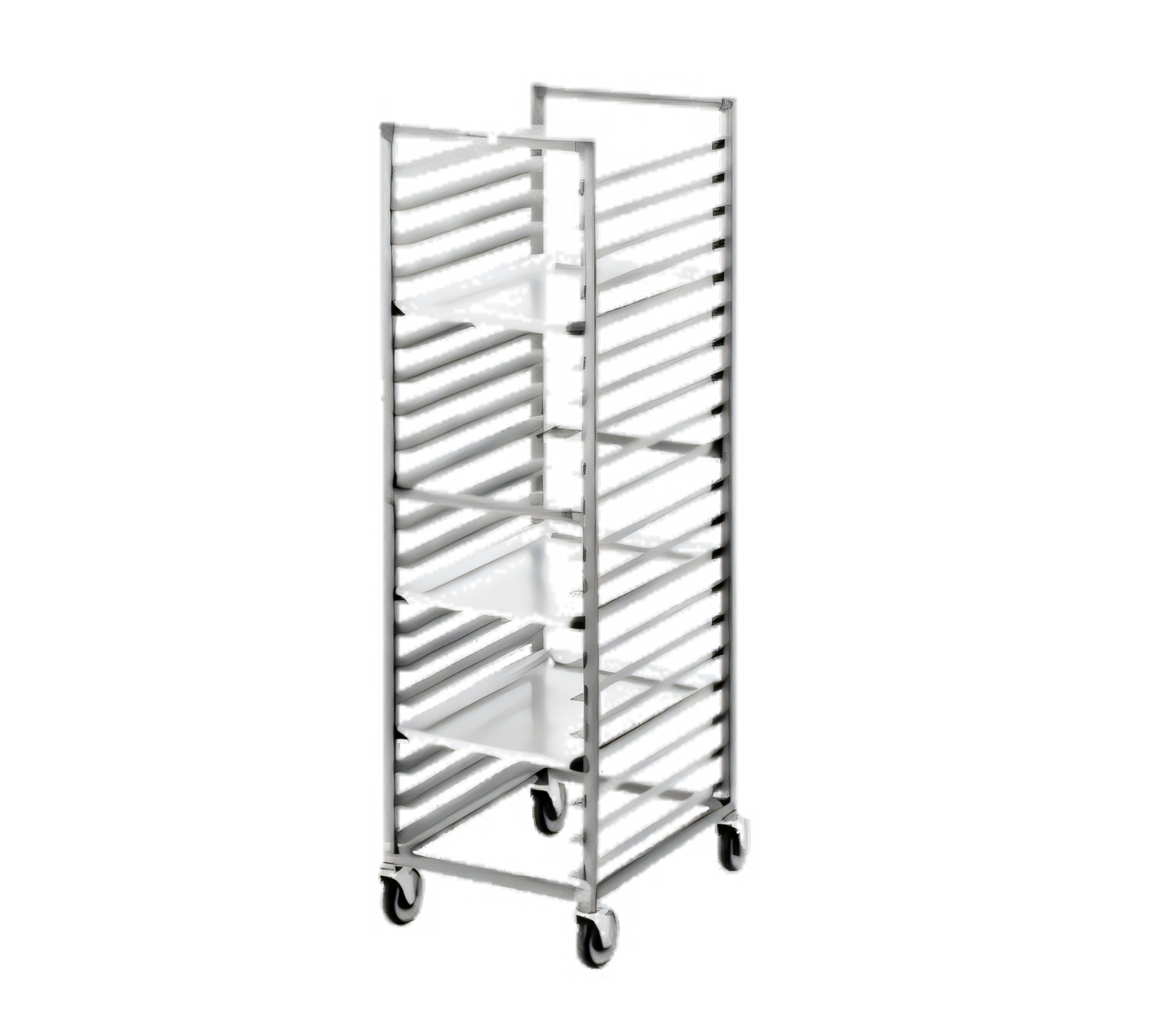

Channel Manufacturing 405S Pan Racks
Product Description
The Model CSS45PU Stainless Series 27-Pan, End-Load rack is built for bakeries, cafeterias, and high-volume kitchens. Featuring rugged 18-gauge 304 stainless steel construction in a compact 64" height, this NSF-listed rack offers fully welded runners and smooth-rolling 5" swivel casters for easy mobility while handling full loads of sheet pans or trays. Its commercial-grade design ensures years of reliable performance even under demanding conditions.
Why You'll Love It:
- The unit is made of all-welded 18-gauge 304 stainless steel, with no bolts to loosen and no crevices to trap food.
- The end-load design with 2-inch slide spacing can hold up to 27 standard 18-inch by 26-inch bun pans or 54 standard 13-inch by 18-inch trays (2 per ledge).
- The 1-inch by 1.5-inch stainless steel angle runners are heli-arc welded for maximum strength.
- The full-swivel 5-inch non-marking stem casters provide quiet, effortless maneuverability.
- The unit is NSF listed and proudly made in the USA.
Engineered for Heavy-Duty Service:
- The frame and cross supports are made of sturdy 1-inch square stainless steel tubing and 1-inch solid flat bar, ensuring long-lasting durability.
- The bottom load ledge design keeps the lowest pan off the floor, promoting better sanitation and cleanliness.
- The casters are bolted, not riveted, allowing you to quickly swap out wheels without the need for welding.
Product Specs
| Specification | Value |
|---|---|
| Manufacturer | Channel Manufacturing |
| Series / Model | Stainless Series / CSS45PU (405S equivalent) |
| Pan Orientation | End Load (Front Load) |
| Slide Spacing | 2" on center |
| Pan Capacity | (27) 18" × 26" pans • (54) 13" × 18" pans (2 per ledge) |
| Overall Dimensions | 64"H × 20.5"W × 26"D |
| Construction Material | 18-ga. 304 stainless steel, fully welded |
| Casters | (4) 5" swivel, non-marking, stem-mount |
| Unit Weight | 70 lb (rack only) |
| Certifications | NSF Listed |
| Country of Origin | USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Channel Manufacturing |
| Certifications | NSF, Made in USA |
| Height | 61" - 66" |
| Width | 20.5in |
| Depth | 26.0in |
| Shipping Weight | 70.0lbs |
| Pan Capacity | 26 - 30 |
| Sides | open sides |
| Ships | assembled / welded |
| Centers | 2 to 2-1/2" centers |
| Loading | end loading |
| Top | open top |
| Construction | stainless steel |
| Specifications | Bun Pan Rack, All-Welded, Stainless Series, 20.5"W x 26"D x 64"H, Stainless Steel Construction, End Load, 2" Angle Spacing, (27) 18" x 26" or (54) 13" x 18" pans (2 per shelf), 5" Swivel Stem Casters model # CSS45PU, Made in USA, NSF, 70lbs. (ITEM WEIGHT ONLY), weight does not include 50 lbs. for pallet weight |
