Description

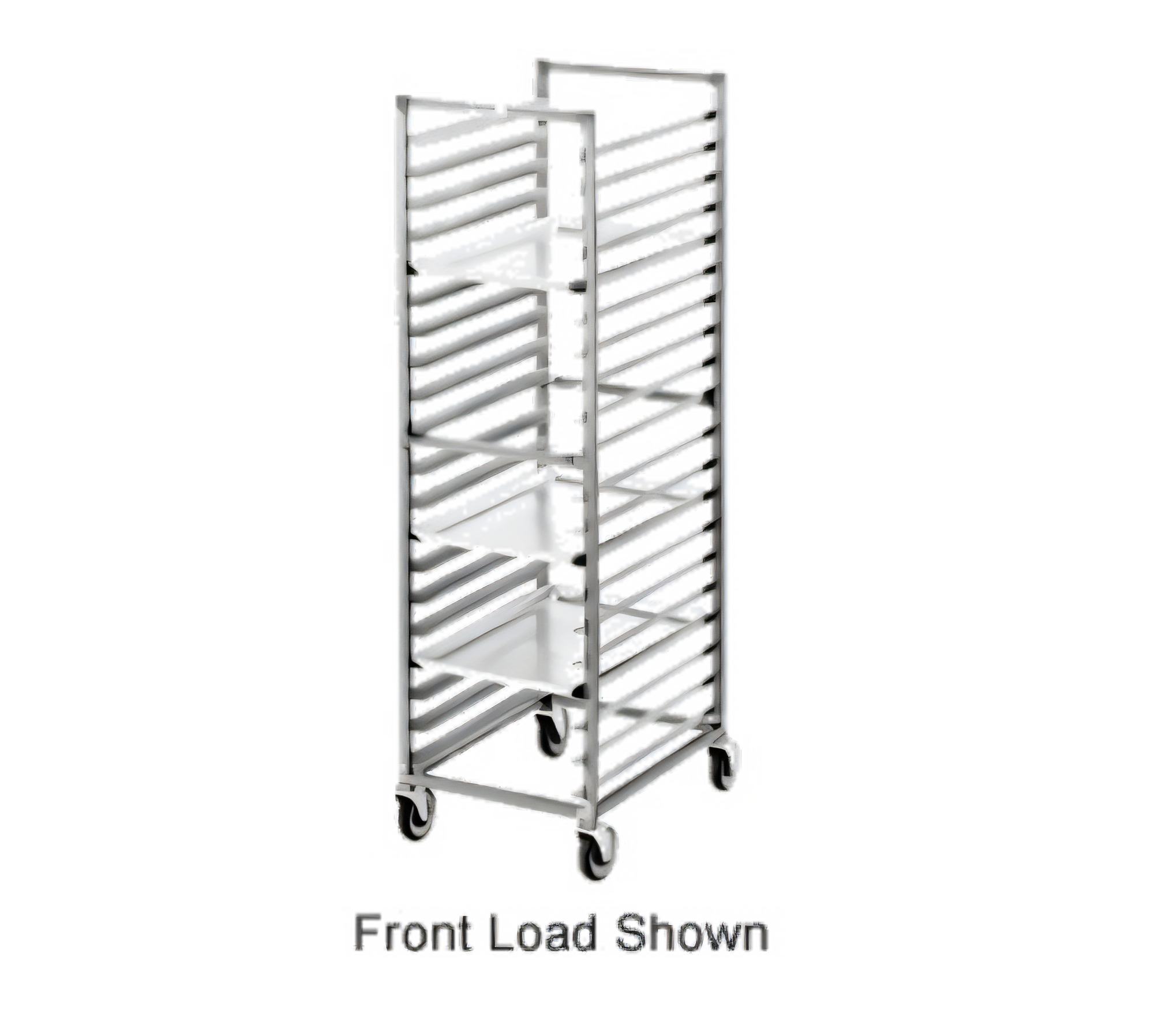

Channel Manufacturing 415S Pan Racks
Product Description
The Channel CSS45PU bun pan rack is designed for the demands of commercial kitchens. With a 27-pan capacity and 2-inch spacing, it can accommodate a large volume of baked goods. Its all-welded, NSF-listed construction ensures durability and sanitation. The one-piece, 18-gauge 304 stainless steel frame provides exceptional strength, while the side-load design allows for quicker access and more efficient workflow. This model may weigh up to 50 pounds more when palletized for freight shipping.
Why You'll Love It:
- The side-load configuration keeps aisles clear and allows for quick pan changes.
- It can hold (27) 18" x 26" pans on 2" center-to-center runners, perfect for cooling, staging, or storage.
- The all-welded 18-gauge 304 stainless steel construction has no loose fasteners or crevices for food to accumulate.
- The 1" x 1-1/2" angle runners are heli-arc welded to the frame, providing superior rigidity.
- It has (4) 5" non-marking swivel stem casters (full swivel) for tight-turn maneuverability.
- It is NSF listed for regulated foodservice operations and proudly Made in the USA.
Ideal For:
- Bakeries and commissaries: Suitable for cooling, proofing, transporting, and storing sheet-pan food items in these settings.
- Restaurants and ghost kitchens: Ideal for handling the cooling, proofing, transport, and dry storage of sheet-pan items in these food service environments.
- Institutional cafeterias and catering hubs: Designed to accommodate the cooling, proofing, transport, and dry storage needs of sheet-pan food items in these larger-scale food service operations.
- Cooling, proofing, transport, and dry storage of sheet-pan food items: This product is well-suited for these specific handling and storage requirements across various food service establishments.
Product Specs
| Specification | Value |
|---|---|
| Manufacturer | Channel Manufacturing |
| Model | CSS45PU (Stainless Series) |
| Loading Style | Side load |
| Pan Capacity | 27 pans – 18" × 26" |
| Runner Spacing | 2" |
| Overall Dimensions (W × D × H) | 28.5" × 18" × 64" |
| Construction | All-welded 18-ga 304 stainless steel |
| Casters | (4) 5" swivel, non-marking, stem-mounted |
| Item Weight | 65 lb (rack only) |
| Certifications | NSF, Made in USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Channel Manufacturing |
| Certifications | NSF, Made in USA |
| Height | 61" - 66" |
| Width | 28.5in |
| Depth | 18.0in |
| Shipping Weight | 65.0lbs |
| Pan Capacity | 26 - 30 |
| Sides | open sides |
| Ships | assembled / welded |
| Centers | 2 to 2-1/2" centers |
| Loading | side loading |
| Top | open top |
| Construction | stainless steel |
| Specifications | Bun Pan Rack, All-Welded, Stainless Series, 28.5"W x 18"D x 64"H, Stainless Steel Construction, Side Load, 2" Angle Spacing, (27) 18" x 26" pans, 5" Swivel Stem Casters model # CSS45PU, Made in USA, NSF, 65lbs. (ITEM WEIGHT ONLY), weight does not include 50 lbs. for pallet weight |
