Description

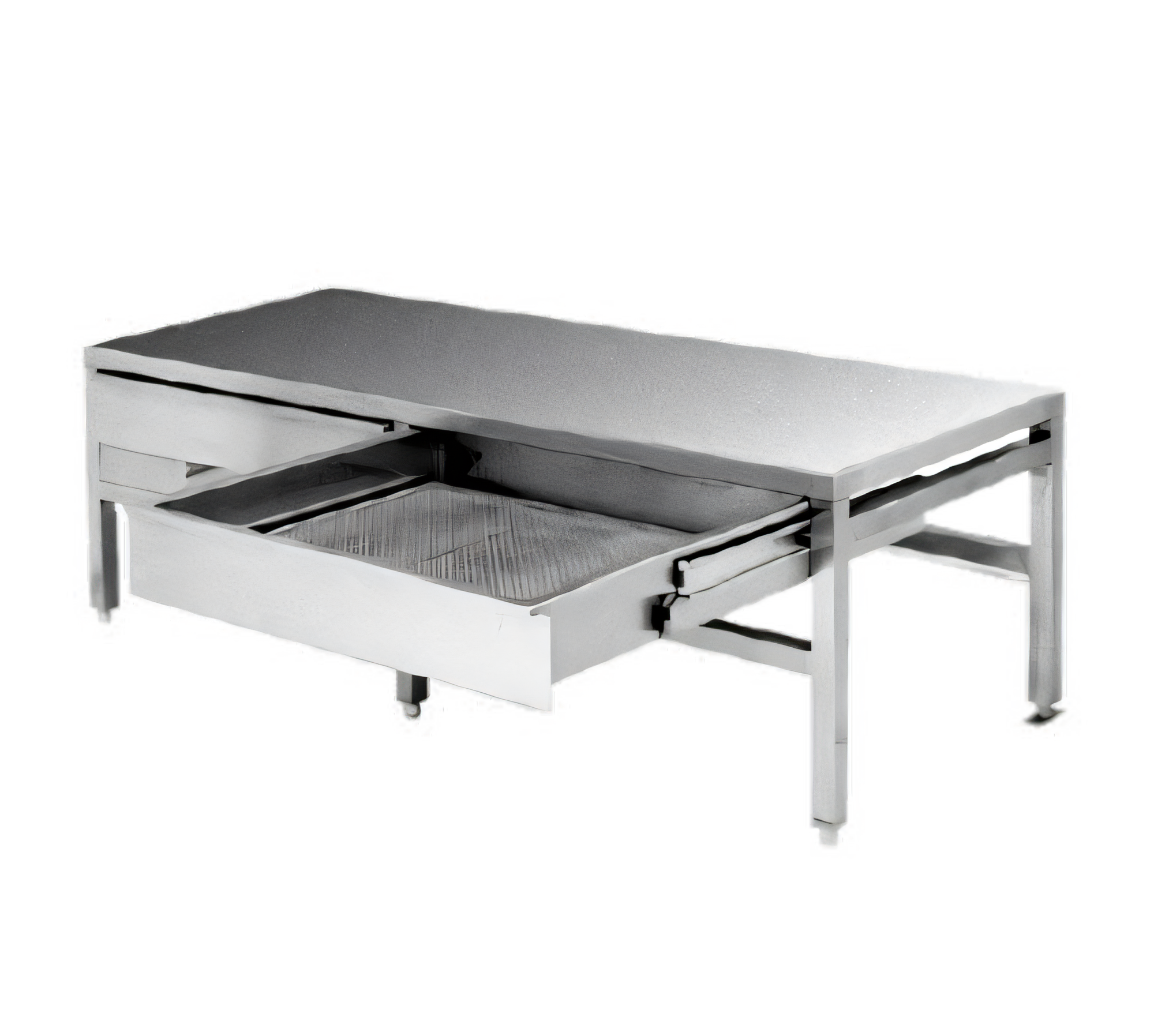

Cleveland Range ST55 Equipment Stands & Utility Carts
Product Description
Open-base stand with sliding drain drawer and splash screen, designed to accommodate two SET10 or two SET15 countertop steamers. The ST-55 stand features heavy-gauge, all-stainless steel construction, providing a rock-solid foundation for your Cleveland SET10 or SET15 units. The built-in, removable drain drawer can be hard-piped directly to a floor drain, ensuring a cleaner, safer, and more efficient cooking line.
Why you'll love it:
- The 55-inch wide top is designed to accommodate two SET10 or two SET15 units side-by-side, providing a purpose-built and efficient footprint.
- The all-stainless steel frame and top, made with 1 ¼ inch square tubing, are resistant to corrosion and daily wear, making it ideal for high-humidity kitchen environments.
- The integrated drain solution includes a sliding drawer with a splash shield to capture condensate, and a 1 ¼ inch NPT nipple that allows for hard-piping to a floor drain for continuous operation.
- The four adjustable feet, with the rear feet pre-flanged for permanent floor bolting, make it easy to level and secure the unit.
- The open base design, with no undershelf, helps to prevent the trapping of food debris, enabling fast and NSF-friendly cleanup.
Installation pointers:
- Make sure there is at least 2 ½ inches of clearance behind the equipment when it is equipped with a SET10 or SET15 model.
- Install a floor drain directly beneath or behind the stand to allow for hard-piping the 1 ¼ inch NPT connection.
- Secure the rear flanged feet of the equipment to the floor to ensure maximum stability.
- Comply with all local plumbing and health codes. You can also request a factory-authorized start-up service through Cleveland.
Product Specs
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Model / Part # | ST-55 |
| Compatible equipment | Two SET10 (single units) or Two SET15 (single units) |
| Overall dimensions | 55 in. W × 20 in. D × 18 in. H |
| Construction | All stainless steel, 1 ¼ in. square tubing frame & top |
| Drain connection | 1 ¼ in. NPT nipple on drain drawer (hard-piping ready) |
| Feet | 4 adjustable feet (rear feet flanged for bolting) |
| Included | Sliding drain drawer with splash screen & pan support |
| Optional accessory | Direct Steam Adaptor Top (Part #AK) – Not required for SET models |
| Warranty | 1-year limited parts & labor (standard Cleveland Range warranty) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Height | 18" high |
| Width | 54.75in |
| Depth | 20.75in |
| Shipping Weight | 70.0lbs |
| Top Construction | stainless steel top |
| Width (side - side) | 55" - 60" wide |
| Depth (front - back) | 20" deep |
| Base Construction | stainless steel base |
| Base Type | open base |
| Specifications | Equipment Stand, open base with sliding drain drawer & splash screen, for two SET10's or two SET15's, 55" x 20", 18" high, stainless steel top and legs, allows unit to be hard piped to a floor drain |
