Description

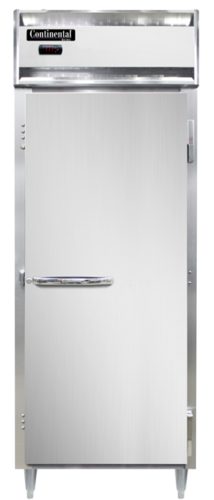

Continental Refrigerator DL1WE-SS-PT Designer Line Heated Cabinets & Holding Shelves
Product Description
Continental Refrigerator's premium Designer Line pass-thru warmer, model DL1WE-SS-PT, keeps plated meals, trays, and pans at safe serving temperatures. This 22 cu ft (623 L) cabinet features a self-contained heating system, all-stainless construction, and front-to-back access, making it a dependable workhorse for kitchens that demand durability, food-safe holding, and fast workflow on both sides of the line. Installation requires a licensed electrician and at least 12" clearance above and 3" on sides & rear for safe operation and service access.
Highlights:
- Heats from 90 °F to 180 °F (32 °C to 82 °C) with even, fan-assisted airflow for consistent heating.
- Pass-through design with two self-closing doors allows for easy loading and serving.
- All stainless-steel exterior and interior for maximum hygiene and longevity.
- Electronic microprocessor controller with bright digital display and high-low temperature alarm for precise temperature control.
- 3 heavy-duty chrome shelves on adjustable pilaster strips (up to 19 tray slides) for flexible storage.
- 3-inch non-CFC polyurethane insulation locks in heat and reduces energy use.
- Magnetic Santoprene™ snap-in door gaskets and cylinder locks on each door for a tight seal.
- Adjustable 6-inch stainless-steel legs for easy floor cleaning and leveling.
- cETLus and NSF certified for commercial foodservice use.
Performance & Controls:
- The top-mounted heating plenum "plug" ensures consistent airflow throughout the cabinet.
- The self-contained 1500 W system means no remote heat source is required.
- The built-in high-low temperature alarm helps maintain HACCP compliance.
- Interior lighting is available as an optional factory-installed feature (additional charge applies).
Rugged Cabinet Construction:
- The cabinet features smooth chrome handles and lift-off cam hinges for easy access and quick service.
- Stainless-steel strip heaters in the cabinet base help minimize condensation.
- The doors are field-reversible and lockable, with a full-width 21 ⅞″ (556 mm) clear opening.
- The cabinet is shipped on a sturdy skid, and optional casters, extra shelves, or universal pan slides are available.
Product Specs
| Specification | Value |
|---|---|
| Capacity | 22 cu ft / 623 L |
| Shelf Area | 22.2 sq ft / 2.1 m² |
| Shelves Included | 3 chrome-plated wire (adjustable) |
| Door Configuration | 2 hinged, self-closing (pass-thru) |
| Temperature Range | 90 °F – 180 °F (32 °C – 82 °C) |
| Exterior Dimensions (W × D × H) | 28 ½″ × 38 ¾″ × 83 ¼″ (724 × 984 × 2115 mm)height includes 6″ legs |
| Electrical | 208-230 V / 60 Hz / 1-phase, 7.2 A, 1500 W, 3-wire hard-wired (no cord/plug) |
| Shipping Weight | 336 lb / 152 kg |
| Certifications | cETLus, NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | Continental Refrigerator |
| Brand Name | Designer Line |
| Certifications | NSF, cETLus |
| Height | 83.25in |
| Width | 28.5in |
| Depth | 35.38in |
| Shipping Weight | 380.0lbs |
| Doors | hinged solid |
| Size | 1 section |
| Depth (front - back) | standard |
| Exterior Finish | all stainless steel exterior |
| Thermometer | exterior digital |
| Interior Finish | stainless steel interior |
| Interior configuration | shelves |
| Specifications | Designer Line Heated Cabinet, extra wide pass-thru, one-section, 22 cu. ft. capacity, (3) shelves, stainless steel exterior & interior, standard depth, hinged doors, electronic control with digital display, hi-low alarm, cETLus, NSF |
